RPB RADEX 08-200 Instruction Manual

Carbon monoxide monitor
Hide thumbs

Advertisement

Quick Links

Download this manual
INSTRUCTION
MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the RADEX 08-200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RPB RADEX 08-200

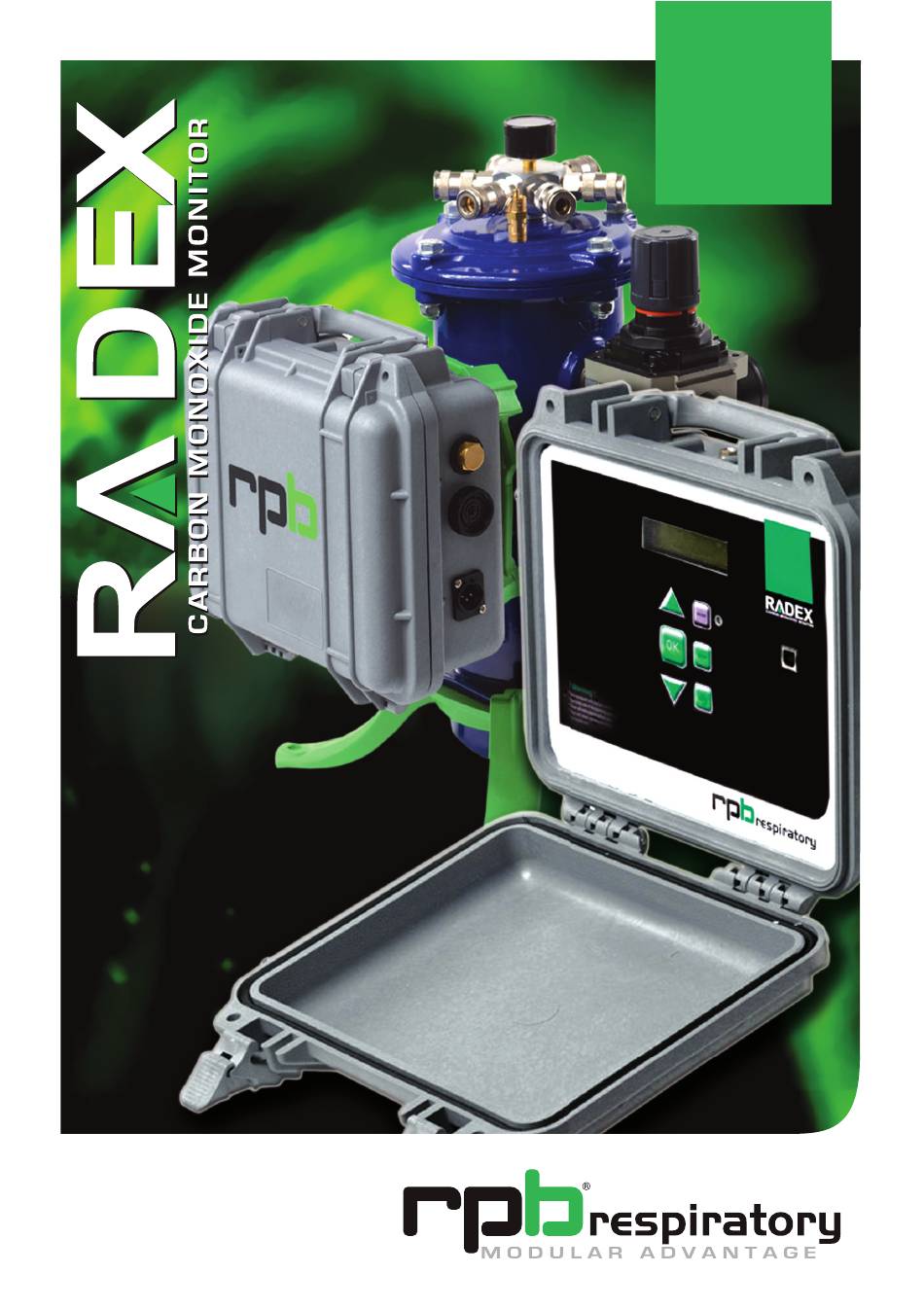

  • Page 1 INSTRUCTION MANUAL...

  • Page 2: Table Of Contents

    INDEX Read all instructions & warnings before using this product. Keep this manual for future reference. Introduction Warnings Setup Operation PC Application Calibration Maintenance & Service Parts & Accessories RPB Respiratory T: 1-866-494-4599 F: 1-866-494-4509 E: info@rpbrespiratory.com www.rpbrespiratory.com...

  • Page 3: Introduction

    29CFR 1910.134 (d) (2) (ii) for carbon monoxide monitoring. RPB Respiratory provides a complete calibration and maintenance service through its service centers. In some locations RPB has units available for rental while your unit is being serviced. Contact our Customer Service Department on: 1-866-494-4599 or...

  • Page 4: Warnings

    RPB Respiratory products, including purposes that the products are not designed for. RPB Respiratory is not liable for damage, loss or expense resulting from the failure to give advice or information or the giving of incorrect advice or information, whether or not due to RPB Respiratory’s negligence or that of its employees, agents or...

  • Page 5: Setup

    Read all instructions and warnings that are included with this unit. In the instruction pack is a CD loaded with the RPB program which will provide you with the ability to view the data records that are stored in the CO monitor.
  • Page 6 :$55$17< 5(*,675$7,21 &RQW )LJ  )LJ  +DYLQJ ILOOHG RXW DOO WKH UHTXLUHG ILHOGV 2QFH \RX KDYH UHJLVWHUHG \RXU PRQLWRU \RX FDQ VHW WKH XQLWV FORFN WR \RXU 3& E\ FOLFN WKH 5(*,67(5 9,$ (0$,/ EXWWRQ 7KLV ZLOO FRPSOHWH WKH UHJLVWUDWLRQ RI WKH FOLFNLQJ RQ ´722/6µ 7KHQ FOLFN RQ ´7LPHµ...
  • Page 7 WALL MOUNTING Fig. 1.5 Position monitor case against wall bracket then turn clockwise. The case will click into position. AIR CONNECTIONS Fig. 1.6 Fig. 1.7 Connect the air supply hose to the air inlet Then connect the air supply hose to a on the monitor.
  • Page 8 AIR CONNECTIONS (cont.) POWER CONNECTIONS Filter Fig. 1.8 Fig. 1.9 The air inlet is fitted with a filter which should Connect the plug from the power adaptor to be removed and cleaned on a regular basis. the power input port on the CO Monitor. Then connect power adaptor or battery clips to power source.

  • Page 9: Operation

    OPERATION The Radex CO monitor has four modes of operation. OPERATING, where data is logged and alarms are triggered by excess CO, low power and faults. SETUP, which is entered by pressing the SETUP button. DATA RETRIEVAL, which is only possible when the unit is connected to a PC and a connection is opened.
  • Page 10 If the gas concentration rises by more than 2ppm while the alarm is silenced, the alarm will sound, regardless of timeout. The user can again silence the alarm; however, it will be subject to the 30 second timeout. All alarms and snooze modes are recorded by the data logger built into the unit.
  • Page 11 FAULTS THAT DON'T INHIBIT OPERATION Battery low or Battery Failure – an alarm will sound to alert users of the fault • Temperature outside operating range • BATTERY CHARGING The Radex CO Monitor is equipped with a rechargeable battery and onboard battery charger which is operational when the unit is connected to a power supply.

  • Page 12: Pc Application

    RPB logo comes up, and then the main window opens. REAL TIME INFORMATION With the RPB Radex CO Monitor you can access real time information to see what is happening in your plant right up to the minute in a couple of simple steps.
  • Page 13 Connect your PC to the Radex CO Monitor using the USB cable, start up the RPB CO Monitor program. When the main screen displays as Fig 2.3, select the COM port from the drop down list as Fig 2.4 and click on the COM port of your choice.
  • Page 14 5.3 RETRIEVING DATA RECORDS Down loading a Data Record The RPB Radex CO Monitor offers the ability to download and save data records for traceability. To download Data records from a Radex CO Monitor, Select and open a COM port using the drop-down menu as Fig 2.4 then click on the OPEN COM button at the bottom-right of the main window Fig 2.4.
  • Page 15 Fig. 3.2 Fig. 3.3 Click on your choice of file then a SAVE AS The “Save Log Options” window will display and you have the option to choose window will display where you can have the opportunity to rename the file and save in between saving the entire log or alarms the desired location.

  • Page 16: Calibration

    CALIBRATION The Radex CO Monitor should be checked for accuracy on a monthly basis, this can be done using the Zero Air and 20ppm CO calibration kit, p/n: 08-228. SETUP CHECK Fig. 3.4 Fig. 3.5 To begin the Calibration press the CAL Once CAL CHECK has been pressed, the CHECK button on the monitor panel.
  • Page 17 Fig. 3.8 Fig. 3.9 Once this is completed the screen will At this point the zero air gas is to be instruct you to connect the Carbon Monoxide removed and the 20ppm Carbon Monoxide Gas (20ppm for USA, 10ppm for Canada, gas is to be connected to the air inlet port Australia and Europe).

  • Page 18: Maintenance & Service

    MAINTENANCE & SERVICE To maintain the warranty, the Radex CO Monitor should be calibrated by an authorized service center every 6 months, a calibration reminder will display on the screen. The CO Sensor has a lifespan of 24months a service reminder will display on the screen and the sensor can only be replaced by an authorized service center as the sensor has to be set to the factory calibration in order to provide accurate gas detection.

  • Page 19: Parts & Accessories

    PARTS & ACCESSORIES Item No. Part No. Description CO Monitor 08-200 Power Adaptor Pack - USA 08-221 Power Adaptor Pack - AU/NZ 08-222 Power Adaptor Pack - UK 08-223 Power Adaptor Pack - Europe 08-224 USB Cable 08-225 CO Sensor and Calibration 08-226 12 Volt Cable with Battery Clips 08-227...
  • Page 20 ',' <28 .12: 27+(5 352'8&76 :H FDQ DOVR VXSSO\ \RX ZLWK WKH IROORZLQJ 129$  %/$67,1* +(/0(7 7KH 129$  KDV EHHQ GHVLJQHG IRU EODVWLQJ SURIHVVLRQDOV 7KH 129$  LV WKH PRVW DGYDQFHG DEUDVLYH EODVWLQJ KHOPHW DYDLODEOH ZLWK IXOO\ SDGGHG SLOORZ IRDP OLQHU IRU H[WUD FRPIRUW DQG QRLVH DWWHQXDWLRQ ZLGH DQJOH YLVLRQ HYHQ DLU GLVWULEXWLRQ DVVXUHV D SOHDVDQW ZRUNLQJ HQYLURQPHQW RSWLRQDO FOLPDWH FRQWURO GHYLFHV 7KLQJV FDQQRW JHW PXFK EHWWHU...
