Siefken MAGNUM Series User Manual

Siefken MAGNUM Series User Manual

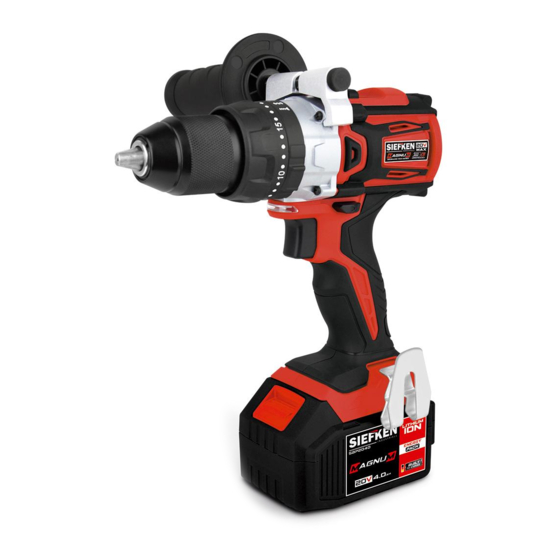

20v - li - ion battery brushless cordless impact drill

Advertisement

Quick Links

User´s manual
20V - Li - ion BATTERY
BRUSHLESS CORDLESS IMPACT DRILL
SBS001
Operating Instructions
Please read the operation instructions meticulously and pay particular attention to the safety instructions.

Advertisement

loading
Need help?

Need help?

Do you have a question about the MAGNUM Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Siefken MAGNUM Series

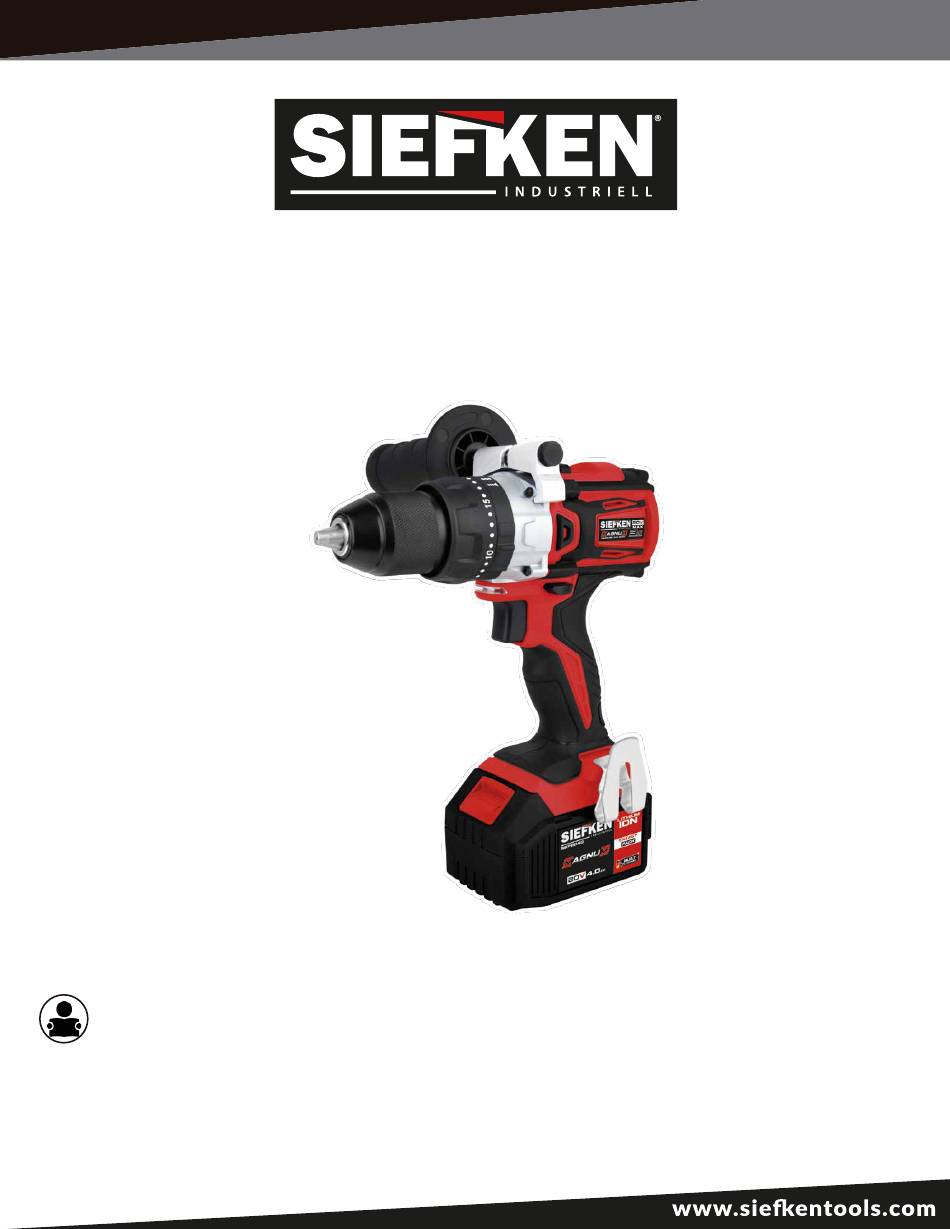

  • Page 1 User´s manual 20V - Li - ion BATTERY BRUSHLESS CORDLESS IMPACT DRILL SBS001 Operating Instructions Please read the operation instructions meticulously and pay particular attention to the safety instructions.
  • Page 2 BRUSHLESS TECH series...
  • Page 3: Table Of Contents

    BRUSHLESS TECH series BRUSHLESS CORDLESS IMPACT DRILL CONTENT Safety instructions Speci cations Features Operation Maintenance Warranty Care for the environment! It must not be disposed of with household waste! This product contains electrical or electronic components that must be recycled. Take the product for recycling at the sites assigned to your area, Ejm: the local recycling station.
  • Page 4 BRUSHLESS TECH series BRUSHLESS CORDLESS IMPACT DRILL 1.GENERAL SAFETY RULES FOR ALL BATTERY OPERATED TOOLS 1.1 WARNING! READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed below, may result in electric shock, re and/or serious personal injury. 1.2 Work Area 1.2.1 Keep your work area clean and well lit.
  • Page 5 BRUSHLESS TECH series BRUSHLESS CORDLESS IMPACT DRILL 1.4 Personal Safety 1.4.1 Stay alert, watch what you are doing, and use common sense when operating a power tool. Do not use tool while tired or under the in uence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury.
  • Page 6: Safety Instructions

    BRUSHLESS TECH series BRUSHLESS CORDLESS IMPACT DRILL 1.5.4 Disconnect battery pack from tool or place the switch in the locked or o position before making any adjustments, changing accessories, or storing the tool. Such preventive safety me- asures reduce the risk of starting the tool accidentally. 1.5.5 Store idle tools out of reach of children and other untrained persons.
  • Page 7 BRUSHLESS TECH series BRUSHLESS CORDLESS IMPACT DRILL For safe operations: 1. Keep work area clean - Cluttered areas and benches invite injuries. 2. Consider work area environment - Don't expose power tools to rain. Don't use power tools in damp or wet locations. Keep work area well lit.
  • Page 8 BRUSHLESS TECH series BRUSHLESS CORDLESS IMPACT DRILL 10. Don't abuse cord - Never carry tool by cord or yank it to disconnect it from receptacle. Keep cord from heat, oil and sharp edges. 11. Secure work - Use clamps or a vise to hold work it's safer than using your hand and it trees both hands to operate tout.
  • Page 9 BRUSHLESS TECH series BRUSHLESS CORDLESS IMPACT DRILL 19. Check damaged parts - Before further use of the tool, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and per form its intended function. Check for alignment of moving parts, binding of moving parts,breakage of parts, mounting, and any other conditions that may a ect its operation.
  • Page 10: Speci Cations

    BRUSHLESS TECH series BRUSHLESS CORDLESS IMPACT DRILL Speci cations Voltaje Motor Brushless Tech motor Gears 2 Mechanics No load speed Speed 1 O-500RPM Speed 2 0-1800RPM Impact force 0-8.000/0-28.800BPM Max. torque 50 Nm Torque settings 20 + Max. capacity Steel 13mm Concrete 13mm...
  • Page 11: Features

    BRUSHLESS TECH series BRUSHLESS CORDLESS IMPACT DRILL Features Side handle Metal chuck Torque settings Handle Battery input Belt Holder ADJUSTABLE TORQUE The drill has a 20+3 position clutch. TWO-SPEED GEAR BOX The two-speed gear box is designed for drilling or driving at LOW or HIGH speeds. A slide switch is located on top of your drill for selecting the appropriate speed.
  • Page 12: Operation

    BRUSHLESS TECH series BRUSHLESS CORDLESS IMPACT DRILL OPERATION CHARGING THE BATTERY WARNING: The charger and battery pack are speci cally designed to work together so do not attempt to use any other devices. Never insert or allow metallic objects into your charger or battery pack connec- tions because an electrical failure and hazard will occur.
  • Page 13 BRUSHLESS TECH series BRUSHLESS CORDLESS IMPACT DRILL OVER CURRENT PROTECTION Should the battery be overloaded and the maximum current draw be exceeded, the battery will temporarily stop working to protect the internal components. The battery will resume to normal operation once the excessive current draw has returned to normal safe level. This may take a few seconds.
  • Page 14 BRUSHLESS TECH series BRUSHLESS CORDLESS IMPACT DRILL TRIGGER SWITCH & REVERSING BUTTON The drill is turned ON and OFF by pulling and releasing the trigger switch (1). The farther the trigger is depressed, the higher the speed of the drill. A forward/reverse control button determines the direction of the tool and also serves as a lock o button.
  • Page 15 BRUSHLESS TECH series BRUSHLESS CORDLESS IMPACT DRILL Perforación en metal; Utilice un broca de acero al perforar en metal NOTA: Asegúrese de que la broca esta siempre fría, use un líquido no in amable. 1. Sujete la pieza de trabajo. La pieza de trabajo debe quedar plana sobre el banco de trabajo. 2.
  • Page 16 BRUSHLESS TECH series BRUSHLESS CORDLESS IMPACT DRILL TWO - SPEED GEAR BOX SWITCH The drill has a two-speed gear box switch designed for drilling or driving at LOW or HIGH speeds. A slide switch is located on the top of the drill to select either LOW or HIGH speed. When using drill in the LOW speed range, the speed will decrease and the drill will have more power and torque.
  • Page 17 BRUSHLESS TECH series BRUSHLESS CORDLESS IMPACT DRILL This tool is tted with a torque adjustment ring to select the operating mode and to set the torque for tigh- tening screws. Large screws and hard workpiece materials require a higher torque setting than small screws and soft workpiece materials.
  • Page 18 BRUSHLESS TECH series BRUSHLESS CORDLESS IMPACT DRILL Select the function Driving Turn the selector until the arrow on the appliance points to Turn the Torque adjustment ring from (1) to (20) until the desired result is obtained. Drilling Turn the selector until the arrow on the appliance points to Drilling with Impact Function Turn the selector until the arrow on the appliance points to DRILLING...
  • Page 19: Maintenance

    BRUSHLESS TECH series BRUSHLESS CORDLESS IMPACT DRILL DRILLING IN WOOD For maximum performance, use high speed steel or brad point bits for wood drilling. 1. Begin drilling at a very low speed to prevent the bit from slipping o the starting point. 2.
  • Page 20 BRUSHLESS TECH series BRUSHLESS CORDLESS IMPACT DRILL Occasionally you may see sparks through the ventilation slots. This is normal and will not damage your power tool. Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents.
  • Page 21: Warranty

    TOTAL SATISFACTION If the siefken tool do not satisfies the need in work, during the 30 days after your purchase you will be able to change your power tool with on of the same reference but with more capacity just by paying the difference.
