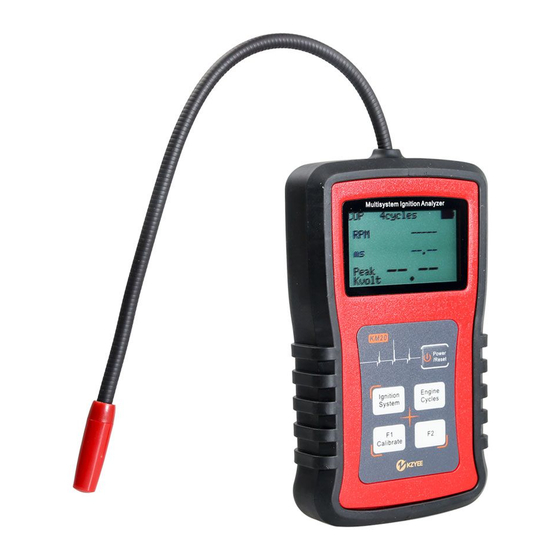

Summary of Contents for Kzyee KM20
-
Page 2: Table Of Contents
Multisystem Ignition Analyzer Table of Contents 1. Important Safety Information…………………..……………………………………..2 2. Technical Specifications………………..……………………………………………..2 2.1 General specifications……………………………………………………………..2 2.2 Electrical specifications………………………………………………………………2 3. Operating Instruction…………………………..……………………………………..3 3.1 Instrument description…………………………..……………………………..3 3.2 LCD Display………………………………………………………………………...4 3.3 Buttons description and operation………………………………………………….5 3.4 Measurement procedures ……………………………………………………..7 3.5 Additional functions……………………………………………………………..11 4. -
Page 3: Important Safety Information
Multisystem Ignition Analyzer 1. IMPORTANT SAFETY INFORMATION ◆ This instrument can be used indoor, the temperature should between 32℉ and 104℉( 0℃ and 40℃), altitudes up to 6500 ft ( 2,000 meters ). ◆In order to use the instrument safely, please follow all the safety and operating instructions of this manual to operate. -
Page 4: Operating Instruction
Multisystem Ignition Analyzer maximum value. Measurement Accuracy/ Function Input Characteristics Range Repetitivity 200 to 19999 RPM 2 Accuracy: Input Impedance: and 4 cycles and DIS 0.5%± 1 LSD 100KΩ+ 1.5 nF Repeatability: (Minimum). Spark KV 0 to 50 Kv 3%± 1 LSD Input Protection: Spark burn Accuracy:... -
Page 5: Lcd Display
Multisystem Ignition Analyzer 3.2 LCD Display 3.2.1 LCD Display description Fig.2-LCD Display 3.2.2 ‘ ’ Low battery indicator The low battery indicator reminds that the battery voltage is below the recommended minimum value, it need to be replaced a new battery. Notes: ◆... -
Page 6: Buttons Description And Operation
Multisystem Ignition Analyzer reading, RPM or the spark burn time with the selected measurement units and/ or functions. 3.2.8 Main display Press the “F1/Calibrate” button, the main display can be set to show the engine RPM, spark KVolt or spark burn time. 3.2.9 Functions and measurement units Displays the measurement units and / or the functions of the main display. - Page 7 Multisystem Ignition Analyzer display. ◆ SPW (Spark Plug Wire): This setting apply to all the ignition systems equipped with high voltage spark plug wire ( i.e.:Conventional distributor, magneto, distributorless or waste spark ignition systems ). ◆ COP (Coil On Plug): This setting apply to the ignition systems which the ignition coil is mounted near the spark plug or on top of the spark plug.
-
Page 8: Measurement Procedures
Multisystem Ignition Analyzer 3.3.6 Main and Secondary Functions display combinations Fig.3- Examples of Main and Secondary Functions combinations 3.4 Measurement Procedures CAUTION To avoid personal injury or damage to the instrument, please check the spark plug wire, distributor cap, ignition coil, ignition module and other ignition system components carefully for damage or leaks. - Page 9 Multisystem Ignition Analyzer 3.4.1 Instrument measuring functions There is the special dedicated mode for the ignition technology of diagnosing and troubleshooting the Coil on Plug and Coil near Plug, and using the spark plug wire system. These dedicated modes compensate the difference in signal strength and waveform patterns between ignition systems.
- Page 10 Multisystem Ignition Analyzer 8- Place the capacitive pick-up over the ignition module, read the measurements. Fig. 4-Capacitive pickup on coil on plug module Important: ◆ In some engines, the ignition modules are close to each other, this may cause the capacitive pick-up of the instrument receive signals from nearby modules, it may cause false readings.
- Page 11 Multisystem Ignition Analyzer 3- Press the “ Engine Cycles” button repeatedly to select the number of cycles for the engine under testing, until the display shows the correct setting. 4- Select the measurement to show on the display: RPM, spark burn time or spark KVolt.
-
Page 12: Additional Functions
Multisystem Ignition Analyzer or “F1 /Calibrate” (Cylinders Decrease ) button to adjust the scale value. 3.5 Additional functions 3.5.1 Minimum and Maximum functions (For COP and SPW modes) This instrument remains the record of the minimum and maximum readings of the function currently selected. -
Page 13: Application Information
Multisystem Ignition Analyzer about 3 minutes of inactivity. Inactivity means: ◆ No buttons are pressed ◆ No measurements are taken 4. APPLICATION INFORMATION 4.1 Taking measurements 1- According to the instructions in “3.4 Measurement Procedures”, select the ignition system to measure. 2- Observe the spark burn time and spark KVolt reading of the display. -
Page 14: Common Causes Of Short Burn Time Readings
Multisystem Ignition Analyzer ◆ Dirty or the damaged spark plug insulator or boot allows the spark “tracking” across the insulator. ◆ Rich mixture. Most likely due to the leaking fuel injector, or the faulty oxygen sensor. ◆ Low cylinder compression pressure. It may be caused by the leaking valves, worn piston ring, blown cylinder head gasket, etc. -
Page 15: Maintenance
Multisystem Ignition Analyzer 5. MAINTENANCE 5.1 Battery replacement Fig. 8 - Battery replacement To replace the internal battery: 1- As show in Fig.8, find out the battery compartment at the back of the instrument. 2- Open the battery cover. 3- Pay attention to the polarity of the battery connectors, connect the new battery. 4- Close the battery cover. - Page 16 Limited 90 Day Warranty KZYEE makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
