Multifinity Explorer™
Instruction Manual
Multifinity Explorer™ 22869 July 2019
Copyright ROMPA®Ltd

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Snoezelen Multifinity Explorer and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Rompa Snoezelen Multifinity Explorer

  • Page 1 Multifinity Explorer™ Instruction Manual Multifinity Explorer™ 22869 July 2019 Copyright ROMPA®Ltd...
  • Page 3: Table Of Contents

    Contents Panel Overview Colour Description Technical Specification Dimensions Contents Compatible Rompa® Products Operation Modes Touch Screen Illuminated Push Buttons External Switches Microphone Input Shapes, Patterns and Colours Rompa® Wireless Operation Installation Safety Care and Maintenance Troubleshooting...
  • Page 4: Panel Overview

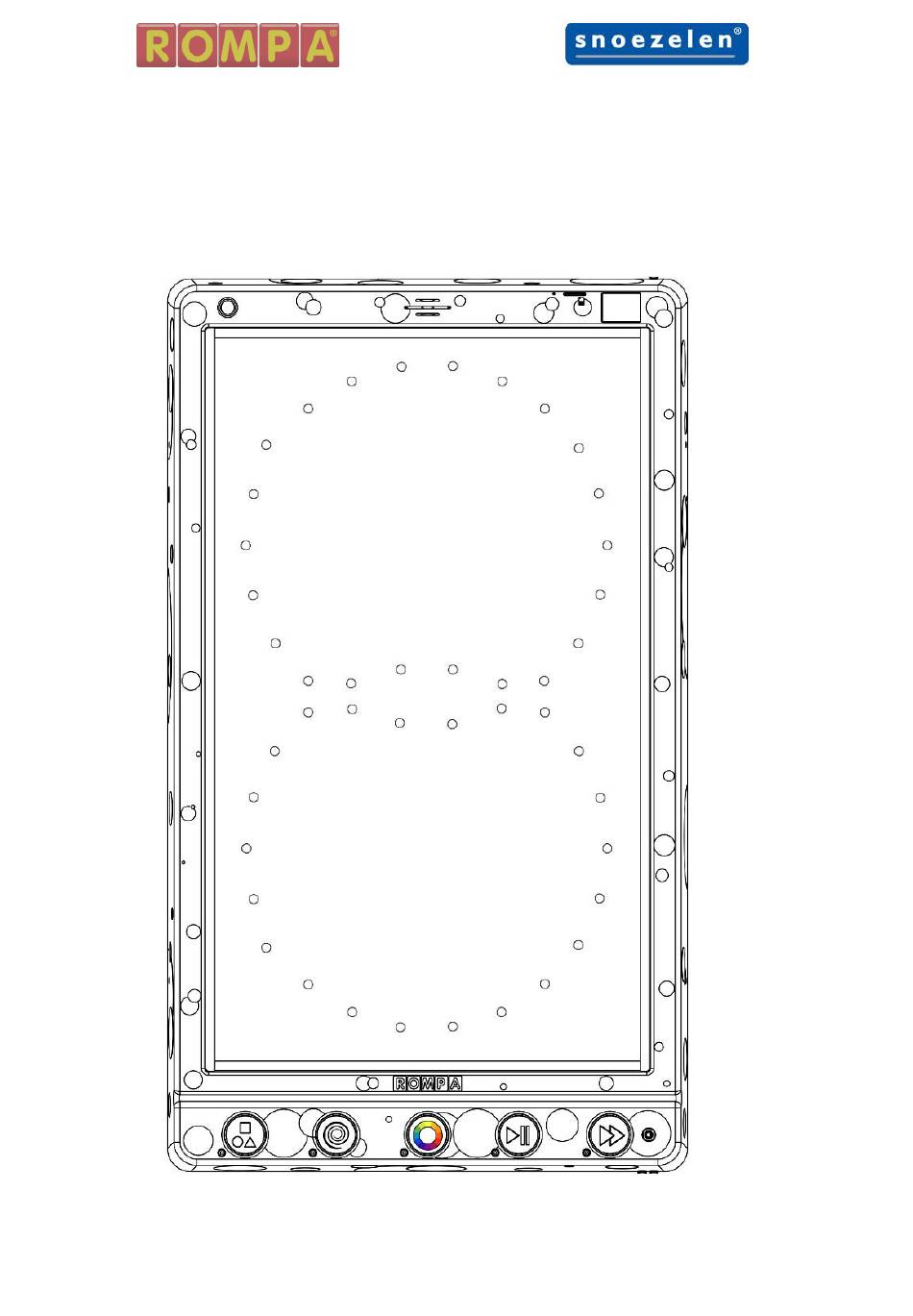

    Panel Overview (Front)
  • Page 5 Panel Overview (Back)
  • Page 6: Colour

    Colour The Panel is available in 4 colours: Black, White, Cream and Blue Description Create visually stunning infinity effects by selecting from a number of shapes, colours, patterns and speeds. The panel is packed with sound effects and music which makes for a truly exciting multi-sensory experience.
  • Page 7: Dimensions

    Dimensions (All dimensions in mm) Contents 1x Multifinity Explorer™ 2x Wall Mounting Bracket 4x M4 Screws (screwed on sides) 1x UK Mains Lead 1x US Mains Lead 1x EU Mains Lead...
  • Page 8: Compatible Rompa® Products

    Compatible Rompa® Products 20848 Sensory Magic® 21098 Sensory Magic Portable® 19847 Deluxe 8 Colour Wirefree Controller 21006 8 Colour Wirefree Switch 19939 WiFi Interactive Carpet Switch Set 18870 Talking Cube 20402 Mini Talking Cube 21917 WiFi Microphone 22871 Colour Command Centre™...
  • Page 9: Operation

    Operation Modes The mode dictates how the panel behaves. The Multifinity Explorer™ has 3 modes which can be selected via the touchscreen and an additional mode when one microphone is plugged into the ¼”/6.35mm microphone input Mode 1: Interactive The panel does not change current shape, pattern, colour or speed unless told to do so via the illuminated push buttons.
  • Page 10: Touch Screen

    Touch Screen The touch screen is intended for the supervisor of the session not the primary user of the panel. The touch screen allows you to control in detail how the panel behaves as well as view statistics of panel usage. Upon booting the panel up it will revert to its default settings: Mode 1: Interactive Volume: 2...
  • Page 11 Volume Pressing the ‘+’ will increase the volume and pressing ‘-‘ will reduce the volume. Press the Red forward or back buttons to cycle through the other menu options. Sound Effects Pressing the light green sound effect button will cycle the sound effects on or off. Sound effect refers to the sounds made when the user activates the illuminated push buttons.
  • Page 12 Wireless Pressing the purple Wireless button will turn the panel Wireless on or off. With Wireless turned on the panel will respond to other Rompa® compatible wireless products. With wireless turned off it will ignore Rompa® compatible wireless products. (see...
  • Page 13: Illuminated Push Buttons

    Illuminated Push Buttons The Multifinity Explorer™ has 5 illuminated push buttons so the user can control the visual and audio effects the panel produces. When pressed each button will flash and a unique sound effect will be triggered. Sound effects can be turned off via the touch screen. Illuminated buttons can also be locked via the touch screen if required.
  • Page 14: External Switches

    External Switches The panel has 5 external switch inputs each located underneath their associated illuminated push button. To connect the external switch simply plug into the ¼”/6.35mm jack and remove when finished (external switches without a ¼”/6.35mm jack may need an adapter fitting). Microphone Input The panel has 1 microphone input.
  • Page 15: Shapes, Patterns And Colours

    Shapes, Patterns and Colours Shape The panel has 8 shapes which can be selected via the ‘Shape’ illuminated push button or an external switch plugged into the ‘Shape’ input jack: Infinity Lower Cricle Upper Cricle Rectangle Hourglass (double triangle) Lower Triangle Upper Triangle Scattered Patterns...
  • Page 16 Sparkling Random pixels fade in and out to create a magical sparkling effect. Looping 6 LEDs loop around the selected shape. 3 LEDs travel clockwise and 3 LEDs travel counter clockwise. * When ‘Scattered’ shape is selected panel LEDs will illuminate from the centre of the panel until all LEDs are illuminated.
  • Page 17 Colour Multi-Coloured (LEDs are multi-coloured) All Colours Soft Fade (LEDs transition through colours) All Colours Hard Fade (LEDs hard transition through colours) Green Blue Yellow Orange Pink Purple White...
  • Page 18: Rompa® Wireless Operation

    Selecting a colour turns the all the LEDs in array the corresponding colour selected. The panel will remain this colour unless a new colour is selected via the panel or a Rompa® wireless controller or the panel is in a passive mode where it continue cycling through colours and patterns after 60...
  • Page 19: Installation

    Installation Installing Wall Mount Brackets & Panel Ensure that, after installation, the mains plug and/or power switch for the Panel is easily accessible to facilitate removal of power. Due to the size of the product it is recommended that two people are required to install the product.
  • Page 20 (All dimensions in mm)
  • Page 21 1. Unscrew the 4x M4 screws which secure the 2x brackets to the panels. The brackets are secured to avoid any damage during transit. Be sure to place the 4x M4 screws in a safe place as they will be required later.
  • Page 22 3. Hold the panel where you would like it to be mounted ensuring it is level. Whilst in position mark where the centre of the bracket mounting holes are on the wall. Do this for all 4x bracket mounting holes. Place the panel safely to the side.
  • Page 23 4. Secure both brackets to the wall* ensuring the centre of the bracket mounting holes line up with the marks just made to ensure the bracket it level when mounting it to the wall. The top bracket mounting holes should line up with the top 2x marks and the bottom bracket mounting holes should line up with the bottom 2x marks.
  • Page 24 5. Clean the wall and brackets of any dust and debris which may have been created whilst mounting the brackets. Place the panel on the brackets. To do this have the panel slightly higher than its final resting position. When you feel the panel has slotted into the bracket gradually lower the panel into position.
  • Page 25: Safety

     If the product generates abnormal sounds, a burning smell or smoke disconnect immediately and contact Rompa® customer services.  Do not press and hold the panel push buttons for durations of longer than a minute.
  • Page 26: Care And Maintenance

     Ensure no sharp tools or objects are near to the screen.  Rompa® recommends to use a soft microfibre cloth for cleaning and dusting. It optimises the finish and will prevent scratches onto the screen.  Slightly dampening the cloth or use of isopropyl alcohol is recommended for more stubborn stains.
  • Page 27: Troubleshooting

    This will reset the panel settings and revert the sound to volume 2 and Sound Effects set to on. If troubleshooting does not solve the issue please contact Rompa® Customer Services +44 (0) 1246 211 777 Frozen or Turn the panel off and wait 10 seconds. Turn the panel back on.
