What is Jaundice?
Jaundice is a common, temporary, and usually harmless condition in newborn infants caused when the chemical
"bilirubin" builds up in the baby's blood. It is normal for everyone to have low levels of bilirubin in their blood because it
is produced by the normal breakdown of red blood cells. As bilirubin builds up, it deposits in the fatty tissue under the
skin causing the baby's skin and whites of their eyes to appear yellow.
What causes Jaundice?
Jaundice can be caused by several different problems:
Physiological jaundice: This is the most common cause and occurs in more than 50% of babies. It is due to an immature
liver causing the bilirubin to be processed slower than normal. Usually appears at 2-3 days of age and usually disappears
at 1-2 weeks of age.
Breast-feeding jaundice: May occur when your baby does not drink enough breast milk. It occurs in 5-10% of newborns.
The jaundice indicates a need for help with breast-feeding.
Breast-milk jaundice: Occurs in 1-2% of breast-fed babies. It is caused by a special substance that some mothers
produce in their milk, causing the intestines to absorb more bilirubin back into the body. Usually starts at 4-7 days of
age, lasts about 3-10 weeks and is not harmful.
Blood group incompatibility (Rh or ABO problems): If a baby and it's mother have different blood types, sometimes the
mother produces antibodies that destroy the newborn's red blood cells. This can cause a sudden buildup of bilirubin in
the baby's blood. Usually begins at 24 hours of life and is considered serious.
What is Phototherapy (BiliBlanket)?
High levels of bilirubin occurring in the blood is called hyperbilirubinemia. Very high levels can be dangerous to your
baby. Your baby will have blood tests done to determine the level of bilirubin and be treated if necessary to ensure the
health of your child.
Phototherapy (light therapy) is the process of using light to eliminate bilirubin in the blood. Your baby's skin and blood
absorb these light waves and changes the bilirubin into products that can be passed through their system. The type of
light used in the home is the same form of light found in sunlight. It uses fiber optics and is safe to use. It is the highest
level of therapeutic light available for treatment.
How do you use the BiliBlanket effectively?
The blanket or pad is encased in a thin vest which then needs to be placed directly on the baby's skin.
The type we use is a pad that should be placed on the back, with the writing on the outside of pad and the plain
side toward the skin.
Secure the vest in front with Velcro. It does not need to be tight. It is placed on the back because it has the
highest amount of blood flow close to the skin.
© 2018 CareLinc Home Medical Equipment and Supply, LLC

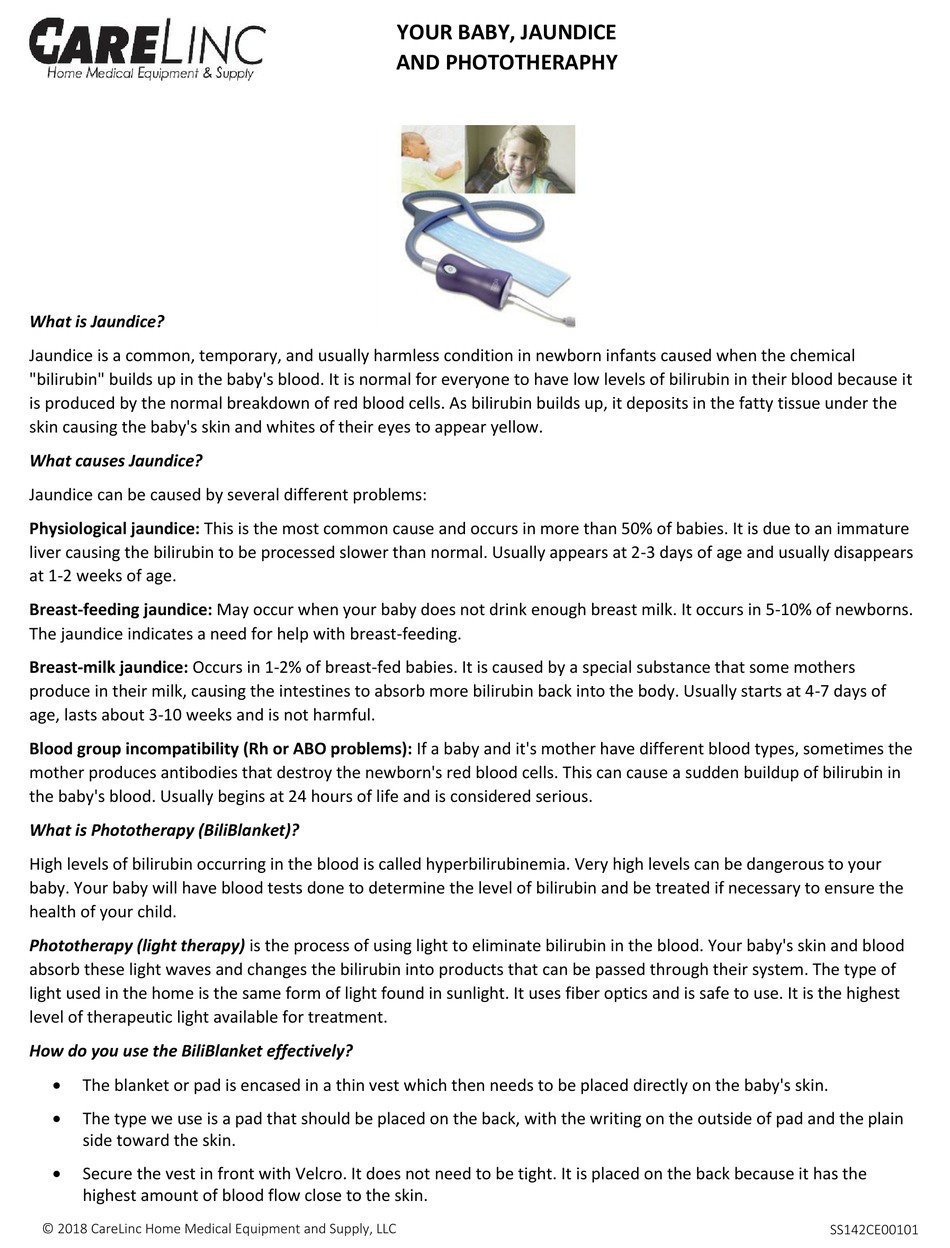

YOUR BABY, JAUNDICE
AND PHOTOTHERAPHY
SS142CE00101

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BiliTx and is the answer not in the manual?

Questions and answers

Summary of Contents for CARELINC BiliTx

  • Page 1 Secure the vest in front with Velcro. It does not need to be tight. It is placed on the back because it has the highest amount of blood flow close to the skin. © 2018 CareLinc Home Medical Equipment and Supply, LLC SS142CE00101...
  • Page 2 Do not put near or in water. Take off child to bathe Call your Physician: Contact CareLinc:  Problems with feeding  If light is not functioning correctly  Vomiting  Extreme sleepiness  Rashes or skin irritation  Temperature changes © 2018 CareLinc Home Medical Equipment and Supply, LLC SS142CE00101...
  • Page 3: Table Of Contents

    Table of Contents 1. Overview ..............................3 Intended Use ............................3 What is the BiliTx Phototherapy System? ..................3 Components of the BiliTx System ....................4 2. Warnings, Cautions, and Symbols ...................... 5 Warnings ..............................5 Cautions ..............................6 Symbols ..............................
  • Page 4: Overview

    BiliTx parents’ manual 1. Overview This chapter explains how the BiliTx Phototherapy System is used to treat infant jaundice and it lists the components of the BiliTx system. Intended Use The BiliTx is intended to treat hyperbilirubinemia through phototherapy. What is the BiliTx Phototherapy System?
  • Page 5: Components Of The Bilitx System

    Components of the BiliTx System Fiber Optic Light Panel Con guration The BiliTx system may include the following components. Note that 1. Illuminator Device with some components may vary from those shown below or may be AC Power Cord optional accessories that are not packaged with your device .
  • Page 6: Warnings, Cautions, And Symbols

    BiliTx parents’ manual 2. Warnings, Cautions, and Symbols Caution! US federal law restricts this device to sale by or on the order of a physician. Warnings WARNING A warning indicates the • Use the Bili Tx only for its intended use as described in this possibility of injury to the user or manual.
  • Page 7: Cautions

    • Position the Illuminator device on a stable surface, preferably lower than the infant. When the BiliTx system is used with the ber optic panel con guration and carrying case, the device can hang on the outside of a crib or treatment area.
  • Page 8: Symbols

    Symbols The following symbols appear on the BiliTx system. Symbol Explanation Therapy On/O Consult accompanying instructions for use Type BF applied part AC Power European Declaration of Conformity 0086 Canadian/US Safety Certi cation. Conforms to ANSI/UL STD. 2601. Certi ed to CAN/CSA C22.2 STD. NO. 601.1.
  • Page 9: Setup

    BiliTx parents’ manual 3. Setup Setting Up the BiliTx System 1. Place the appropriate cover on the panel and position the baby WARNING and panel as described later in this chapter. (See Setup-Wrap Around Panel or Flat Neonatal Panel.) After treatment has begun, the baby’s bilirubin level should be...
  • Page 10: Setup - Wrap-Around Panel

    You may wrap the baby in a blanket or put the baby in a sleeper. WARNING If using tape to secure the panel, do not adhere the tape to the baby’s skin. Wrapping and securing the panel BiliTx Parents’ Manual...
  • Page 11: Setup - Flat Neonatal Panel

    Setup - Flat Neonatal Panel This section explains how to prepare a baby for a phototherapy treatment using the at neonatal ber optic light panel. The ber optic panel must NOT be covered by anything except with the disposable cover provided. Any other type of cover could cause a reduction in light intensity.
  • Page 12 Start/Stop button is visible. The shoulder strap should be located at the same end as the power cord. You can adjust the shoulder strap as necessary using the hook and loop tabs. Therapy On/O Button Shoulder Strap BiliTx Parents’ Manual...
  • Page 13: Cleaning

    BiliTx parents’ manual 4. Cleaning This section explains how to clean the BiliTx system. CAUTION Be sure the Illuminator device Cleaning the Illuminator Device and Fiber is turned o and is unplugged before cleaning. Do not immerse Optic Panel any part of the equipment in any liquid.
  • Page 14: Customer Service Information

    Visit Philips Children’s Medical the Philips Children’s Medical Ventures Customer Service department Ventures web site at at 1-800-345-6443 or 1-724-387-4000. www.philips.com/childmed. You can also use the following address: Children’s Medical Ventures, LLC 191 Wyngate Drive Monroeville, Pennsylvania 15146 USA BiliTx Parents’ Manual...
  • Page 15: Troubleshooting

    5. Troubleshooting The following is a list of problems that may occur while using the BiliTx system. For additional information, contact your home care provider or contact Philips Children’s Medical Ventures Customer Service at 1-800-345-6443 or 724-387-4000. WARNING If therapy is interrupted for one hour or longer, resume therapy as soon as possible and contact your home care provider.
  • Page 16: Speci Cations

    BiliTx parents’ manual 6. Specifications Environmental Storage Operating Temperature -4 to 122° F (-20 to +50° C) 59 to 95° F (15 to 35° C) Relative Humidity 15-95% Non-condensing 15-95% Non-condensing Physical Illuminator Size: 6.34 in. x 2.92 in. (16.10 cm x 7.40 cm) Weight: <2.50 lb.
  • Page 17: Light Source

    Class I Equipment Degree of Protection Against Electrical Shock Type BF Applied Part Degree of Protection Against Ingress of Water Ordinary Protection, IPX0 Mode of Operation Continuous Disposal Dispose of this device in accordance with local regulations. BiliTx Parents’ Manual...
  • Page 18: Appendix A: Emc Information

    BiliTx parents’ manual Appendix A: EMC Information Guidance and Manufacturer’s Declaration - Electromagnetic Emissions This device is intended for use in the electromagnetic environment speci ed below. The user of this device should make sure it is used in such an environment.
  • Page 19 Power frequency magnetic elds Hz) magnetic eld should be at levels characteristic of a IEC 61000-4-8 typical location in a typical hospital or home environment. NOTE: U is the a.c. mains voltage prior to application of the test level. BiliTx Parents’ Manual...
  • Page 20 Guidance and Manufacturer’s Declaration - Electromagnetic Immunity This device is intended for use in the electromagnetic environment speci ed below. The user of this device should make sure it is used in such an environment. Immunity Test IEC 60601 Test Compliance Electromagnetic Environment - Guidance Level...
  • Page 21 Note 1: At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies. Note 2: These guidelines may not apply in all situations. Electromagnetic propagation is a ected by absorption and re ection from structures, objects, and people. BiliTx Parents’ Manual...
