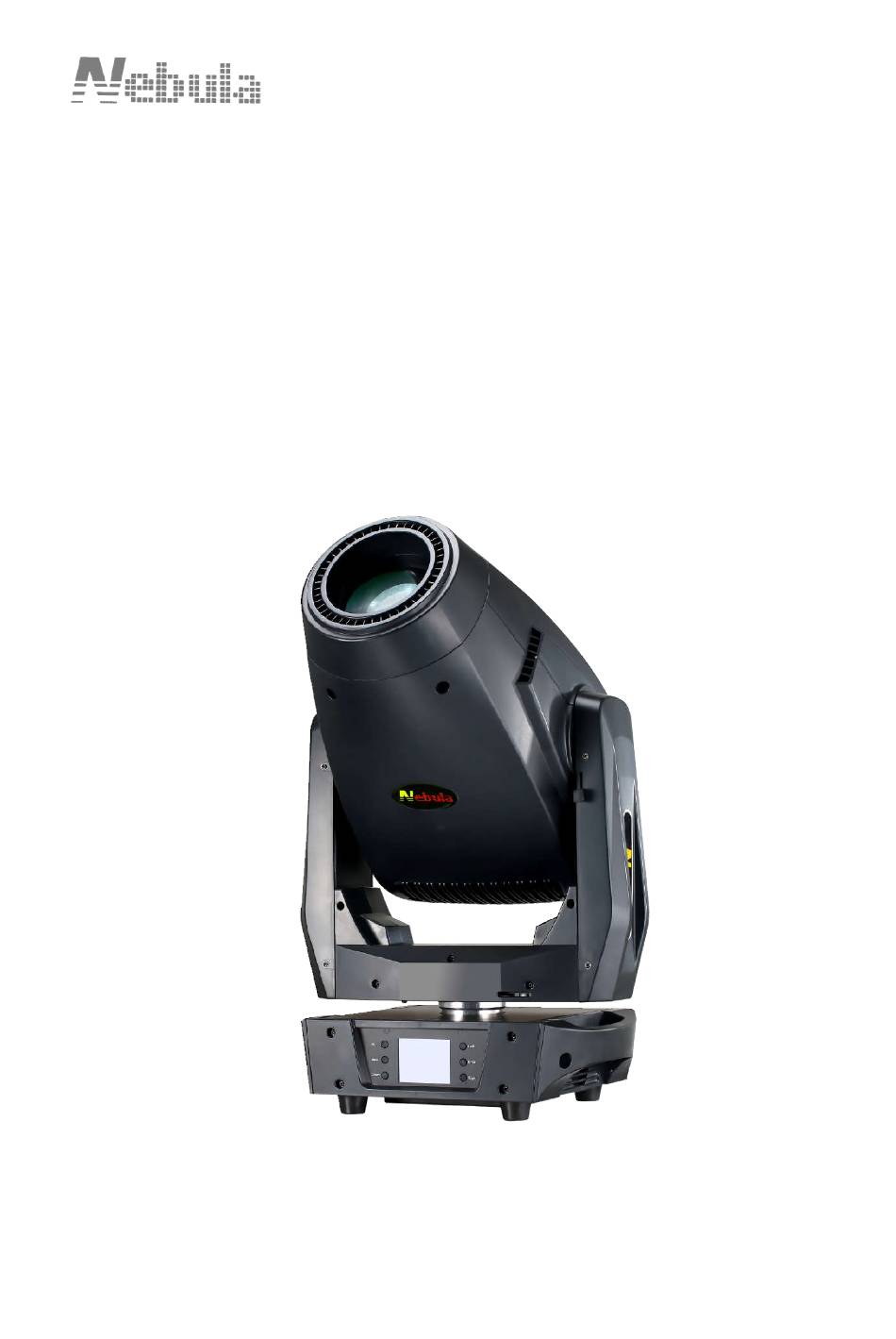

- Page 1 USER MANUAL USER MANUAL USER MANUAL ALKAID PROFILE ALKAID PROFILE 50.0 500W LED LED SPOT FRAMING MOVING HEAD SPOT FRAMING MOVING HEAD WITH CMY, CTO and IRIS Version 1.2 PLEASE READ OVER THIS MANUAL BEFORE OPERATING THE LIGHT FIXTURE OVER THIS MANUAL BEFORE OPERATING THE LIGHT FIXTURE...
-
Page 2: Safety Instruction
1. SAFETY INSTRUCTION Nebula ALKAID PROFILE 50.0 is designed and manufactured to meet the requirements of People’s Republic of China and international safety regulations. Modifications to the product could affect safety and render the product non-compliant to relevant safety standards. -
Page 3: Product Introduction
2. PRODUCT INTRODUCTION ① Lens ② Head ③ Arm ④ Botton ⑤ LCD Display ⑥ Up-button ⑦ Menu -button ⑧ Down-button ⑨ Left-button ⑩ Enter-button ⑪ Right-button ⑫ DMX IN(3-pin) ⑬ DMX OUT(3-pin) ⑭ DMX IN(5-pin) ⑮ DMX OUT(5-pin) ⑯ POWER IN ⑰... -
Page 4: Specification
3. SPECIFICATION SOURCE ● Light Source: 500W Color White LED ● Color Temperature: 6500K ● Average LED Life: 20,000 Hour POWER ● Input Voltage: 100-240VAC, 50/60Hz ● Power Consumption: 850W max. at full output OPTICAL SYSTEM ● Zoom: 10° - 40° linear motorized ●... -
Page 5: Dimension (Mm)
4. DIMENSION (MM) 5. PHOTOMETRIC DATA 6. MOUNTING AND INSTALLATION ● The fixture can be mounted in any position. ● Always ensure that mounting surface can withstand 10 times the weight of the fixture. ● Always use a safety cable when mounting the fixture in any elevated position. Upright - 4 -... - Page 6 Hanging IMPORTANT SAFETY NOTE!! Always use a safety cable when installing this unit! Be sure that the safety cable is connected to a solid load-bearing structure! 7. DISPLAY PANEL INTRODUCTION Using the display panel to set the starting DMX address or make other settings. The functions provided are described in the following sections.
- Page 7 - 6 -...
- Page 8 - 7 -...
-
Page 9: Dmx Channel Assignments
8. DMX CHANNEL ASSIGNMENTS This product has 36/52 DMX channels as below: 36 Channels mode - 8 -... - Page 10 - 9 -...
- Page 11 - 10 -...
- Page 12 52 Channels mode - 11 -...
- Page 13 - 12 -...
- Page 14 - 13 -...
- Page 15 9. CLEANING In order to make the fixture in good condition and extend the life time, we suggest a regular cleaning to the fixture. ● Clean the inside and outside lens each week to avoid the weaknesses of the fixture due to accumulation of the dust.
- Page 16 - 15 -...
