REVCO REB-1204 Installation And Operation Manual

1 Introduction
Revco blood bank refrigerators are designed to meet strict
AABB, ANRC and FDA requirements for stored product safety.
This manual provides installation and operation instructions for:
3
Space Saver models (11.5 ft
3
and 51.1 ft ). Refer to Table 1 to determine the specifications that
apply to your unit.
The IntrLogic™ control system, standard on all models, includes:
Key-operated power and alarm switch
•
Preset temperature setpoint
•
Digital temperature display with 0.1ºC resolution
•
Graphic temperature display
•
Audible and visual power failure indicators
•
Alarm silence, ringback, and automatic reset functions
•
Pushbutton alarm test
•
Other standard features include:
Keyed door locks
•
Remote alarm contacts
•
CFC-free refrigerant
•
CFC-free foamed in-place urethane insulation
•
Quiet, hermetically sealed refrigeration compressors
•
3

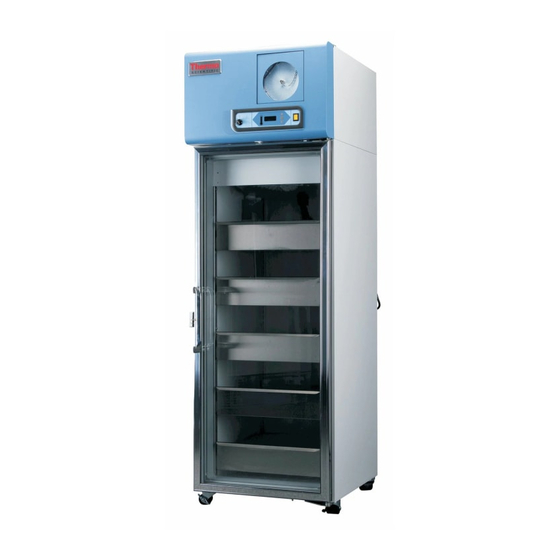

Upright models (23.3 ft and larger) also have: fully extendable
stainless steel drawers; a sensor selection button (for upper and
lower cabinet temperature readings); and an independent switch
for interior cabinet lights.
Seven day chart recorders are standard on all models.
Table 1. Revco Blood Bank Refrigerator Specifications
Voltage Amps/
Model
a
Code Breaker
A 8.0/15
REB-1204
U 4.8/15
A 13.0/15
REB-2304 D 9.0/15
U 8.5/15
A 13.0/15
REB-3004 D 9.0/15
U 8.5/15
A 16.0/20
REB-5004 D 8.5/15
U 8.5/15
a
A = 115V, 60Hz; D = 208/230V, 60Hz; U = 200/230V, 50Hz
) and Upright models (23.3, 29.2
Cu. Ft./
Cabinet
Liters
11.5/
Space Saver
326
23.3
Upright
659
29.2/
Upright
826
51.1/
Upright
1447
2 Safety Precautions
In this manual and on labels attached to this product, the words
WARNING and CAUTION mean the following:
WARNING: a potentially hazardous situation which, if not
•
avoided, could result in serious injury or death.
CAUTION: a potentially hazardous situation which, if not
•
avoided, may result in minor or moderate injury or damage to
the equipment.
Before installing, using or maintaining this product, please be sure
to read this manual and product warning labels carefully. Failure to
follow these instructions may cause this product to malfunction,
which could result in injury or damage.
Below are important safety precautions that apply to this product:
Use this product only in the way described in the product
•
literature and in this manual. Before using it, verify that this
product is suitable for its intended use.
Do not modify system components, especially the controller.
•
Use OEM exact replacement equipment or parts. Before use,
confirm that the product has not been altered in any way.
Your unit must be properly grounded in conformity with
•
national and local electrical codes. Never connect the unit to
overloaded power sources.
Disconnect the unit from all power sources before cleaning,
•
troubleshooting, or performing other maintenance on the
product or its controls.
Drawers/ Dimensions H x F-B x W in. (cm)
Door 450ml
Interior
bags
Single
52.4 x 21.75 x 20
hinged 5/165
(133.2 x 55.2 x 50.8)
glass
Single
58 x 29 x 24
hinged 6/360
(147.3 x 73.7 x 61.0)
glass
Single
58 x 29 x 30
hinged 6/462
(147.3 x 73.7 x 76.2)
glass
Double
58 x 29 x 52.5
hinged 12/720
(147.3 x 73.7 x 133.4)
glass
Installation and Operation
Blood Bank Refrigerators
Exterior
71.9 x 28.75 x 24
(182.6 x 73 x 61)
77.5 x 36.2 x 28
(196.9 x 92.0 x 71.1)
77.5 x 36.2 x 34
(196.9 x 92.0 x 86.4)
77.5 x 36.2 x 56.5
(196.9 x 92.0 x 143.5)
Net
Prod. Wt.
lbs (kg)
320
(146)
425
(193)
500
(227)
640
(290)
1
