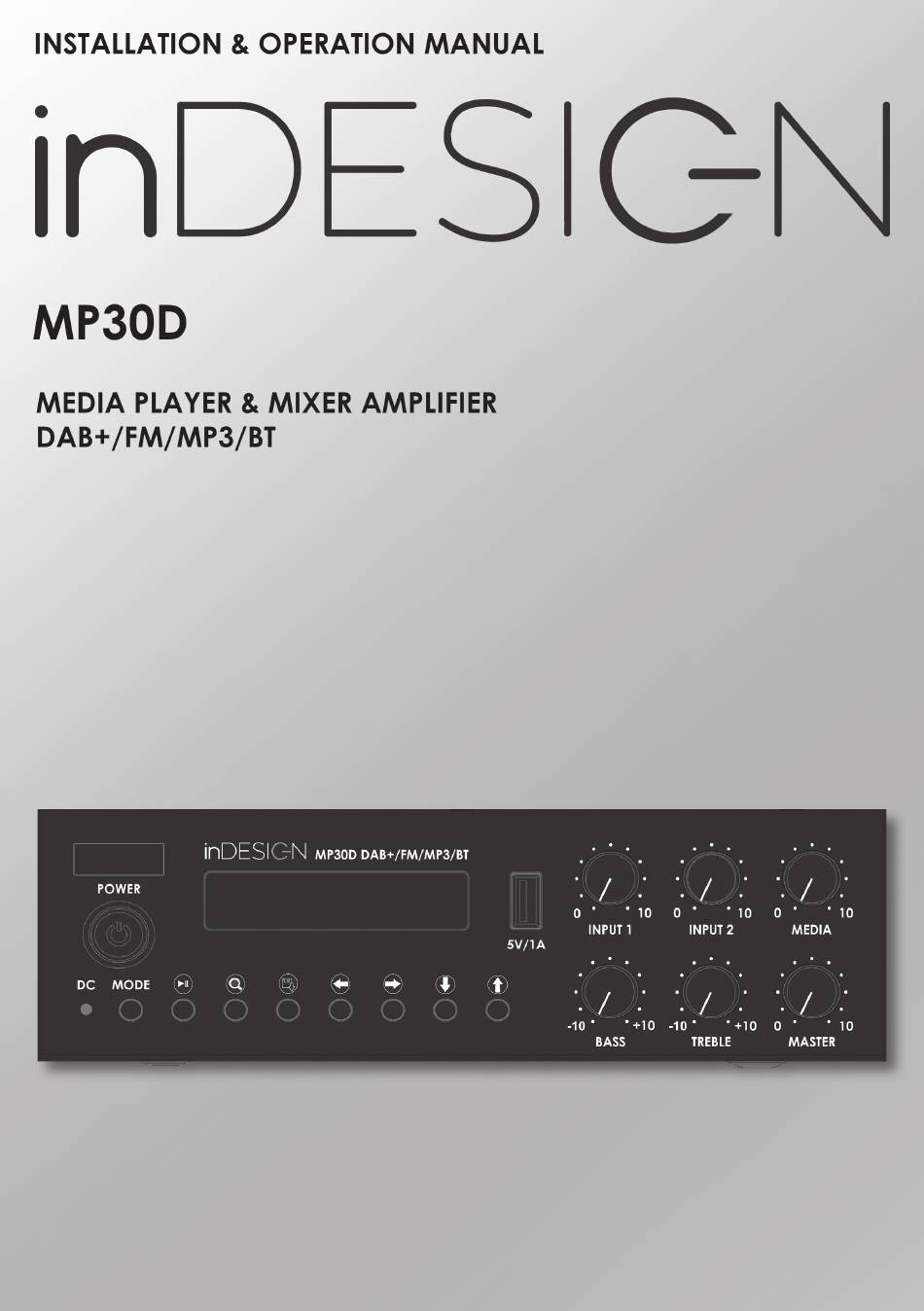

Summary of Contents for inDESIGN MP30D
-
Page 2: Table Of Contents
USB and MP3 player allow easy playback of your favourite radio station, or music stored on a USB drive. INSTALLATION The MP30D delivers 30 watts via 8Ω or constant voltage 100V FRONT PANEL and 70V speaker outputs and features 2 Microphone/Line... -
Page 3: Important Safety Instructions
They can take this product for environmental-safe recycling. WARNING: There are no user serviceable parts inside. Refer all servicing to qualified service personnel. MP30D: INSTALLATION & OPERATION MANUAL PAGE 3... - Page 4 Do not place the unit on a bed, sofa, rug, or similar surface that could block the ventilation openings. If the unit is placed in a bookcase or cabinet, there must be ventilation of the cabinet to allow proper cooling. >10cm >4in >10cm >10cm >4in >4in >10cm >4in PAGE 4 MP30D: INSTALLATION & OPERATION MANUAL...
-
Page 5: Installation
If your chosen amplifier has a maximum output of 30 Watts at 100V, the minimum impedance connected should be at least 333 Ohm (100V x 100V/333 Ohm = 30W). When measuring a constant voltage speaker load, use a professional impedance meter, not a multimeter. MP30D: INSTALLATION & OPERATION MANUAL PAGE 5... -
Page 6: Front Panel
17. Treble level adjustment for output. station will then store on selected pre-set 18. Output volume adjustment. slot automatically. Single press to recall station pre-set. 19. BT antenna behind window. Press again to cycle through available stored station. PAGE 6 MP30D: INSTALLATION & OPERATION MANUAL... -
Page 7: Rear Panel
26. Input 2. Balanced XLR for mic level and dual RCA for line level inputs. 27. Phantom Power switch. 24V DC mic input 1. 28. Voice Priority. Threshold level adjustment for input 1 voice priority. MP30D: INSTALLATION & OPERATION MANUAL PAGE 7... - Page 8 To open the DAB+ menu press the button. The DAB+ menu provides access to the Station List, Full Scan and the MP30D Main Menu. Use the button to select any of these options, or the button to return to the currently playing station.
- Page 9 Pressing the buttons will skip to the previous or next track respectively. Pressing the button will rotate between Loop All, Loop One and Random playback modes. MP30D: INSTALLATION & OPERATION MANUAL PAGE 9...
-
Page 11: Specifications
Internal universal power supply (110VAC - 240VAC) Power consumption 60 watts Safety RCM / CE / EMC Channel separation >50dB Noise level <75dB DC power supply 21-25V AC fuse T1AH 250V 5 x 20 mm * Disclaimer: Instructions and specifications are correct at time of printing. Information within may be subject to change without notice. MP30D: INSTALLATION & OPERATION MANUAL PAGE 11... -
Page 12: Warranty Info
The cost of claiming under this warranty, including return of any product to NAS is to be borne by the consumer. The Warranty excludes removal or re-installation costs. * All inDESIGN products come with a 5 year warranty term. For further information and warranty claims, refer to our Support page at www.nationalaudio.com.au.
