Micro QUAD Flyer designed for Aerial Video Application
Thank you for purchasing MC400QUAD. It is a micro QUAD Flyer specifically designed for aerial video application. It is developed from the
popular MC6500PRO. Compared to other medium or large aircrafts, MC400QUAD has the following feautures: smaller size, lighter weight,
higher mobility, longer flying time and higher security. It is an ideal aerial video tool for meeting records, performences, press conferences and
shooting in limited space.

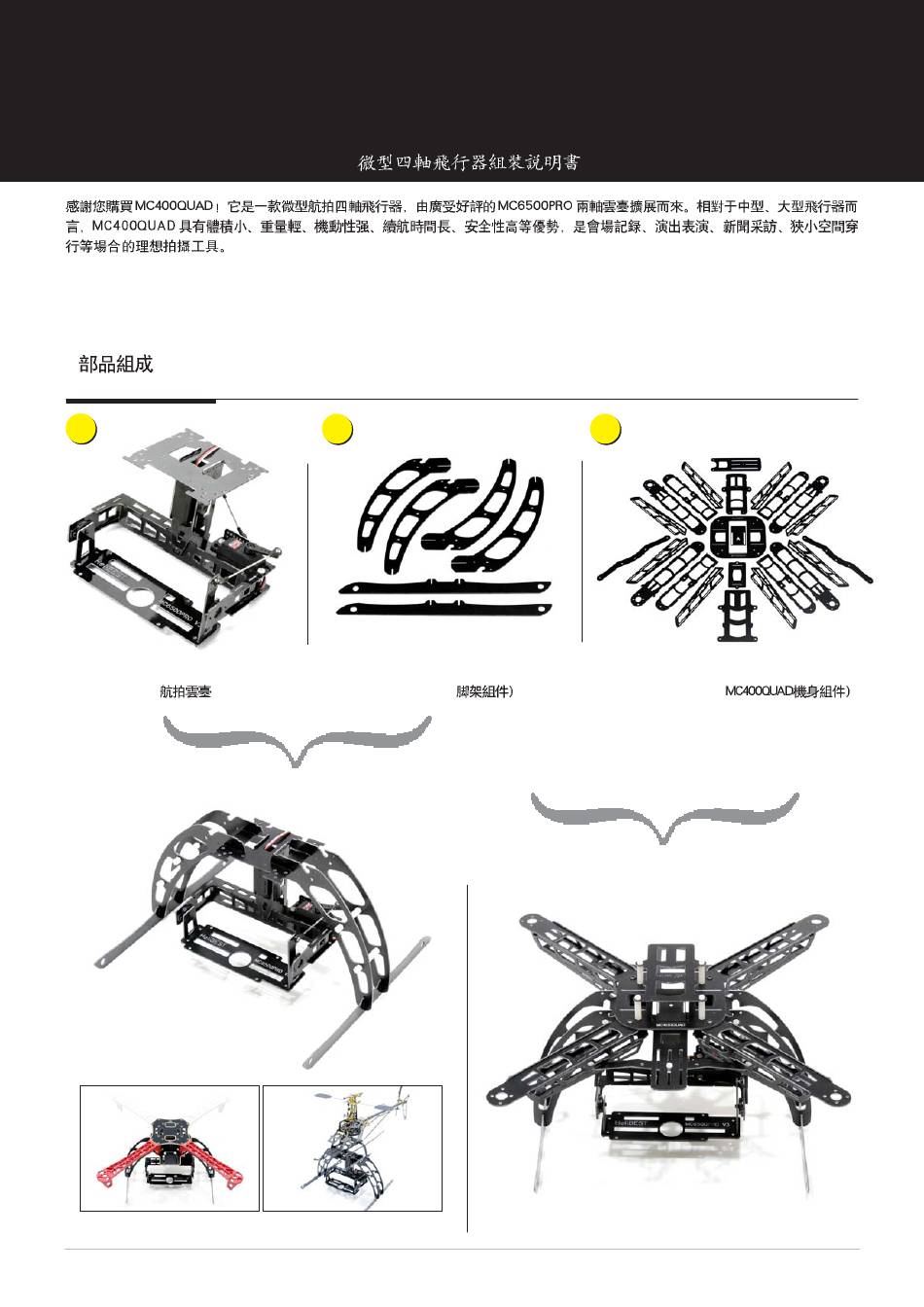

Packing List
A
1x MC6500PRO Camera Gimbal
1x MC6500PRO
A+B=MC6500PRO V3L
for any flyer which no landing Gear
MC400QUAD User Manual
Create the best aerial images show only
B
1x MC6500PRO-L (Landing Gear)
1x MC6500PRO-L (
for 450EP R/C Helicopter
AD User Man ual
AD User Man
AD User Man
AD User Man
C
1x MC6500PRO-A (MC400QUAD Frame)
1x MC6500PRO-A (
A+B+C=MC400QUAD
Complete picture of MC400QUAD
Version 1.0
ual
ual
ual
ual
Page 1
Advertisement
Table of Contents
Related Manuals for HeliBEST MC400QUAD
Summary of Contents for HeliBEST MC400QUAD
- Page 1 Micro QUAD Flyer designed for Aerial Video Application Thank you for purchasing MC400QUAD. It is a micro QUAD Flyer specifically designed for aerial video application. It is developed from the popular MC6500PRO. Compared to other medium or large aircrafts, MC400QUAD has the following feautures: smaller size, lighter weight, higher mobility, longer flying time and higher security.
- Page 2 1. MC400QUAD is combined with MC6500PRO(3.0 version min) , MC6500PRO-L and MC6500PRO-A. 2. MC400QUAD does not include other electronic devices but two servos. if you want to assemble a complete aircraft, you need to purchaseother devices, such as:flight control, motor, ESC, radio, battery, charger, etc.
- Page 3 STEP 1 Assemble the MC6500PRO-A Before assembly, please adjust the direc- tion of the Motor scrow holes. Complete assembly of the four-arms MC400QUAD User Manual Page 3...
- Page 4 STEP 2 Assemble the MC6500PRO-A M3 x 6 M3 x 6 Socket Screw and Nut Attention to the position of screw holes M3 x 10 M3 x 10 Nylon Screw and Nut MC400QUAD User Manual Page 4...
- Page 5 M3 x 10 Nylon Screw Assemble the Top Plate and Battery Plate. M3 x 20 M3 x 20 Nylon Pillar Example 1: Install the DJI NAZA F.C. Example 2: Install the DJI WK-M IMU Module MC400QUAD User Manual Page 5...
- Page 6 Complate Assemble the MC6500PRO-A M3 x 6 M3 x 6 Socket Screw and Nut The weight of MC400QUAD Parts MC6500PRO-V3L 179g MC6500PRO-L 63.5g MC6500PRO V3 115g MC400QUAD 346g MC6500PRO-A 162g MC400QUAD User Manual Page 6...
- Page 7 The dimension of MC400QUAD 281mm 397mm 147mm 246mm 135mm 118mm 246mm MC400QUAD User Manual Page 7...
