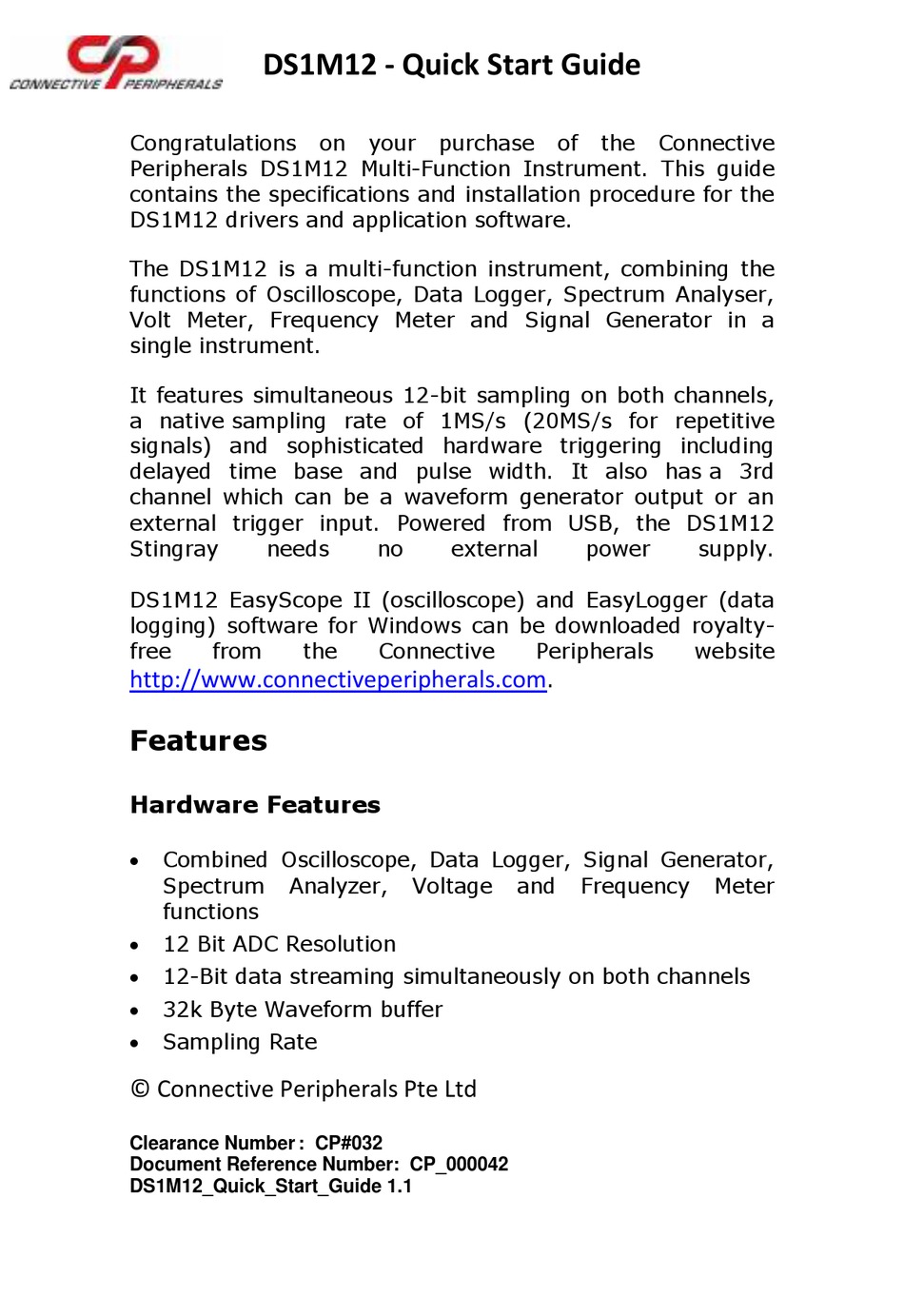

DS1M12 - Quick Start Guide
Congratulations
Peripherals DS1M12 Multi-Function Instrument. This guide
contains the specifications and installation procedure for the
DS1M12 drivers and application software.
The DS1M12 is a multi-function instrument, combining the
functions of Oscilloscope, Data Logger, Spectrum Analyser,
Volt Meter, Frequency Meter and Signal Generator in a
single instrument.
It features simultaneous 12-bit sampling on both channels,
a native sampling rate of 1MS/s (20MS/s for repetitive
signals) and sophisticated hardware triggering including
delayed time base and pulse width. It also has a 3rd
channel which can be a waveform generator output or an
external trigger input. Powered from USB, the DS1M12
Stingray
needs
DS1M12 EasyScope II (oscilloscope) and EasyLogger (data
logging) software for Windows can be downloaded royalty-
free
from
http://www.connectiveperipherals.com
Features

Hardware Features

Combined Oscilloscope, Data Logger, Signal Generator,
Spectrum
Analyzer,
functions
12 Bit ADC Resolution
12-Bit data streaming simultaneously on both channels
32k Byte Waveform buffer
Sampling Rate
© Connective Peripherals Pte Ltd
Clearance Number : CP#032
Document Reference Number: CP_000042
DS1M12_Quick_Start_Guide 1.1
on
your
purchase
no
external
the
Connective
Voltage
of
the
Connective
power
Peripherals
.
and
Frequency
supply.
website
Meter

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS1M12 and is the answer not in the manual?

Questions and answers

Related Manuals for Connective Peripherals DS1M12

Summary of Contents for Connective Peripherals DS1M12

  • Page 1 Peripherals DS1M12 Multi-Function Instrument. This guide contains the specifications and installation procedure for the DS1M12 drivers and application software. The DS1M12 is a multi-function instrument, combining the functions of Oscilloscope, Data Logger, Spectrum Analyser, Volt Meter, Frequency Meter and Signal Generator in a single instrument.
  • Page 2 DS1M12 - Quick Start Guide o Oscilloscope - 20M S/s (repetitive), 1M S/s native o DataLogger - up to 50k S/s  Maximum input voltage ± 50V DC (35V RMS AC)  AC / DC Coupling  Edge, min/max, pulse width and delayed trigger modes ...

  • Page 3: Getting Started

    1 x USB cable  This Quick Start Guide Getting Started The DS1M12 requires device drivers to be installed on your PC to enable communication with the instrument. Install the device drivers prior to installing the applications below. Driver Installation Driver installation can be completed in one of two ways: 1.
  • Page 4 Extract the files to a convenient location on your local drive. Connect the supplied USB cable to the DS1M12 and the other end of the cable to a spare USB port on the PC. Power is supplied by the USB port, so no external power is required.
  • Page 5 The applications can then be accessed from the START>All Programs list of applications. Measuring High Voltages The DS1M12 is rated at ± 50V DC maximum input (35V RMS AC) even with a x10 oscilloscope lead attached. Measuring higher voltages than this directly may damage the instrument and invalidate the warranty.

  • Page 6: Troubleshooting

    DS1M12 - Quick Start Guide Troubleshooting If a static / ESD discharge occurs down the earth lead of the oscilloscope, the unit may lock up and require the host pc to be re-started to resume operation. In practice, this is an unusual condition and should not affect normal operation.
  • Page 7 DS1M12 - Quick Start Guide Revision Record Sheet Authors Graham Brown Filename DS1M12_Quick_Start_Guide Date Details Revision First release – Document created by Rev 1.0 2011-06-07 merging the old USB Instruments leaflet and the 2010 EasySYNC quickstart guide Reviewed (Bob) – comments added,...
  • Page 8 Managing Director Sales and Marketing Manager Engineering Manager Clearance Approval This Document is cleared for Connective Peripherals use and unrestricted circulation. - An NDA is not required prior to external circulation. © Connective Peripherals Pte Ltd Clearance Number : CP#032 Document Reference Number: CP_000042 DS1M12_Quick_Start_Guide 1.1...
