INNOTRIK AUCTOPUS I-32W User Manual

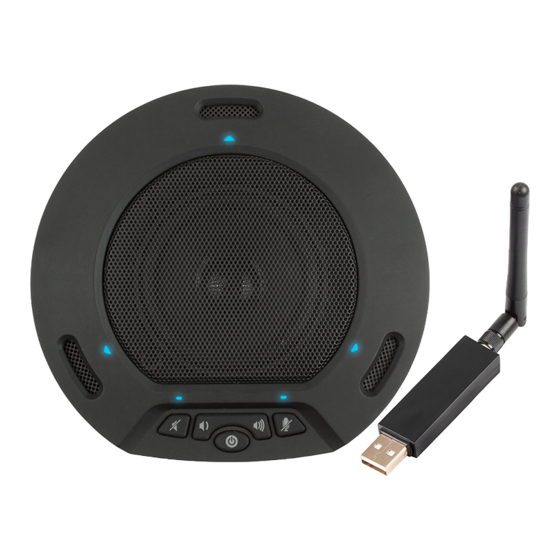

AUCTOPUS I-32W wireless speakerphone

User manual

Product Overview

Thanks for your purchase of a conference speakerphone product we provide.
This 2.4GHz wireless digital conference speakerphone is ideal for high-end audio/video
networking conferences. It is applicable for software video conference systems,
large-screen AIO video systems, Skype, QQ and other voice and video chat applications.
With an audio adapter connected, it is applicable for various hardware video conference
systems, education & training systems, network monitoring systems, telemedicine
systems, smart city systems and conference recording and playing systems. This
palm-sized portable device features plug-and-play without the need of driver installation.
The audio output port enables the use of digital amplifier and external speaker. USB and
6.5mm audio ports are provided; XLR adapter is optional.

Major Functions:

1) Adopt wireless digital technology and strong anti-interference technology; support
intelligent frequency hopping at multiple frequency bands.
2) Employ digital microphone, broadband speaker output and speech enhancement.
3) Need no driver in USB mode; support operating systems like Windows and Android.
4) USB and 6.5mm audio ports are provided; XLR adapter is optional.
5) Build-in battery with intelligent power saving function; simple charging is achieved via
USB.
6) Support audio output; headphone and active speaker can be connected.
7) Adopt the second-generation intelligent echo cancellation technology.
8) Algorithms for echo cancellation, noise cancellation, automatic gain control, etc. are
built in.
9) Support special wireless audio kits.

Device Description

I. Description of Structure and Functions
Power button:
Long press this button to make the device enter the standby mode (the bottom right blue
light will blink) to wait for connection of the wireless adapter; during working, long press
this button to power off the device. When power is supplied via USB, short press this
button to power on the device.
For audio output or connection of a 3.5mm headphone.
USB power port:
For connecting USB power supply.
II. Description of Indicator Status
Bottom right indicator: The blue light will turn on when the microphone is muted. When
the wireless adapter is not connected, the blue light will blink (indicating standby mode).
When the built-in battery level is low, the orange light will blink; upon full charging, the
