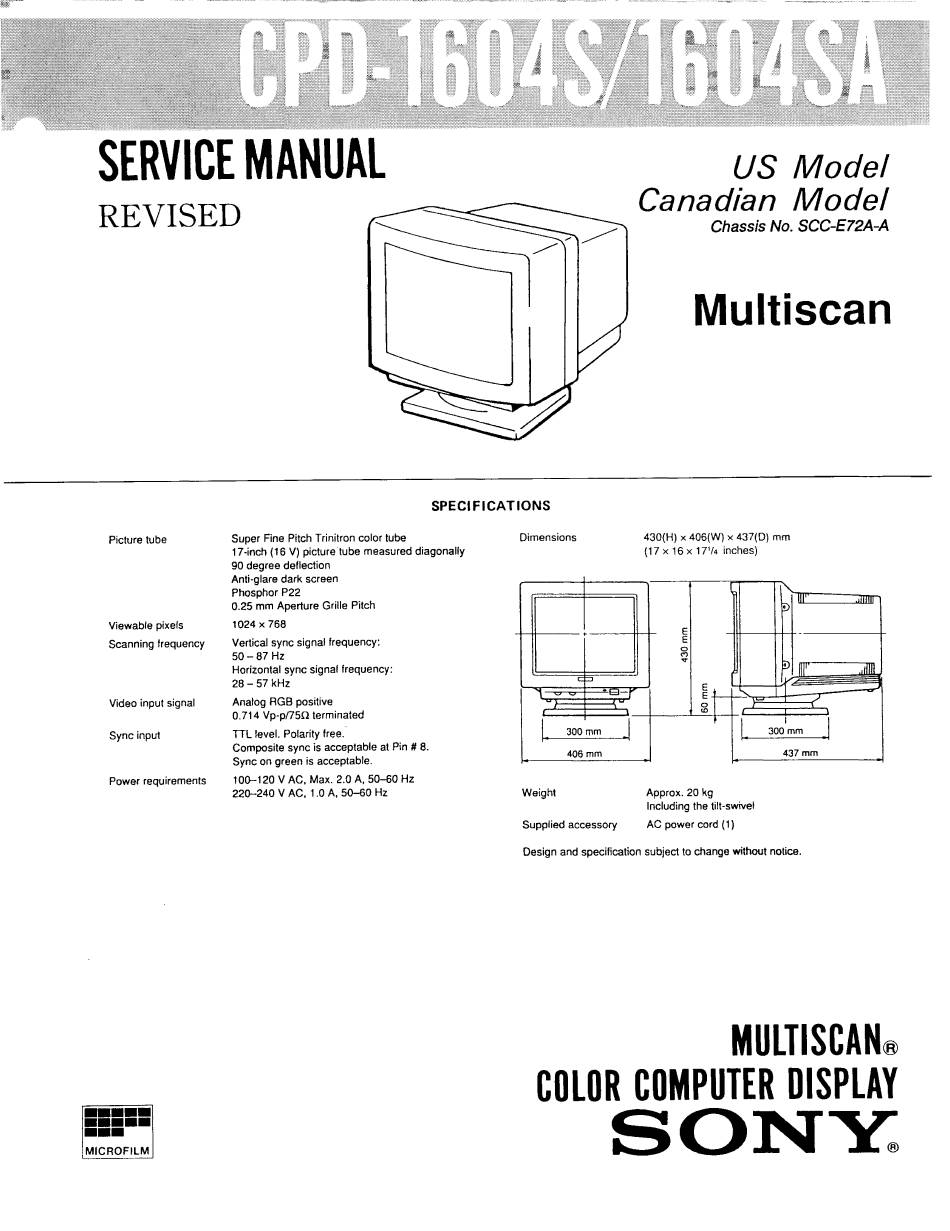

Sony Multiscan CPD-1604S Service Manual

SERVICE MANUAL
REVISED
US Model
Canadian Model
Chassis No. SCC-E72A-A
Multiscan
SPECIFICATIONS
Picture tube
Viewable pixels
Scanning frequency
Video input signal
Sync input
Power requirements
•••••
•••••
•••
MICROFILM
Super Fine Pitch T rinitron color tube
17-inch (16 V) picture tube measured diagonally
90 degree deflection
Anti-glare dark screen
Phosphor P22
0.25
mm
Aperture Grille Pitch
1024
x
768
Vertical sync signal frequency:
50- 87 Hz
Horizontal sync signal frequency:
28 - 57 kHz
Analog RGB positive
0.714 Vp-p1750 terminated
TIL level. Polarity free.
Composite sync is acceptable at Pin # 8.
Sync on green is acceptable.
100-120 V AC, Max. 2.0 A, 50-60 Hz
220-240 V AC, 1.0 A, 50-60 Hz
Dimensions
.
p
'1
-
-r
I
300 rnrn
I
406 rnrn
Weight
Supplied accessory
430(H) x 406(W) x 437(0) mm
(17 x 16 x 17'/4 inches)
~
io)
III'
E
E
0
M
".
I;)
Ill'
E I
~T
I
I
I
300 rnrn
/
437mm
Approx. 20 kg
Including the tilt-swivel
AC power cord (1)
Design and specification subject to change without notice.
...dlll..
I
MULTISCAN®
COLOR COMPUTER DISPLAY
SONY:
