Summary of Contents for Cervis Wireless Smart HH 10 Series

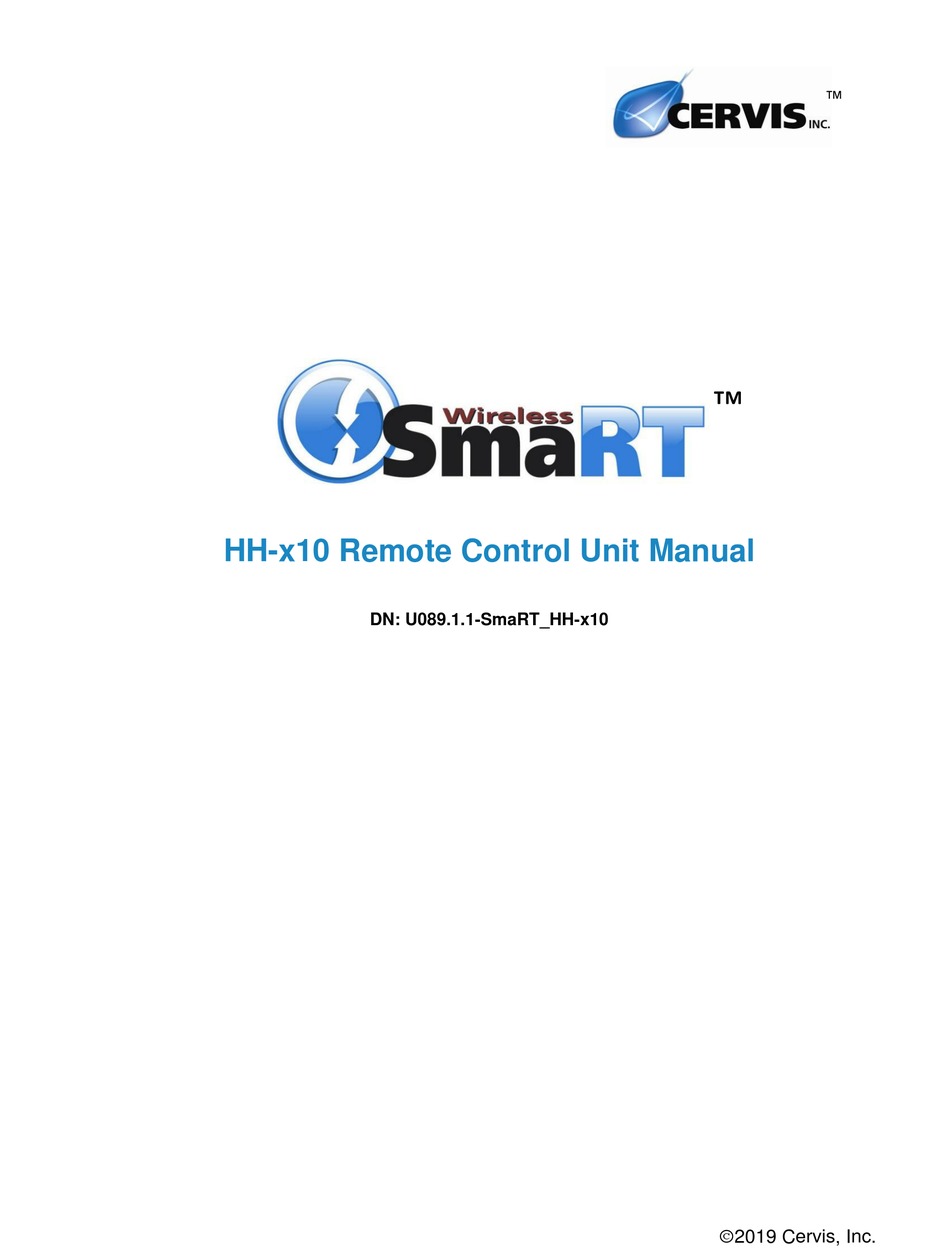

  • Page 1 ™ ™ HH-x10 Remote Control Unit Manual DN: U089.1.1-SmaRT_HH-x10 2019 Cervis, Inc.
  • Page 2 RoHS Compliance Statement Cervis, Inc. complies with the requirements of Restriction of Hazardous Substances (RoHS/WEEE) Specification based on in-house practice and declaration of compliance from our vendors. For additional information concerning RoHS compliance, please contact Cervis, Inc. at: CERVIS, Inc.
  • Page 3: Document Conventions

     Note: Notes are used to indicate points of interest or pertinent information. Cautions are used to warn of serious consequences of actions or inactions that may result in injury, death, or serious damage to the equipment. 2019 Cervis, Inc.
  • Page 4: Table Of Contents

    Table of Contents ......................... ii List of Figures ..........................ii List of Tables ..........................ii Cervis, Inc. Safety Precautions ....................1 1.0 SmaRT HH-x10 Remote Control Unit .................. 2 2.0 Remote Control and Base Unit Communication ............... 4 2.1 Associate HH-xH10 Remote Control to Base Unit ............4 2.2 Dissociate HH-xH10 Remote Control from Base Unit ...........
  • Page 5: Cervis, Inc. Safety Precautions

    Remote Control Unit Manual Cervis, Inc. Safety Precautions  Read and follow all instructions.  Failure to abide by Safety Precautions may cause equipment failure, loss of authority to operate the equipment, and personal injury.  Use and maintain proper wiring. Follow equipment manufacturer instructions.
  • Page 6: Smart Hh-X10 Remote Control Unit

    SmaRT HH-x10 1.0 SmaRT HH-x10 Remote Control Unit Remote Control Features  License-free 900MHz or 2.4GHz Direct Sequence Spread Spectrum Technology (DSSS)  Direct-line-of-sight communications up to 1000 ft. (330m) range  Powered by two AAA cell batteries  Low Battery Warning and Low Battery Auto-Shutdown ...
  • Page 7: Figure 2. Standard Ten-Button Example

    Table 1. HH-x10 Remote control Options Activation, Belt Model Name Frequency RF Power Deactivation Clip HH-9H10 900MHz 10mW ON,OFF HH-9H10B 900MHz 10mW ON,OFF HH-2H10 2.4GHz 100mW ON,OFF HH-2H10B 2.4GHz 100mW ON,OFF HH-9X10 900MHz 100mW ON,OFF HH-9X10B 900MHz 100mW ON,OFF 2019 Cervis, Inc.
  • Page 8: Remote Control And Base Unit Communication

    An HH-x10 remote (as part of a system) is associated with the system base unit before leaving Cervis, Inc. But, it is possible to associate an HH-x10 in the field either to address a communication problem or to add or replace a remote control unit. The procedure to establish the link is called “Association”.
  • Page 9: Dissociate Hh-Xh10 Remote Control From Base Unit

    Established links with base units are removed. To re-establish a communication link with a base unit, use the Associate Procedure (Section 2.1). Hold to DISSOCIATE Hold to DISSOCIATE Figure 4. Dissociate an HH-x10 Remote control from a Base Unit 2019 Cervis, Inc.
  • Page 10: Battery Installation Or Change

    SmaRT HH-x10 3.0 Battery Installation or Change Two size AAA cell batteries power SmaRT HH-x10 remote control units. When installing batteries, be sure to observe proper polarity—as marked on the inside of the compartment—to avoid damaging the unit. To replace or install remote control batteries: 1.
  • Page 11: Using A Standard Smart Remote Control

    2. The Inactivity timeout occurs, where no button activity is sensed for a programmed amount of time (default=four minutes). When the remote control is turned off—and the base unit Safety Link is enabled—all active base unit functions are deactivated. 2019 Cervis, Inc.
  • Page 12: Low Battery Warning And Low Battery Auto-Shutdown

    At 2.1VDC and below, the Amber battery (BAT) LED begins flashing approximately once per second to indicate a Low Battery Warning. Messages are still being transmitted, and the remote control can still be used; but Cervis, Inc. recommends installing a fresh set of two AAA cell batteries as soon as possible.
  • Page 13: Specifications

    Receive – Flashes when receiving messages RX (Amber) ER (Red) Flashes when errors are detected BAT (Amber) Blinks when low battery condition exists Used when custom-programmed Used when custom-programmed Buttons Twelve Pushbuttons Number of Functions Ten to twenty, program-dependent 2019 Cervis, Inc.
  • Page 14: Spare Parts List

    Table 3. Spare Parts List Item Cervis, Inc. Bin Location Protective Rubber Bumper AA6-02 Lanyard AA8-01B Battery Cover with 4 Attached Screws Call Cervis, Inc. @ 724-741-9000 AAA 1.5V Cell Batteries (Two-pack) AA6-03 Belt Clip AA5-07 Replacement Antenna Disallowed U089.1.1-SmaRT_HH-x10...
  • Page 15: Appendix A: Exposure To Radio Frequency Energy

     Keep the remote at least 15mm (⅝ inch) away from the body.  Only use carrying cases, belt clips, or holders approved by the Cervis, Inc. Appendix B: Agency Identification Label Locations  Note: The unit label location is identical for both 900MHz and 2.4GHz handheld remote control units.
  • Page 16 SmaRT HH-x10 www.cervisinc.com Visit our Web site at: 2019 Cervis, Inc. All rights reserved. Content is subject to change without notice. U089.1.1-SmaRT_HH-x10...
