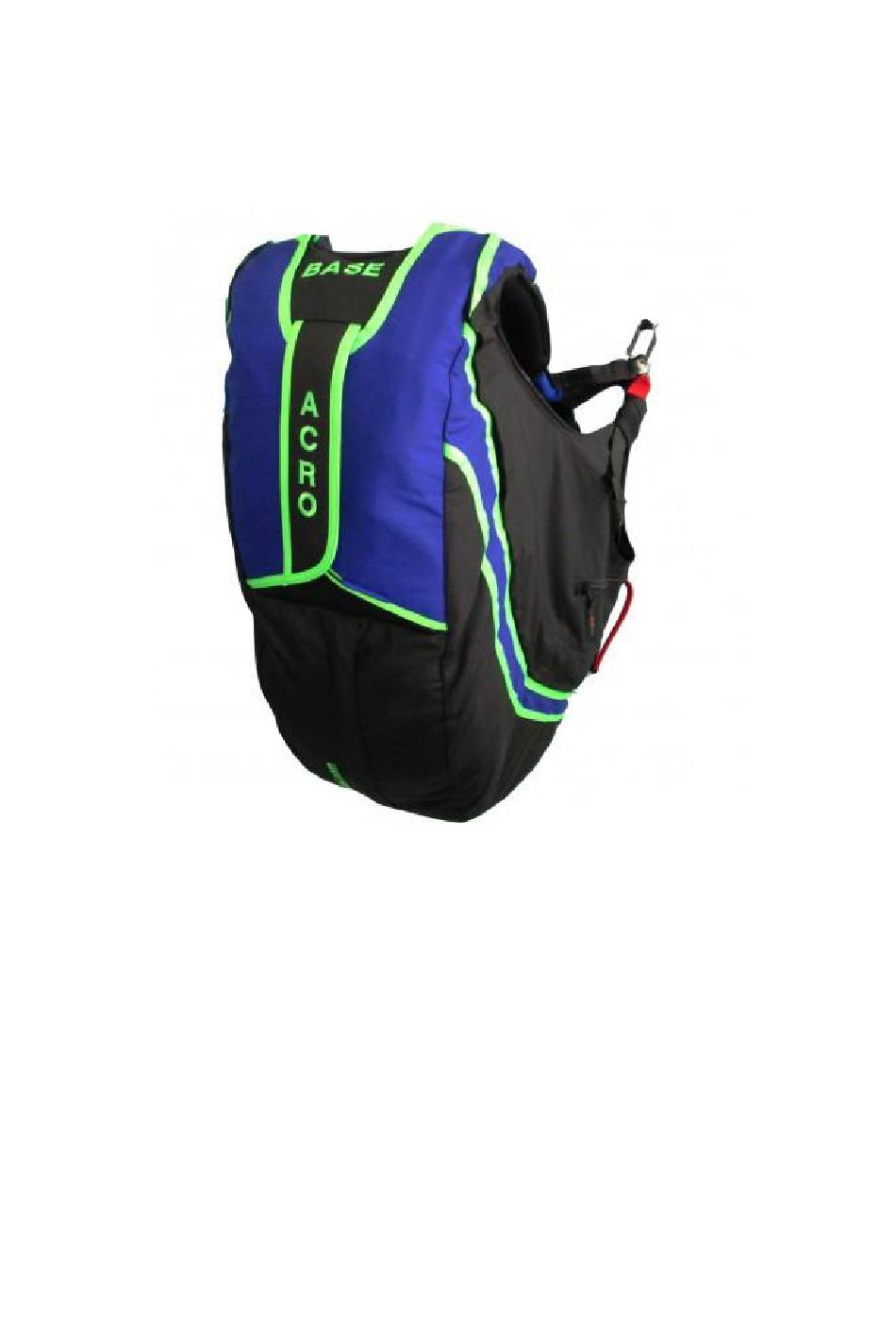

- Page 1 ACRO BASE MANUAL...
- Page 2 More to this is the cutaway system together with the Rescue Static Line ( RSL ) and the whole this system makes all your troubles go away in case of a malfunction. For Acro Base Harness we use elements from skydiving equipment, that proven as most reliable and safety in the sport.
- Page 3 This Acro Base system is not working with the standard speed systems. To use a speed system on Acro Base Harness, you need to set up the manufacturer speed bar release system. Towing with Acro Base - the harness does not have special point for towing. If you use it for towing you need to attach the towing system so, that cut away system ( 3-Ring and cut away handle) stay away and clear from the towing mechanism.
- Page 4 1. Cut Away System and second rescue Acro Base Harness use the most popular and safety system from skydiving - the 3-Ring System and Rescue Static Line (RSL). Soft-Type Free Bag Cut away handle Second rescue line Second rescue handle...
- Page 5 CHECK IF THE CUT AWAY CABLE IS PASSING TROUGH BOT HOSING 1.2. The 3-ring System set up Attach the rescue risers. Make this on both sides of the harness. Use a packing line to pas it trough the loop. Pass the big ring trough the karabiner firs and after that the small ring trough the big one.
- Page 6 After that pass the packing line, from bottom to top, trough the loop, the small ring and the grommet. Lock with the yellow cut away handle cable. Put the end into the chest strap pocket. !!! DON`T FORGET TO MAKE THIS ON BOTH SIDES OF THE HARNESS TAKE OUT THE PACKING LINE!!!
- Page 7 Second rescue attachment Magnet Pocket NOTE: magnets should be placed inside the magnet pocket. !!! DON`T FORGET TO MAKE THIS ON BOTH SIDES OF THE HARNESS TAKE OUT THE PACKING LINE!!!
- Page 8 After you are ready with the set up of the Cut Away System, hang up your harness somewhere to test how the Cut Away System is working. And make some exercise for cut away. We highly recommend every pilot, no matter what experience it has, to try the correct work of the cut away system on the ground.
- Page 9 After you finish with the ground test of the Cut Away System and at least one cut away exercise, you can go for assemble your rescue parachute. If you cannot assemble and pack your rescue parachute, please contact an authorized competent skydiver rigger. 2.
- Page 10 Take 2 packing lines and close the rescue container covers as sown on the pictures bellow. At first close Top flap (T1) with the right site top grommet (T2) and after that the bottom cover (B1) with the right site bottom grommet ( B2). After that go trough the left site cover top grommet ( T3) and then trough left site bottom grommet (B3).
- Page 11 3. Set Up of the rescue parachute under the seat (round canopy) Pack your second rescue parachute as per manufacturer manual. Put it into the container and connect the handle on the side. After that, connect the rescue belt with the risers.
- Page 12 After you finish with the assemble of the both rescues you can attach your paraglider. 4. Main wing attachment After you sit in your harness and adjust the shoulder straps, stick with Velcro the RLS to the neoprene cover as sown on the picture: Attach the left riser of your paraglider to the left karabiner and tighten it.
- Page 13 !!! Your harness is ready !!! !!! ENJOY YOUR FLIGHT, AND DON`T FORGET THE MOST IMPORTANT - THE SAFETY !!! AVA Sport Ltd Zahari Stoianov str. 44 3400-Montana BULGARIA avasport@avasportcentral.com www.avasportcentral.com...
