Summary of Contents for HQST HQST-KIT-STCS100D-10A

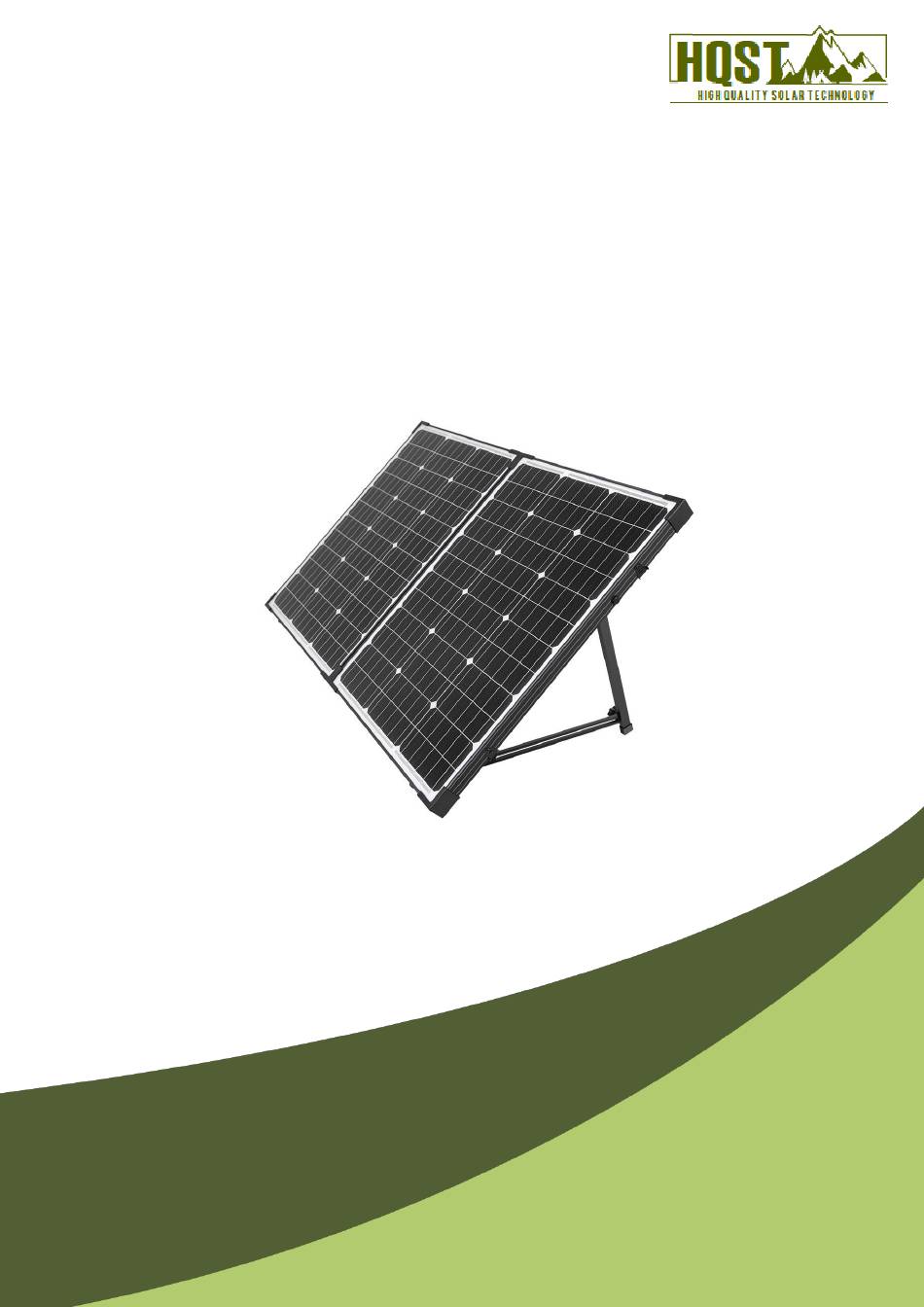

- Page 1 HQST 100W Monocrystalline Solar Suitcase User Manual...
- Page 2 2. Highly efficient monocrystalline panels in aluminum protective casing 3. Includes traveling case 4. Included HQST 10A controller for 12V and 24V systems 5. An upgraded 3-stage PWM charging algorithm is adopted. Application of an equalizing charging to the battery periodically or when over discharged, can effectively prevent the battery from non-equalization and sulfating, thus extending the battery's service life.
- Page 3 Solar Panel Structure Tilt Stand Handle Aluminum Frame Installation Instructions and Precautions Unfold panel and lock butterfly washer when tilt angle desired...
- Page 4 Controller Operation Instructions a) Step 2: Connect the battery. If the connection is correct, the controller screen lights up; otherwise, check whether the connection is correct. b) Step 3: Connect the solar panel. If sunlight is present and strong enough (the solar panel voltage is greater than battery voltage), the sun icon on the LCD screen is on;...
- Page 5 Browsing Menu on LCD Screen The following menus are shown in an automatic cycle on the screen, with an interval of 3s. Setting Menu on LCD Screen Long press the key in any mode to enter the load mode setting interface, and the load mode begins to flash. Short press the key to adjust the load mode, and long press the key again to save and exit mode setting or wait for 10s to let the system save and exit automatically.
- Page 6 2. Light control + time control (1 to 14): The starting process is the same as pure light control. After operating for a preset period of time (settable from 1 to 14 hours), the load stops operation automatically. 3. Manual mode (15): In this mode, the user can switch the load on or off by the key, no matter whether it's day or night. 4.
- Page 7 Error Code List Code on LCD screen Corresponding error No error battery over-discharging battery overvoltage Load short circuit Overload Controller inner temperature over heat Common Problems and Solutions Symptoms Causes and Solutions LCD screen does not light up. Check whether the battery is correctly connected. Check whether the ambient temperature is too low and whether Incomplete display or no renewal on LCD screen the display recovers when the temperature rises.
- Page 8 Charge Controller Technical Data Sheet Rated current current display function System voltage Automatic recognition of 12 V/ 24 V No-load loss < 10mA/12V；< 12mA/24V Max. Solar energy input voltage <55V Max. voltage <35V at the battery end Overvoltage protection 17.0V；× 2/24V； Equalizing charging 14.6V；×...
