GRS Silentair 50-15 Instructions

Silentair 50-15
PART #004-678

PACKAGE CONTENTS

The Silentair compressor comes in two boxes.
Box #1 (Small Box) Contains:
• Compressor Fan – (#004-693)
• 1 Bottle of Silentair Synthetic Oil,
with Applicator Spout – (#022-163)
• Silentair Reservoir Bottle
Box #2 (Large Box) Contains:
• Silentair Compressor Assembly,
with Coalescing Filter
• Silentair Regulator / Primary Filter
• 2 Rolls of Nylon Tubing
• Packet of Threaded Fastener*, Short Clear
Hose*, and Black Air Intake Filter —
Attached to Red Cap on Compressor
*Not used for this application.
8
9
NOTE: The air filter will empty contents of
bowl into the Reservoir Bottle. The bottle
will need to be checked and emptied often to
avoid overfilling.
5
7
6
1 Regulator Air Filter
2 Standing T-Fitting
3 Air Pressure Gauge
4 2 Lock Nuts
5 Tubing B Connector
(to Engraving System)
6 Coalescing Filter
7 U-Bolt
8 Buffer Air Tubing A
9 Air Filter Clean-out
Reservoir Bottle
NOTE: Before using this compressor, read all
instructions to avoid DAMAGE.
Installation
7
7

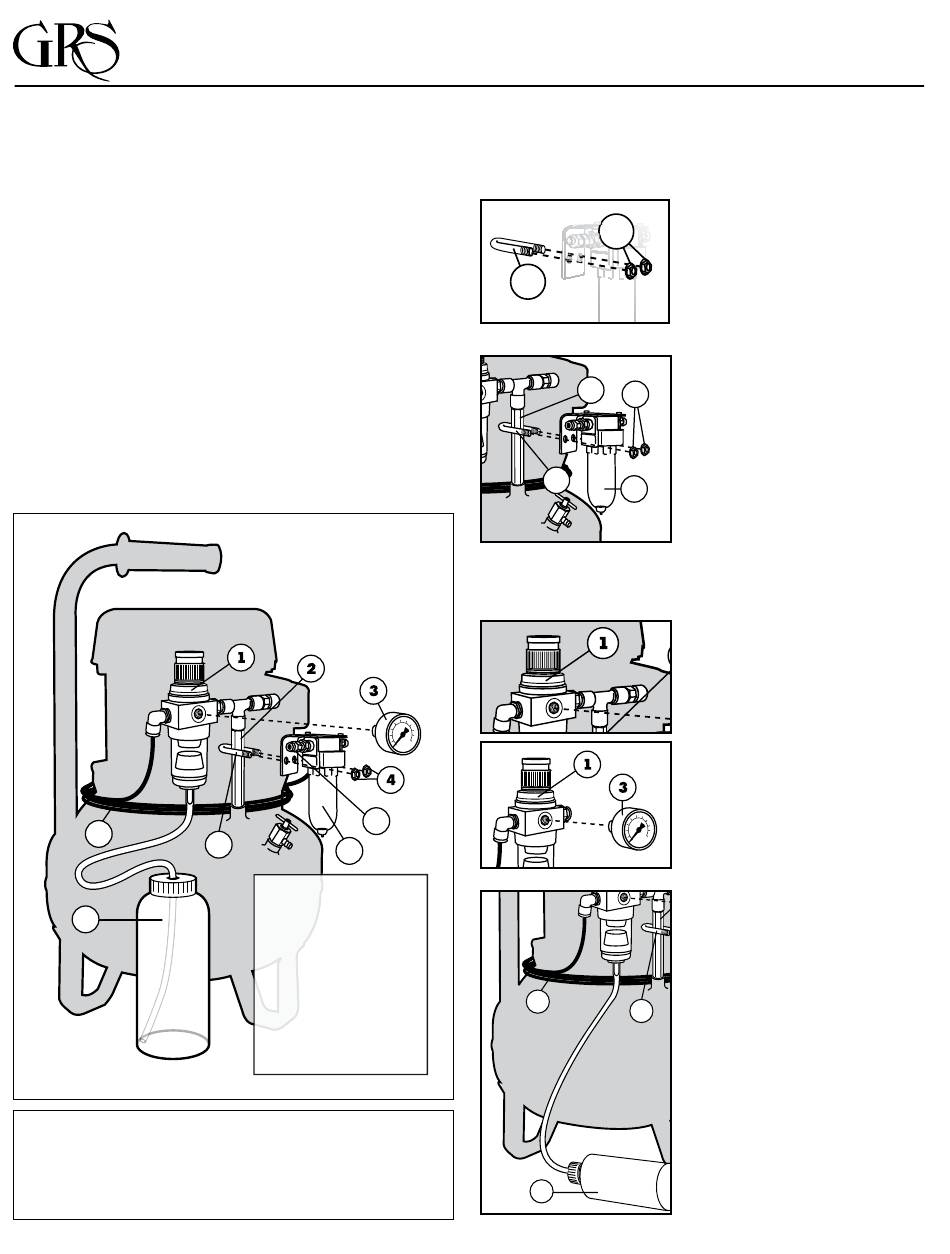

Fig. A
NOTE: For most secure fit, place back of bracket
against a flat side of the Standing T-Fitting.
8
7
8
9
9
INSTRUCTIONS
1. Begin by installing the
Coalescing Filter (Fig. A–6).
4
Remove the 2 Lock Nuts
(Fig. A–4) that hold the
U-bolt (Fig. A–7) on the
bracket.
2. Wrap the U-bolt (Fig.
A–7) around the Standing
2
4
T-Fitting (Fig. A–2) that rises
out of the air tank. Slide the
Coalescing Filter bracket
onto the threads. Use your
6 fingers to tighten the nuts
evenly first, then use a 7/16"
wrench to tighten.
3. Install the Silentair
Regulator Air Filter (Fig.
A–1) by threading it onto
the pipe nut located on
the T-Fitting. Do not over
tighten!
4. Install the Air Pressure
Gauge (Fig. A–3) by simply
threading the gauge into the
5
fitting below the Air Filter
6
(Fig. A–1) as shown.
5. Install the Silentair
Reservoir Bottle (Fig. A–9)
by pushing the bowl drain
hose into the hole in the cap
of the bottle.
7
6
NOTE: Located on the
side of the compressor top
cover is a red protector
cap covering the air intake
opening, red warning label
and zip-lock bag. Unthread
the red protector cap and
remove the tag and bag.
5
LIT-073
