SANDIA aerospace SAFE 328 Installation Instructions

SAFE 328
Avionics Cooling Fan
With Fault Detection
1.0 I
NTRODUCTION
This sheet describes the installation of the SAFE 328 Blower with fault detection output. It is intended for use
by FAA certified repair stations to install the SAFE 328 and includes both mechanical and electrical installation
information. The installer should insure that the SAFE 328 is operating according to its intended function.
1.1 P D
RODUCT ESCRIPTION
The SAFE 328 is an avionics cooling fan that provides an operating indication. When the fan is normally
operating, this output is at low impedance. The output goes to high impedance whenever the RPM of the
motor drops below a preset threshold, signaling the connected avionics of the reduction in cooling from the
SAFE 328.
1.2 T C
ECHNICAL HARACTERISTICS
1.2.1 P C
HYSICAL HARACTERISTICS
Width
Depth
1.2.2 O C
PERATIONAL
Operating Voltage
Current
Air Flow (All Ports)
Operating Temp
Max Operating Altitude
1.2.3 C
ERTIFICATION
FAA-PMA
DO 160D
SANDIA aerospace
Albuquerque, New Mexico
www.sandia.aero
INSTALLATION INSTRUCTIONS
1.25"
5.58"

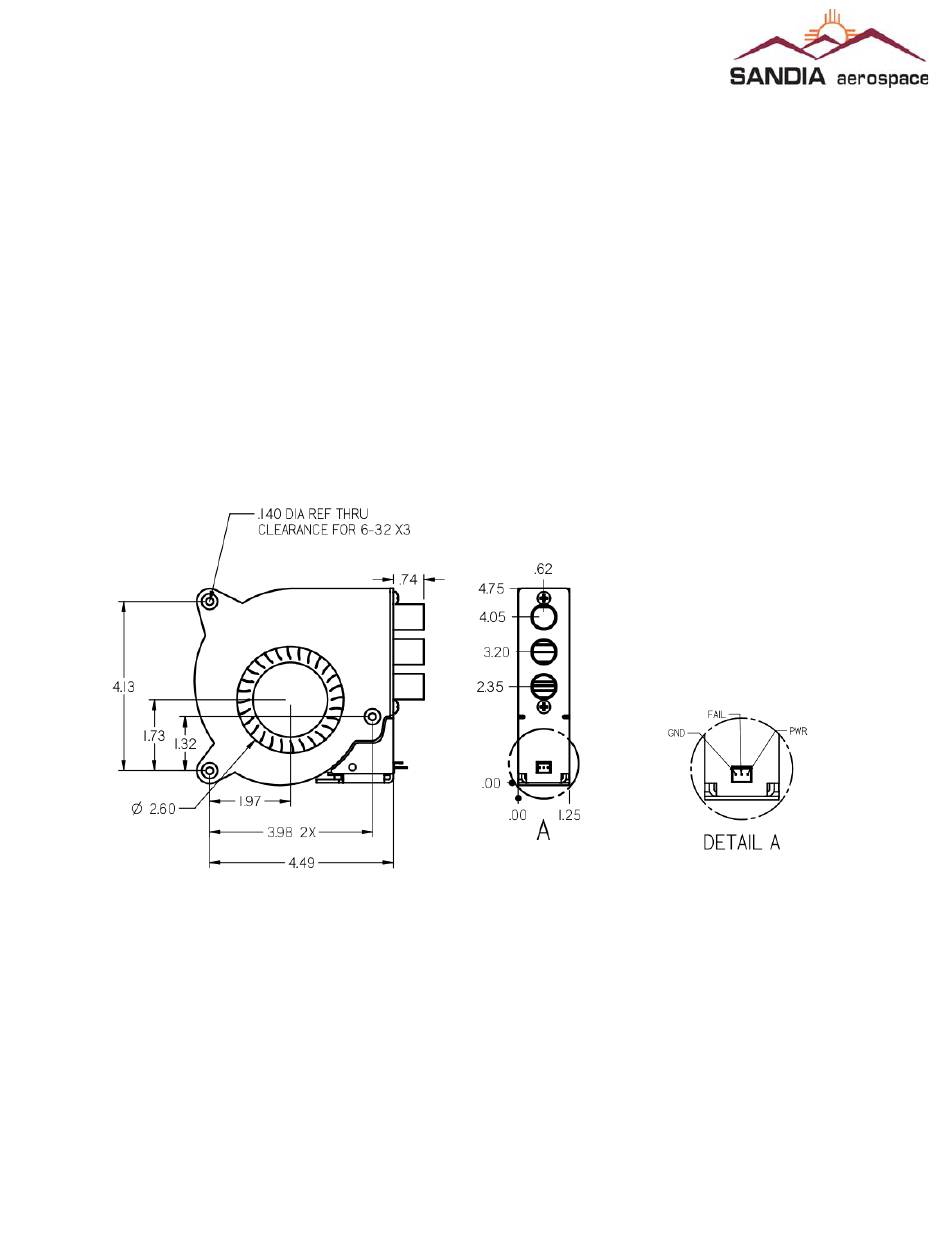

Dimensional Drawing
HARACTERISTICS
22-31Vdc
Operating .400 Amps Nominal
Start-up
20 CFM No Static Pressure (10CFM @ .08 H
-20 to +55
55,000 Feet
PQ0894SW Diamond DA40
[F1]BAA[S2R2U(F,B2,M)]XXXXXXZBAZA[XX]M[XXXX][XX]XX
Height 4.75"
Weight 0.7 lb
Figure 1
.550 Amps
o
C
O Static Pressure)
2
305467-00-IS
Rev. D 06/25-13
ECN 3987
