Summary of Contents for Laizhou Huibang Machinery MS36127A3

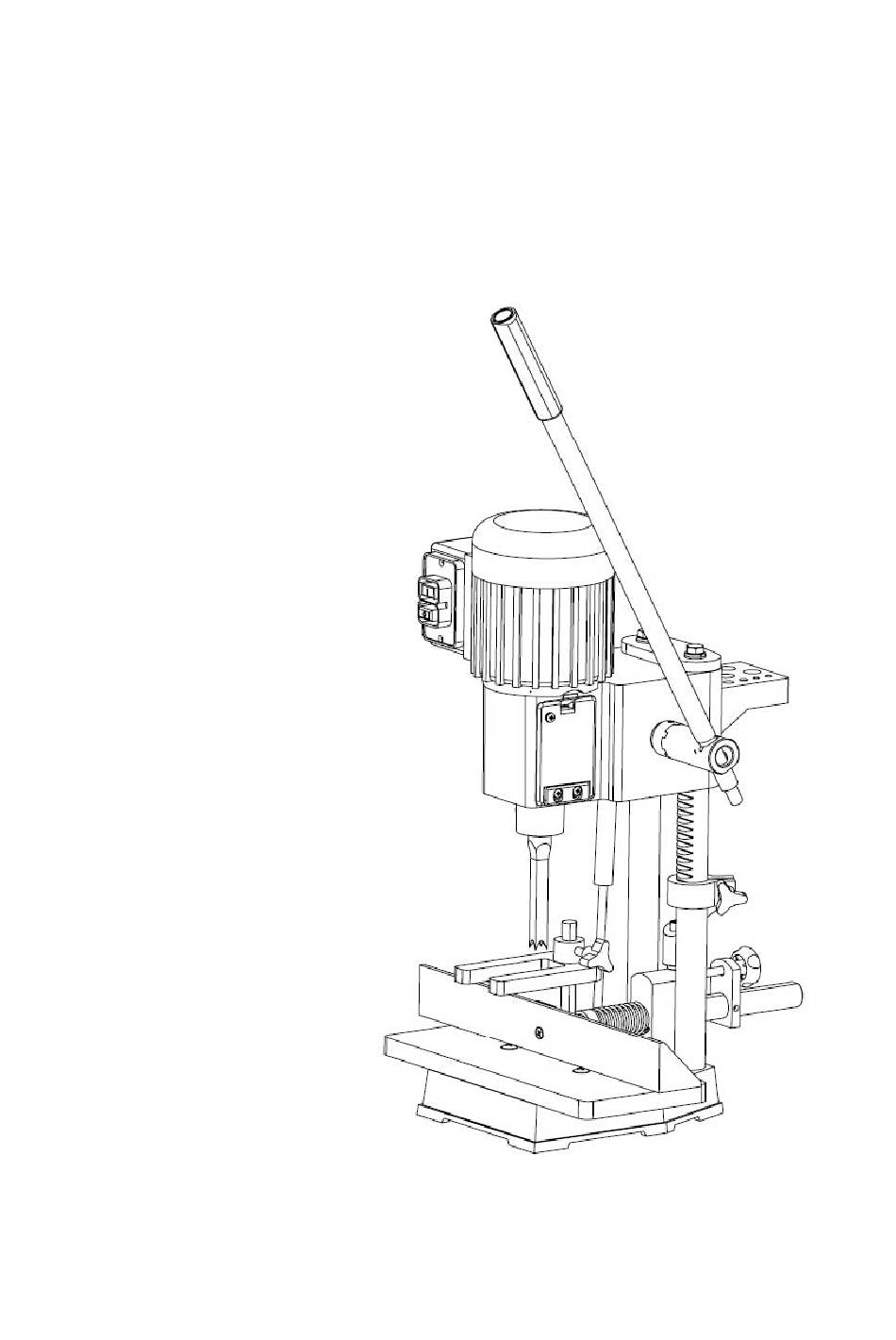

- Page 1 HOLLOW CHISEL MORTISER MODEL MS36127A3 OWNER’S OPERATING MANUAL & SERVICE INSTRUCTIONS CAUTION: Read the instruction manual before using the appliance...
-
Page 2: General Safety Rules
GENERAL SAFETY RULES 1. Keep work area clear. Cluttered areas and benches invite injuries. 2. Consider work area environment. Do not expose tools to rain. Do not use tool in damp or wet locations. Keep work area well lit. Do not use tools in the presence of flammable liquids or gases. 3. - Page 3 21. Warning. The use of any accessory or attachment other than one recommended in this instruction manual may present a risk of personal injury. 22. Have your tool repaired by a qualified person. This electric tool complies with the relevant safety rules. Repairs should only be carried out by qualified persons using original spare parts, otherwise this may result in considerable danger to the user.
- Page 4 9. ALWAYS support workpiece securely against fence to prevent rotation. 10. BE SURE drill bit is sharp, not damaged, and properly secured in the chuck before operation. 11. MAKE SURE chuck key is removed before starting machine. 12. NEVER turn on the power with the drill bit or chisel contacting the workpiece. 13.
-
Page 5: Power Connections
POWER CONNECTIONS A separate electrical circuit should be used for your tools. If an extension cord is used, use only 3-wire extension cords, which have grounding type plugs and receptacles, which accept the tool’s plug. Before connecting the motor to the power line, make sure the switch is in the “OFF”... -
Page 6: Unpacking And Cleaning
Model MS36127A3 is easier to operate than a conventional drill press equipped with a mortising attachment. The model MS36127A3 is made of cast-iron and steel for rigidity and stability. The mortiser comes with a standard 3-jaw type key chuck for positive gripping of mortising bits. -
Page 7: Gas Spring
1/16” – 1/2” （ Drill Chuck Capacity 1-13mm） 3/4” （19.05mm） Bushing size 6” x 13 1/4” （ Table size 340x150mm） 60 lbs. （ Weight 27kg） ASSEMBLY WARNING: FOR YOUR OWN SAFETY, DO NOT CONNECT THE MACHINE TO THE POWER SOURCE UNTIL THE MACHINE IS COMPLETELY ASSEMBLED AND YOU READ AND UNDERSTAND THE ENTIRE INSTRUCTION MANUAL. - Page 8 Fig4 Fig5 2. Fig. 5, illustrates the gas spring (B) assembled to the machine. The gas spring (B) keeps the head in the up position. TABLE 1. Assemble the table (A) Fig. 6, to the base using the two M6x1x35mm flat head screws (B) Insert the two screws (B) into the two holes (D) in table (A).
-
Page 9: Operating Controls And Adjustments
6. Insert bar (F) Fig. 7, into hole on top of fence as shown, and tighten set screw (G) against flat on bar (F). 7. Assemble the holddown (H) Fig. 7, onto bar (F) as shown, and tighten set screw (J) against flat on bar. TOOL AND CHISEL HOLDER 1. -
Page 10: Depth Stop
FENCE The fence (A) Fig. 10, can be moved in or out by loosening lever (B), sliding fence to the desired position and tightening lever (B). NOTE: Lever (B) is spring-loaded and can be repositioned by pulling out on the lever and repositioning it on the serrated nut located underneath the lever. - Page 11 Dust the machine down after each use and, as necessary, use light applications of oil or grease to lubricate linkages, moving parts, etc. SHARPENING CHISEL & BIT The chisel and bit should be kept sharp for best performance. Blunt edges will give inaccurate mortises and can lead to overheating and breakage to chisel or bit.
- Page 12 Parts Diagram...
- Page 13 Parts List...
- Page 14 Part NO. DESCRIP Part NO. DESCRIP Q’TY Q’TY TION TION Lock Handle Washer Bolt Gear Base Screw Connectin g Bend A Screw Cover Fence Spring Guide Screw Column Collar Connectin g Bend B Spring Gear Column Stop Guide Bracket Column Set Screw Depth Set Handle...
-
Page 15: Wiring Diagram
Motor Screw Bolt Screw Lock Gas Spring Washer Step Plate Screw WIRING DIAGRAM...
