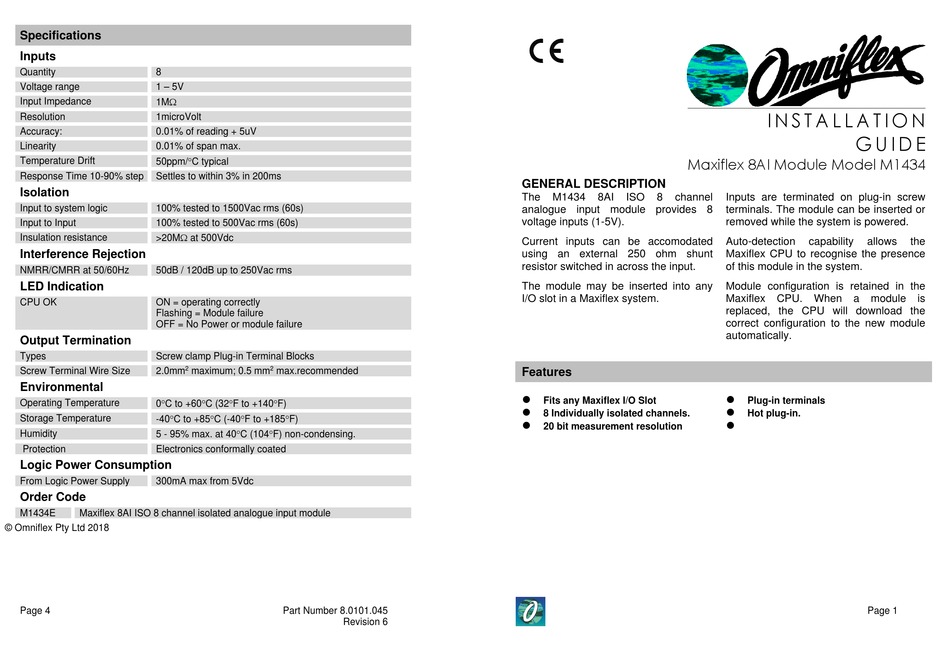

Omniflex Maxiflex M1434 Installation Manual

Specifications
Inputs
Quantity 8
1 – 5V
Voltage range
Input Impedance 1M
Resolution 1microVolt
Accuracy: 0.01% of reading + 5uV
Linearity 0.01% of span max.
Temperature Drift
50ppm/C typical
Response Time 10-90% step Settles to within 3% in 200ms
Isolation
Input to system logic 100% tested to 1500Vac rms (60s)
Input to Input 100% tested to 500Vac rms (60s)
Insulation resistance >20M at 500Vdc
Interference Rejection
NMRR/CMRR at 50/60Hz 50dB / 120dB up to 250Vac rms
LED Indication
CPU OK ON = operating correctly
Flashing = Module failure
OFF = No Power or module failure
Output Termination
Types Screw clamp Plug-in Terminal Blocks
Screw Terminal Wire Size 2.0mm
Environmental
Operating Temperature
0C to +60C (32F to +140F)
Storage Temperature -40C to +85C (-40F to +185F)
Humidity
5 - 95% max. at 40C (104F) non-condensing.
Protection Electronics conformally coated
Logic Power Consumption
From Logic Power Supply 300mA max from 5Vdc
Order Code
M1434E Maxiflex 8AI ISO 8 channel isolated analogue input module
© Omniflex Pty Ltd 2018
Page 4
2 2
maximum; 0.5 mm max.recommended
Part Number 8.0101.045
Revision 6
Maxiflex 8AI Module Model M1434
GENERAL DESCRIPTION
The M1434 8AI ISO 8 channel
analogue input module provides 8
voltage inputs (1-5V).
Current inputs can be accomodated
using an external 250 ohm shunt
resistor switched in across the input.
The module may be inserted into any
I/O slot in a Maxiflex system.
Features

Fits any Maxiflex I/O Slot

8 Individually isolated channels.

20 bit measurement resolution
I N S T A L L A T I O N
G U I D E
Inputs are terminated on plug-in screw
terminals. The module can be inserted or
removed while the system is powered.
Auto-detection capability allows
Maxiflex CPU to recognise the presence
of this module in the system.
Module configuration is retained in the
Maxiflex CPU. When a module
replaced, the CPU will download the
correct configuration to the new module
automatically.

Plug-in terminals

Hot plug-in.

Page 1
the
is
