Summary of Contents for H. B. Fuller Cyberbond CB LINOP U 500

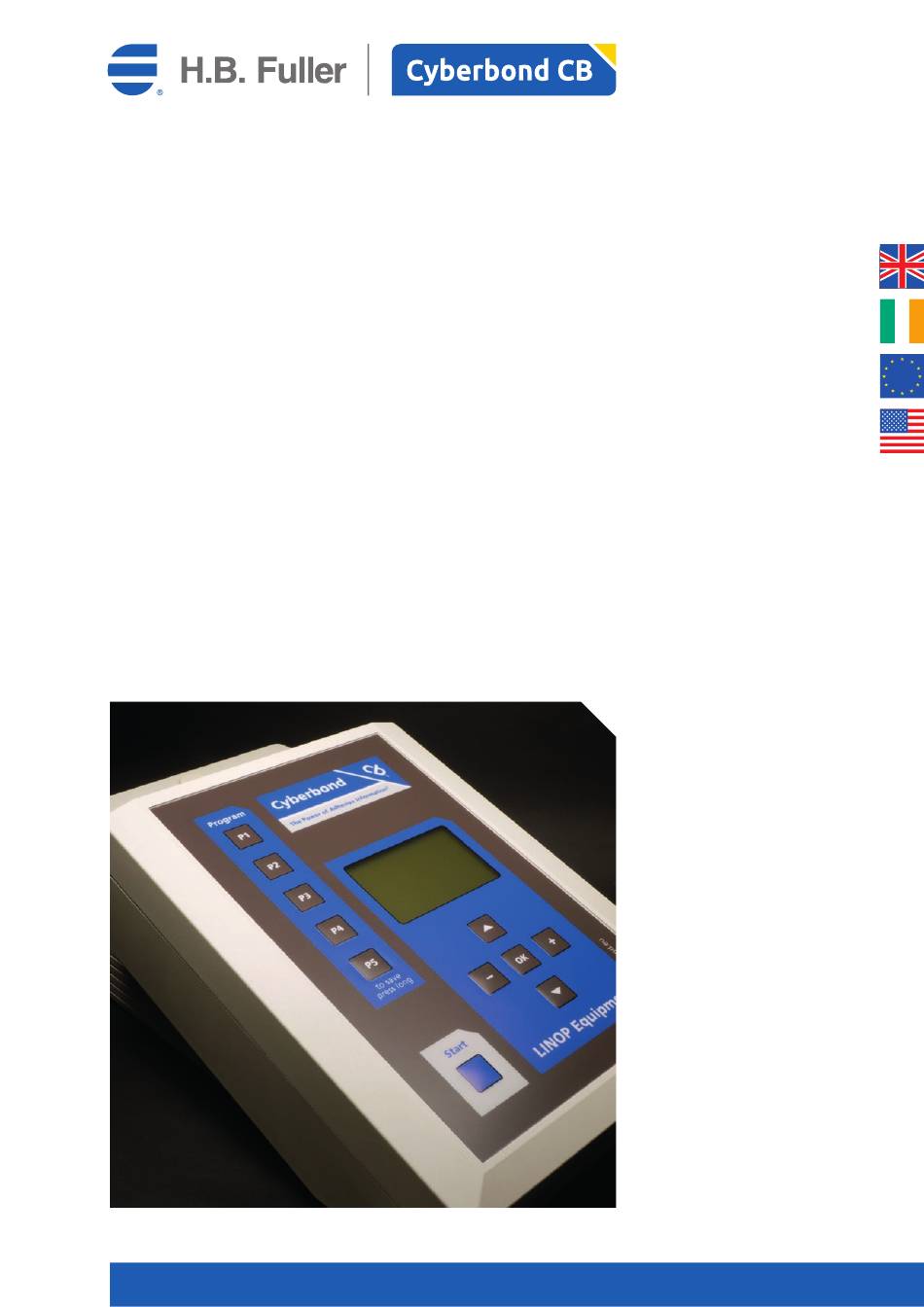

- Page 1 LINOP U 500 Operating Instructions Control Unit for Cyberbond UV Curing Systems including Cyberlite 50 S and Cyberlite 4 S Cyberbond CB...
- Page 2 LINOP U 500 The described Equipment Control Unit LINOP U 500 LED lamp LINOP Cyberlite 50 S Multiplier/Amplifier BoosterPack 13 A LED lamp LINOP Cyberlite 4 S Multiplier LINOP Splitter Cyberbond LINOP U 500 / Operating Instructions Page 2 Cyberbond CB...
-
Page 3: Table Of Contents
LINOP U 500 Table of contents Advance Information ........................... 4 LINOP U 500 ............................4 Cyberlite 50 S and Cyberlite 4 S LED lamps ..................4 Technical data LINOP Cyberlite 50 S ....................5 Technical data LINOP Cyberlie 4 S ....................... 5 Safety precautions and warning notice .................... -
Page 4: Advance Information
LINOP U 500 Advance Information LINOP U 500 The LIN-Bus controlled LINOP U 500 can be chosen as a table unit or is taken when directly used in a PLC controlled production line. Sensor technique helps exact fault finding in the range of lighting. LINOP U 500 is optional equipped with a flexible arm. -
Page 5: Technical Data Linop Cyberlite 50 S
LINOP U 500 Technical data LINOP Cyberlite 50 S LINOP Cyberlite 50 S Peak wave length approx. 395 nm Light spectrum approx. 380 bis 440 nm Intensity of light, lower edge mirror approx. 210 mW / cm - of that in UVA range (380 to 400 nm) approx. -
Page 6: Safety Precautions And Warning Notice
LINOP U 500 Safety precautions and warning notice • The unit must always be operated according to the manufacturer’s instructions for use. • The unit must be operated by, staff who have been trained and who are authorised. They must know the operating instructions and operate the unit accordingly. •... -
Page 7: Ce Compliance
LINOP U 500 CE Compliance Cyberbond confirms: CE Compliance for LINOP dosing and curing systems M 600, M 1500, M 2000, U 500, Cyberlite 4 S, Cyberlite 50 S, BoosterPack 13 A, Splitter Cyberbond Europe, the distributor of its in-house developed dosing and curing systems, hereby certifies that these products comply with all safety-related requirements according to the following applicable EC Regulations: Council Directives... -
Page 8: Structure
LINOP U 500 Structure Control Unit: • LINOP U 500 for Cyberlite 50 S or Cyberlite 4 S LED lamp Lamp systems with self-regulating intensity and LIN-Bus standard: • Cyberlite 50 S LED lamp with 4 power LEDs • BoosterPack 13 A Multiplier/Amplifier to connect up to 5 Cyberlite 50 S Lamp systems without self-regulating intensity and without LIN-Bus standard: •... -
Page 9: Cyberlite 50 S With Boosterpack (Lin-Bus Standard)
LINOP U 500 Cyberlite 50 S with BoosterPack (LIN-Bus standard) A BoosterPack is an electrical amplifier as well as a manifold for various lamps. The first BoosterPack must be connected with the control unit LINOP U 500. Then the BoosterPack can control up to 5 Cyberlite 50 S lamps. The current supply comes separate, not from the control unit. -
Page 10: Cyberlite 4 S Without Splitter
LINOP U 500 Cyberlite 4 S without Splitter In case you want to work with the Cyberlite 4 S LED spots, a LIN-Bus controlled system is not available. The control unit LINOP U 500 can be equipped with in maximum 3 Cyberlite 4 S lamps. LINOP U 500 w. -
Page 11: Erase Of The Lamps
LINOP U 500 Erase of the lamps Attention! It can be necessary to erase Cyberlite 50 S lamps from the LINOP U 500 control unit in order to clear the memory, because a lamp will be replaced by another one. If you don’t delete the former lamp, Safety precaution for device: the system would try to seek it and would give you a defect note. -
Page 12: Navigation
LINOP U 500 Navigation Note! Û To manage the navigation within the menu you use the keys “Ü“, “ “, “+“ = right and “-“ = left. Important information: By pushing the key “OK” you are able to change to different menu levels. In each level the individual figures The arrows at the top edge of the display (time, intensity etc.) can be chosen and confirmed by using the keys“+“... -
Page 13: Main Menu
LINOP U 500 Main Menu By pushing the “OK” button you reach the <auto> or <man> mode. By pushing the “+“ and “-“ keys you can change this mode. auto: after pushing the “Start“ button the con- nected lamps will illuminate for the predetermined time. -
Page 14: Information Menu
LINOP U 500 Information Menu In each information menu you can see the status, the temperature and the intensity of a connected lamp. These shown values cannot be changed. They will be permanently actualised 01: lamp No. 02, 03, …, 15 Cyberlite 50 S: name of connected lamp status: <o.k.>all is fine,... -
Page 15: To Start Illumination Time
LINOP U 500 To start illumination time Danger! By working with UV lamps the following hazards and pre-cautions should be considered: Safety precaution for health: • Risk of injury of the eyes and the skin To start the illumination process push the “Start“ button or the connected foot switch [see Chapter 11.4]. -
Page 16: Interfaces
LINOP U 500 11 Interfaces At the rear side of the control unit LINOP U 500 you can see the interfaces in order to connect the system with other components. 11.1 DC 24 V IN Port for supply unit 24 V DC / minimum 3 A 11.2 LIN-Bus Note! Port for a LIN-Bus gear such as the Cyberlite 50 S or the BoosterPack 13 A. -
Page 17: Digital-Interface Dc 24 V
LINOP U 500 11.5 Digital-Interface DC 24 V The Digital-Interface is necessary if you want to connect the whole system with a PLC. The following messages and signals can be used: Start: in the <man.> mode the signal the the “start-input” determines how long the lamps are switched on. -
Page 18: Technical Data Linop U 500
LINOP U 500 12 Technical data LINOP U 500 Technical data LINOP U 500 Supply voltage external power adapter 100 – 240 V 50 Hz/60 Hz, min. 3 A exit Supply voltage LINOP U 500 24 V / DC Safety class Type of protection Current demand 2 W without UV-LED, ca. -
Page 19: Linop Item Numbers
LINOP U 500 13 LINOP Item Numbers LINOP Dosing and Curing Equipment LINOP M 600 10100 LINOP M 1500 10200 LINOP M 2000 10300 LINOP U 500 10500 power supply unit 10190 cord for power supply unit (EU standard) 10191 flexible arm 10192 valve plate (to hold valve M 1500 / M 2000 &... - Page 20 LINOP U 500 product tube PTFE, 2,5 mm outside (per meter) 60200 adapter as tube connection / Luer Lock for 2,5 mm tube 60250 product tube PTFE, 4 mm outside (per meter) 60400 adapter as tube connection / Luer Lock for 4 mm tube 60450 UV product tube PTFE, 4 mm outside (per meter) 60401...
- Page 21 LINOP U 500 Imprint Cyberbond L.L.C. Exclusion of Liability 401 North Raddant Road Cyberbond guarantees that LINOP Dispensing and Batavia, IL 60510, Operating Instructions Curing Equipment is fully operational when handled in LINOP U 400 an appropriate way and Cyberbond products are used. Nevertheless we refer to the Operation Instructions of phone: +1 / 630 / 761 –...
