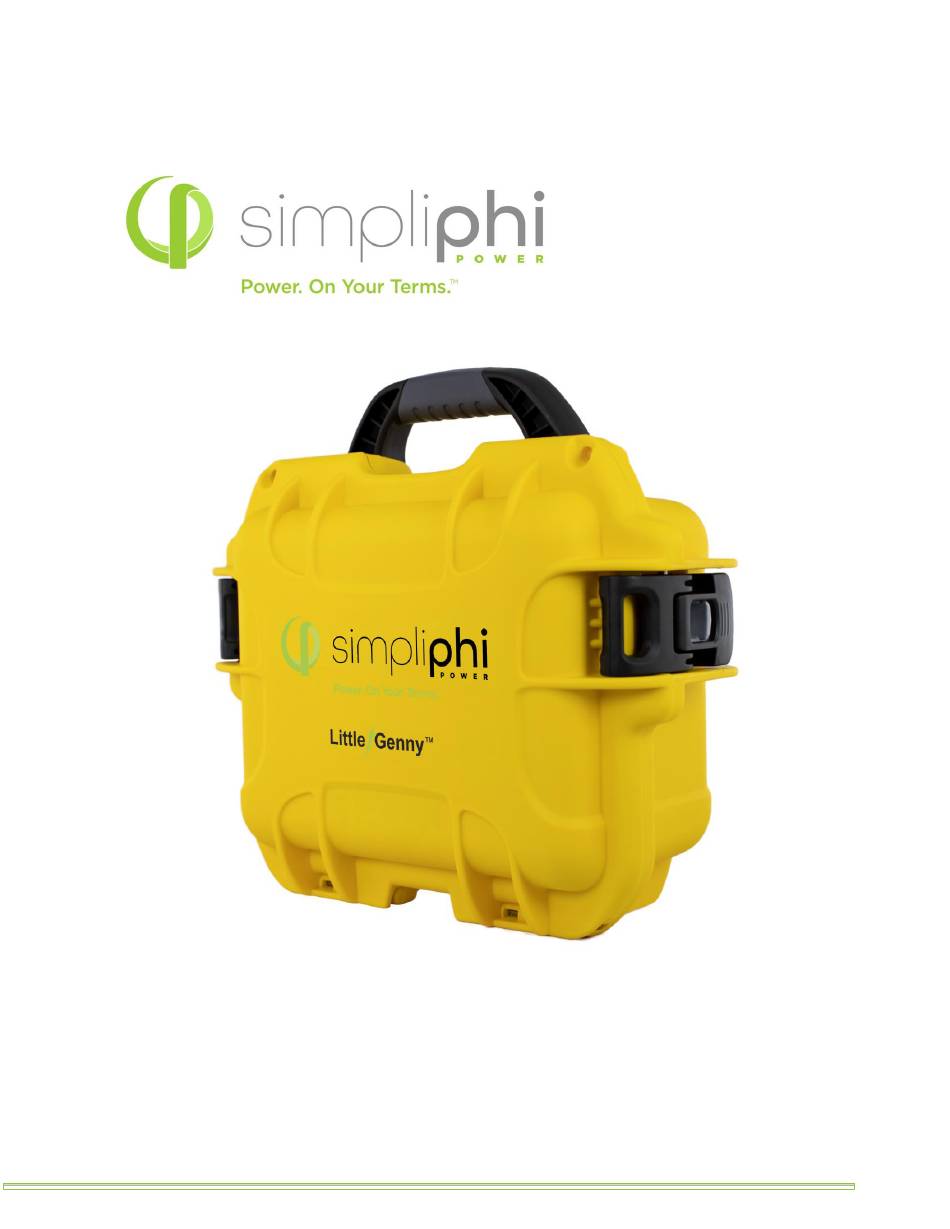

- Page 1 OPERATOR’S MANUAL LITTLE GENNY www.simpliphipower.com • techsupport@simpliphipower.com...
-
Page 2: Table Of Contents
Product Details: The Little Genny’s Power Inverter 3. OPERATION AC Outlets’ Operation USB Outlet Operation Charging using the Little Genny’s Plug-In AC Charger Charging using the Little Genny Emergency Power Kit’s Portable Solar Module 4. SPECIFICATIONS 5. TROUBLESHOOTING • 805-640-6700 techsupport@simpliphipower.com... -
Page 3: Important Safety Information
Charging Cautions The Little Genny may be on or off to fully charge. Recharging must be done with an approved 12 VDC charger or with the special solar panel only thru the small barrel connector. A 12 VDC car accessory outlet may also be used with an optional cable (the car must be running). -
Page 4: Appliance Cautions
Route connected appliance cords and extension cords to prevent accidental pinching, crushing, abrading and tripping people. • The inverter included in the Little Genny is not tested for use with medical equipment. • The inverter included in the Little Genny is not tested for use in marine applications. -
Page 5: Product Description
(DC power) to 115-volt Pure Sine Wave alternating current (AC power). The Little Genny stores electricity from any power source (e.g. grid, solar, wind, or car) in its 12-Volt DC Lithium Ferro Phosphate (LFP) batteries, and uses that stored energy to power lighting, electronics, and other devices when normal AC grid power in not available, such as in the cases of power outages, emergencies, or field work. -
Page 6: Knowing Your Power Requirement
Power Draw (Watts) x Runtime (hours) = Energy Draw (Watt-hours) The batteries included in the Little Genny have a rated capacity of 322 total Watt-hours DC / ~257.6 Watt- hours AC (assuming an inverter efficiency of 80%). Connected loads consuming more energy than ~257.6 Watt-hours will result in low battery voltage and inverter shutdown. -
Page 7: Product Details: The Little Genny's Power Inverter
The USB outlets on the inverter are always on. The LED light on the Little Genny’s inverter indicates how full the battery is. A green LED light represents a State of Charge of 50% or greater. A yellow LED light means that the battery’s voltage is low, red is very low, and flashing red will appear just before... -
Page 8: Operation
1. After confirming that the appliance you plan on connecting to the Little Genny is turned off, plug the appliance cord into one of the two AC outlets on the front panel of the Little Genny’s inverter. 2. Turn ON the inverter. Verify that the green LED is lit. -
Page 9: Charging Using The Little Genny Emergency Power Kit's Portable Solar Module
LITTLE GENNY OPERATOR’S MANUAL | Charging using the Little Genny Emergency Power Kit’s Portable Solar Module The portable solar module is included with Little Genny EK models only; the solar module is not included with regular Little Genny models. 1. Ensure that the portable solar module is closed, so that the panels are not exposed to sunlight. -
Page 10: Specifications
AC Output Sockets 2 x North American Standard Outlets Operating / Storage Humidity RH 5 to 95% Little Genny EK’s Solar Module (not included with regular Little Genny models) Peak Output 80 Watts / 4.44 Amps at 18 VDC Solar Input 12 to 18 VDC, up to 15A 22”... -
Page 11: Troubleshooting
LITTLE GENNY OPERATOR’S MANUAL | 5. TROUBLESHOOTING Problem Possible Cause Solution There may be a short circuit inside the The inverter’s power inverter. The red LED might indicate Consult SimpliPhi regarding potential Little switch is on, the LED is lit that the inverter is in a state of Genny repair.
