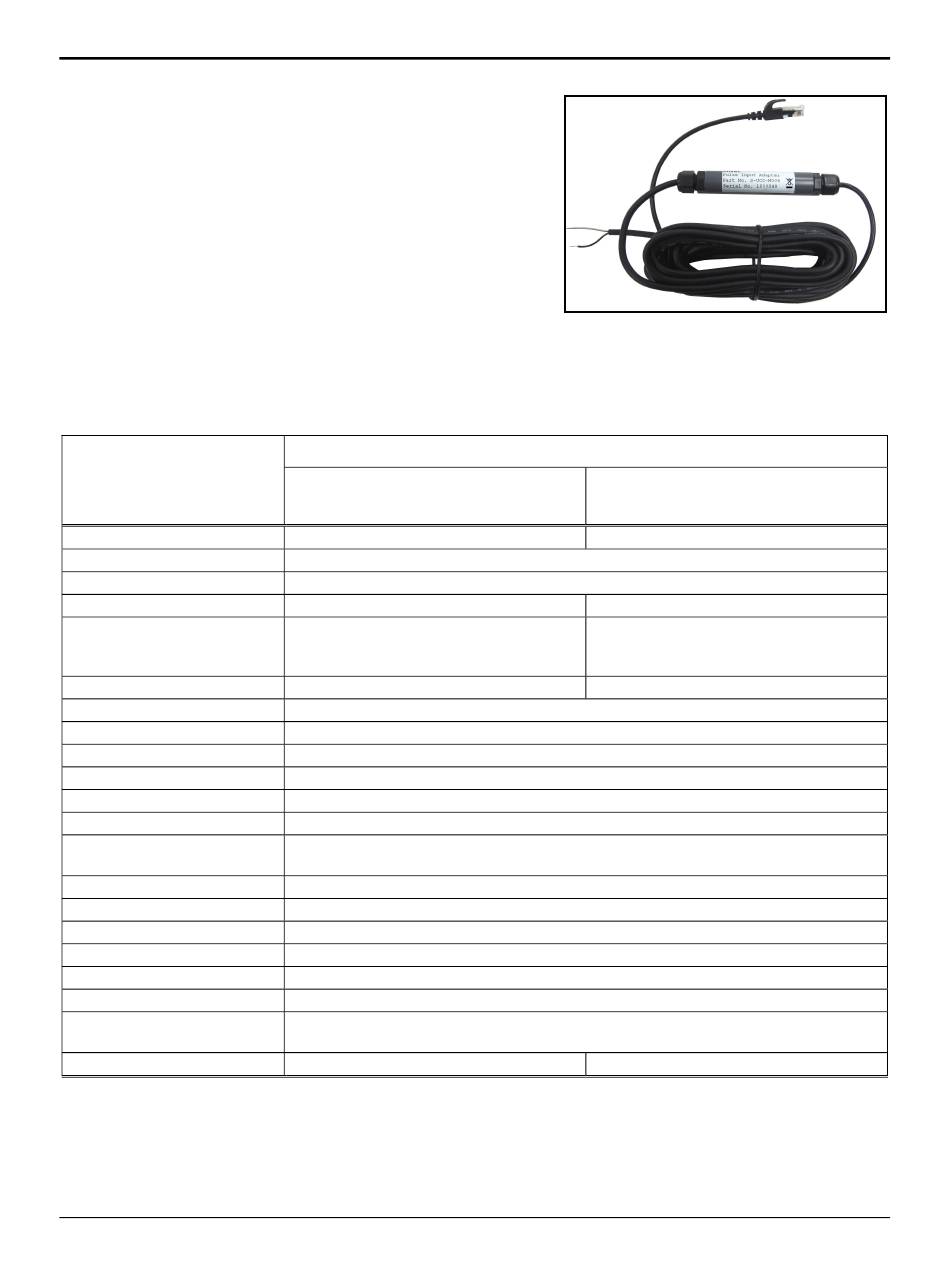

Pulse Input Adapters (Part # S-UCC/D-M006)

for use with HOBO

The Pulse Input Adapters are used to log the number of switch

closures per interval and are designed to work with smart

sensor-compatible HOBO data loggers. The adapter has a

plug-in modular connector that allows it to be added easily to

these loggers. Two versions are available: one for mechanical

contact closures (ideal for connecting tipping-bucket rain

gauges to HOBO H21 series loggers), and one for solid-state

electronic switches (used for connecting compatible pulse

output sensors to HOBO H22 series loggers).

Inside this package

• Pulse Input Adapter

• 2 wire nuts

Specification

Maximum Input Frequency

Measurement Range

Resolution

Lockout time

Recommended Input Type

†

Preferred Switch State

Edge Detection

Minimum Pulse Width

Input/Output Impedance

Open Circuit Input Voltage

Maximum Input Voltage

User Connection

Operating Temperature

Range

Overall Cable Length

Housing

Housing Dimensions

Weight

Bits per Sample

Number of Data Channels

Measurement Averaging

Option

Part Number

†

For maximum battery life, the Pulse Input Adapters should be used with their preferred switch type. The adapters

will work with active high inputs (S-UCC) and normally closed switches (S-UCD), but battery life will not be

optimized.

Part #: MAN-S-UCC/D

Doc #: 11805-A

H21 and H22 Series Data Loggers

S-UCC-M006

for Electronic Switches

120 Hz (120 pulses per second)

0 – 65,533 pulses per logging interval

1 pulse

45 µs ± 10%

Electronic solid state switch closure or

CMOS-level digital output (example:

FET, opto-FET or open collector)

Active low input

Falling edge, Schmitt Trigger buffer (logic levels: low ≤ 0.6 V, high ≥ 2.7 V)

1 ms

100 KΩ

3.3 V

3.6 V

24 AWG wires, 2 leads: white(+), black(-)

-40° to 75°C (-40° to 167°F)

6.5 m (21 ft.)

Weatherproof PVC housing protects input adapter electronics

14 x 0.95 cm (5.5 x 0.375 in.)

310 g (11 oz.)

No (reports the number of pulses over the logging interval)

S-UCC-M006

Pulse Input Adapter

for Contact Closures

2 Hz (2 pulses per second)

327 ms ± 10%

Mechanical contact closure (example:

reed switch in a tipping-bucket rain

gauge)

Normally open

S-UCD-M006

Table of Contents

Need help?

Do you have a question about the S-UCC-M006 and is the answer not in the manual?

Questions and answers

Summary of Contents for Onset Computer Corporation S-UCC-M006

Page 1 For maximum battery life, the Pulse Input Adapters should be used with their preferred switch type. The adapters will work with active high inputs (S-UCC) and normally closed switches (S-UCD), but battery life will not be optimized. © 2007 Onset Computer Corporation Part #: MAN-S-UCC/D Doc #: 11805-A...
Page 2 Pulse Input Adapters Using the Pulse Input Adapter with the H21-001 HOBO Weather Station or H21-002 HOBO Micro Station Connecting the Input Adapter Typical Setup The adapter housing should be installed outside the logger enclosure. Be sure to follow the instructions included with the logger to ensure that the logger is properly sealed where the sensor cable exits the logger enclosure.
Page 3 Pulse Input Adapters A typical setup for connecting a sensor with a mechanical switch output is shown below. H21-001 HOBO Weather Station (shown) Device with Mechanical Contact Closure Output S-UCD-M006 or H21-002 HOBO Micro Station (Tipping-Bucket Rain Gauge shown as example) Pulse Input Adapter 3.3 Volts Sensor...
Page 4 Black S-UCC-M006 Pulse Input Adapter Figure 2: 120 Hz Pulse Input Adapter (S-UCC-M006) connected to a device that has a FET switch output Note • The Pulse Input Adapters consume about 1 µA of current with the input high (switch open) and about 33 µA with the input low (switch closed).
Page 5 Pulse Input Adapters Connecting to the Logger To start using the Pulse Input Adapter, stop the logger and insert the adapter’s modular jack into an available sensor connection port on the logger. If no port is available, use a 1-to-2 sensor connection adapter (Onset Part # S-ADAPT-5), which allows you to plug two sensors into one port on the HOBO Energy Logger Pro.
Page 6 © 2007 Onset Computer Corporation. All rights reserved. Onset and HOBO are registered trademarks and Energy Logger Pro is a trademark of Onset Computer Corporation. Other products and brand names may be trademarks or registered trademarks of their respective owners.
