- Page 1 Renewable Power System – 24V Product Manual To reduce the risk of injury, users must read and understand this instructional manual which contains important information regarding the operation and warranty of this product. Please retain this manual for future reference.
- Page 2 About this Manual Purpose The purpose of this Product Manual is to provide explanations and procedures for operating, maintaining and troubleshooting the RPS. Scope This Product Manual provides safety guidelines, as well as information about operating, maintaining and troubleshooting the RPS.
-
Page 3: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS INTRODUCTION FEATURES SET-UP OPERATION MAINTENANCE TROUBLESHOOTING SPECIFICATIONS WARRANTY... -
Page 4: Important Safety Instructions
WARNING: Shock, fire and heat hazard. Risk of injury to persons. 1. Do not expose the RPS to rain, snow, spray, or water. To reduce the risk of fire hazard do not cover or obstruct the ventilation openings. Overheating may result. -
Page 5: Introduction
The RPS has been designed to provide renewable power with minimal impact on our environment and no need for fossil fuels. The RPS maximizes the use of COTS (commercial off-the-shelf) components to simplify field repairs many years into the future. -
Page 6: Features

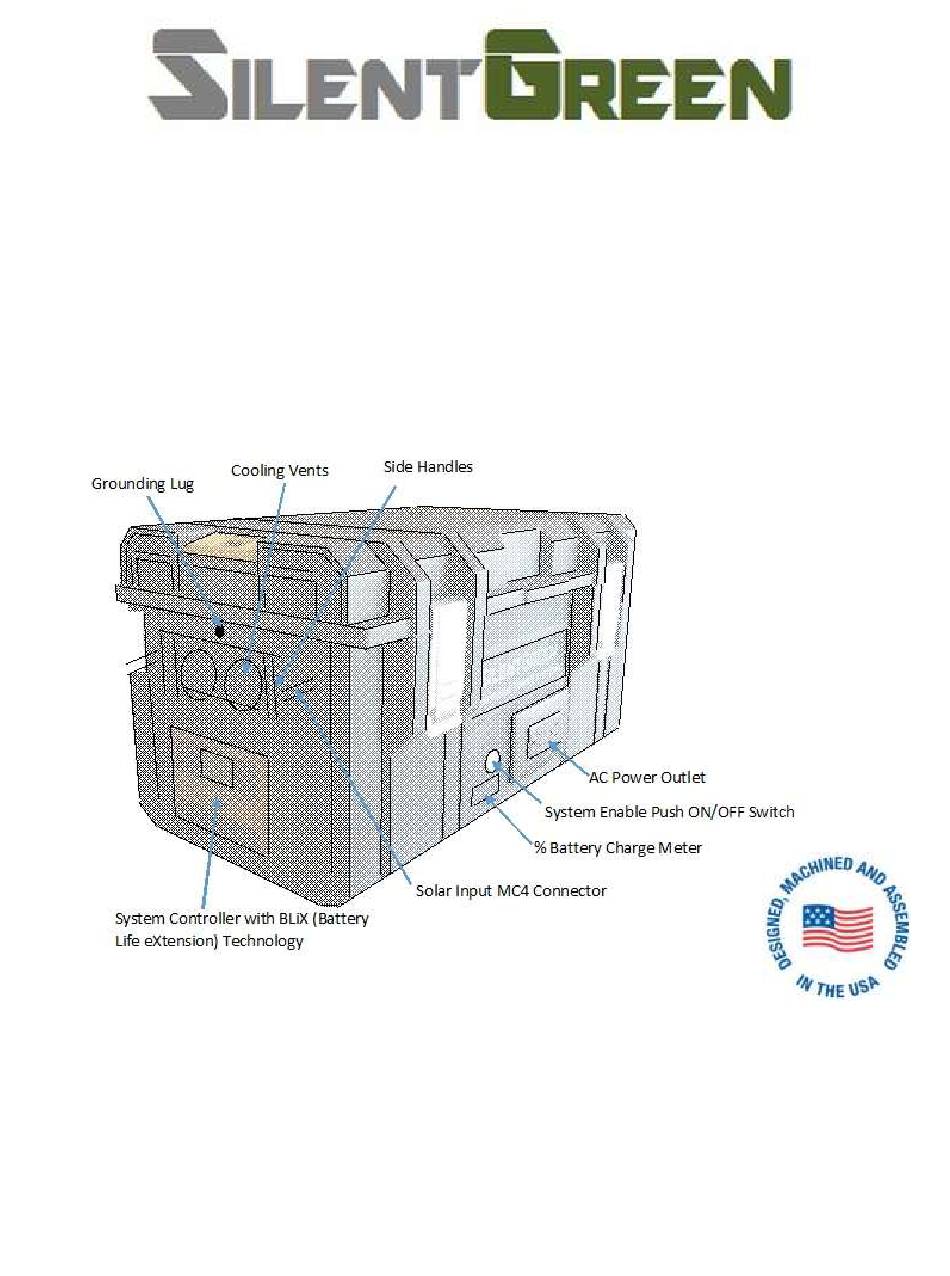

FEATURES FRONT L SIDE R SIDE AC POWER OUTLET % Battery System Enable Charge Meter Switch BOTTOM PORT for 75A 24V DC Connector (to Battery Pack) Grounding L SIDE R SIDE MAX Solar Panel input for 24V system is 800W per CONTROLLER CONTROLLER CONTROLLER,... -
Page 7: Set-Up
SET-UP Battery Pack PORT for 75A 24V DC Connector (to RPS) FRONT BOTTOM L SIDE L SIDE R SIDE BACK... - Page 8 1. Place the Battery Pack 8-10 inches away from a wall. 2. Place the RPS on top of the Battery Pack. 3. Tilt the RPS backwards so that the bottom is lifted away from the Battery Pack top, this will expose the Case Plug and allow easy connection.
- Page 9 5. Pull the Connector from the Battery Pack and connect it to the Connector from the bottom of the RPS. Make sure the connector is mated fully. 6. Gently lower the RPS onto the Battery Pack, allowing the connectors and...
- Page 10 RPS SET-UP Caution: Possible Damage to RPS Controllers when connecting Solar 1-Use a 30A fuse at each positive MC-4 input to the RPS to minimize damage to the RPS from a power surge from the solar panels. 2-Only connect the solar panel cables to the RPS when the panels are not in direct sunlight.
- Page 11 3. Connect the solar panels to the y connectors and then to the cables. 4. Run the cables from the solar panel array to the RPS. Make sure to take sufficient precautions to protect the cable from weather and pests.
- Page 12 Panel Voltage, Load Current (ignore), Solar Charge Current, Temperature in degrees Celsius. The Controller on the RIGHT side (when facing the front of the RPS) is the MASTER CONTROLLER. It controls the System Enable Switch light and actives/deactivates the AC Outlet depending on the battery voltage. The AC Outlet is ON when the System Enable Switch light is ON (green).
- Page 13 Press the LEFT button on the CONTROLLER to show the accumulated Charge Current in Ah. Sum both CONTROLLER displays for total solar input.
-
Page 17: Operation
Do not operate the RSG in areas that may contain explosive gas. CAUTION! Possible Damage to RPS Locate the RPS in a cool, dry location. Do not block the Vents as they are used to cool the inverter. Provide at least 1 foot of clearance between the cooling vents and any obstruction. - Page 18 Maximum RPS Battery Voltage swing when system is ‘sustainable’...
- Page 19 (approximately 10-15% charge level). If the System Voltage is below the sustainable voltage level (where the system turns itself off) consider reducing the equipment load on the RPS, add a Battery Pack, or another RPS. If the System Voltage cannot support the energy needs during sunlight hours,...
-
Page 20: Maintenance
Emergency Power If AC Power is required after the RPS disables the AC Outlet, it is possible to override the battery life extension feature (BLiX) by pressing the RIGHT button on the RIGHT Controller for one second. This will override the Controller and run the battery to 20 V at which time the inverter will alarm and then self-power down. -
Page 21: Troubleshooting
Check fuse block at positive 300A Fuse Blown inverter terminal (inside case) Inverter Overloaded or If operating the RPS at high overheated loads or at high temperatures, wait several minutes to allow the inverter to cool off. Reduce load once... -
Page 22: Specifications
, pure-sine 60 Hz, THD <5%, UL 458 AC Power Output (continuous) 17 Amps, 2000 Watts AC Power Output (surge) 30 Amps, 3500 Watts RPS Stackable Case, dimensions 13" x 23" x 12" RPS Stackable Case, weight 57 lbs RPS Operating Temperature... -
Page 23: Warranty
WARRANTY PERIOD The warranty period for the SILENTGREEN Renewable Power System (RPS) is 90 days for parts, labor & shipping costs, 1 year replacement with return shipping for the inverter, battery and solar panel and 25 year tech support and replacement parts at our cost. - Page 24 SYSTEM TEST RESULTS TEST DATE: 22 August 2017 Battery Voltage: 26.6, 25.8 Battery Charge Meter: 90%, 60% Master Controller - Battery Voltage: 26.6 V – System Enabled (green light ON) Master Controller - Battery Voltage: 24.1 V – System Disabled (green light OFF) Master Controller - Battery Voltage: 24.5 V –...
- Page 25 Product Manual RPS 24V – v1.2 Our Mission Sustainable Energy Independence SilentGreen Renewable Power Systems A division of West Engineering Group LLC Established 2005 Offices-Mailing-Shipping Address: West Engineering Group LLC 841 Prudential Drive, 12th Floor Jacksonville, FL 32207 www.SilentGreen.co Printed on Recycled Paper...
