Ier MAGTOP G5 Operating Instructions

Operating Instructions

MAGTOP G5 Level Gauge with Magnetic Flags

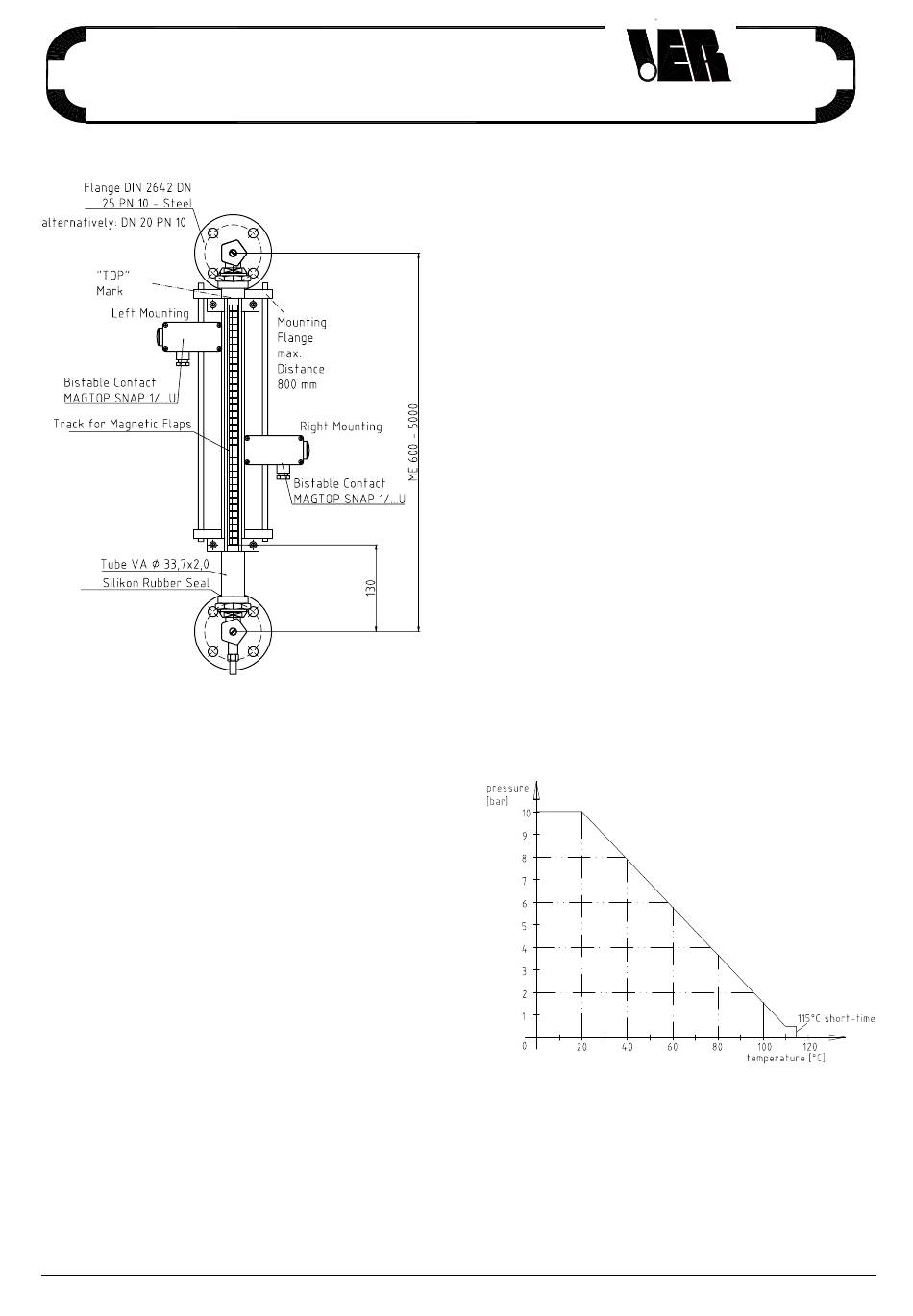

Figure 1: MAGTOP G5 with attached MAGTOP
Snap _U bistable switches

Attention!

• Use with low-viscosity media only which
neither tend to become sticky or encrusted,
nor precipitate crystals. Media may not
contain magnetic particles (e.g. metal chips).
• Use only type M25 floats.
• The float must be installed with the "TOP"
marking at the top.
• Observe maximum temperature and pressure
ratings.
• Do not allow to tilt during installation! Centre-
to-centre distance and squareness of the
flanges or threaded connectors should be
checked before installation.
• Observe correct installation order for sealing
rings (see drawing next page).
SU0117b.DOC 009/04

Functional Principle:

The MAGTOP G5 level gauge with magnetic flags is
mounted to the side of a vessel or a tank. The gauge is
filled with liquid media to the same level as the tank via two
shut-off valves.
A magnetic float is located within the standpipe which is
used to actuate a magnetic flag indicator.
As the fill level rises, the flags are rotated to display red
instead of yellow. The current fill-level is thus displayed as
a red column.
MAGTOP Snap _U bistable switches can be attached to a
separate mounting fixture. These are also actuated by the
magnetic float.
The max. pressure depends on the stability of the
connection tubes of the tank. Tubes with small diameter or
a tank with thin material thickness causes the increment of
the centre-to-centre clearance.
At maximum pressure the centre-to-centre clearance
should not increase more than 2 mms.
Subject to change without notice!

Technical Data

Standpipe
Float type
Fittings
Seals
Operating temperature
Operating overpressure
Length (flange centre-to-
centre)
Mounting
Discharge stopcock
Track for magnetic flags
Mounting fixture for
MAGTOP Snap ....
bistable switches
Stainless steel, 33.7 x 2.0 mm
Polypropylene (PP), type M25
Nickel plated brass
Silicon rubber
0 to + 110° C (115° C intermittent)
see diagram
600 to 5000 mm
Flange, DIN 2642 DN 25 PN, steel
either DN20 PN10, steel
or
threaded connector: G½" or G1"
Brass, integrated into the bottom
shut-off valve
Aluminium with Plexiglas face
Aluminium
