EXCELLENCE IN HOT WATER TECHNOLOGY
UNIT 3 SANDBEDS TRAD. EST. DEWSBURY ROAD
OSSETT WEST YORKSHIRE WF5 9ND
T 01924 270847 F 01924 271310
SALES@THERMAQ.CO.UK WWW.THERMAQ.CO.UK
Follow us on twitter @ ThermaQ
ThermaQ endeavour to keep the content of this
brochure as up-to-date as possible. We reserve the right
to make changes to all ThermaQ products and services
at anytime. To ensure you have the most current
information please contact ThermaQ directly.
T/ELECTRIC/OCTOBER/2018/VER2
2890/ElectricPackagingManuals/A5.indd 12
08/10/2018 10:56
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ThermaQ ELITE 7
Summary of Contents for ThermaQ ELITE 7
- Page 1 ThermaQ endeavour to keep the content of this brochure as up-to-date as possible. We reserve the right to make changes to all ThermaQ products and services at anytime. To ensure you have the most current information please contact ThermaQ directly.

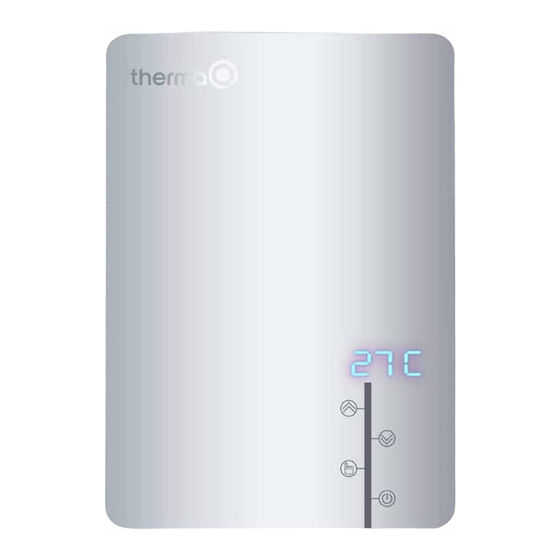

- Page 2 EXCELLENCE IN HOT WATER TECHNOLOGY E L I T E TOUCH The Elite Touch for single or multi-point applications, where an unvented storage solution is required. 2890/ElectricPackagingManuals/A5.indd 1 08/10/2018 10:56...
-
Page 3: Table Of Contents
Please read and follow the installation and operation instructions carefully, to ensure the long life and reliable operation of this appliance. CONTENTS Important Safety Instructions ..................Product Features ........................... Electrical Diagram ..........................Technical Data ............................Product Structure ..........................Installation Guideline ........................ -
Page 4: Important Safety Instructions
8. This appliance MUST NOT be switched on if you think it may be frozen, as this could result in serious damage to the unit. Wait until you are sure that the ThermaQ Elite Touch has completely thawed out before you switch it on. -
Page 5: Product Features
Product Features This ThermaQ Elite Touch electric instantaneous water heaters utilise patented heating technology that includes the use of several safety devices. The ThermaQ Elite Touch has the following features. 1. Instantaneous heating for on demand hot water, no pre-heating, no stand-by heating loss, energy-saving. -
Page 6: Technical Data
G1/2” DIMENSIONS 360 x 220 x 90 • - Heating System / - Triac EWH0011 EWH0012 Thermal cut-out 95˚C Control System Flow Meter Display Outlet temp. sensor Inlet temp. sensor Screen ThermaQ Specification Hotline 01924 270847 2890/ElectricPackagingManuals/A5.indd 5 08/10/2018 10:56... -
Page 7: Product Structure
Product Structure Terminal Blocks Bottom Case 220mm Control Board Display Screen Heating Chamber Temp. Sensor Flow Meter Installation Guideline The installation must be in compliance with the National Electrical Guidelines, as well as your local electrical and plumbing regulations. 1. Make sure the appliance is intact, and the fittings are complete. 2. -
Page 8: Installation Method
Remove screw which fixed the front and back case. Fig 2. Fig 3. Open the front case, then connect power cable to the terminal blocks with L1, L2 and E in pointed position. ThermaQ Specification Hotline 01924 270847 2890/ElectricPackagingManuals/A5.indd 7 08/10/2018 10:56... - Page 9 Please plug in the flat cable of display board to the main power board, fix the Fig 4. front cover on the appliance then turn the screws to fix the front cover. 124mm Position the paper Make a raw plug hole in Fix the hangers Fix the unit template where you wish...
- Page 10 3. While feeding the cable to terminal blocks/circuit breaker, please make sure the metal wire ends and the terminal blocks touch and can be sealed completely. Then tighten the screws up to make sure the full current can go through. Cont. ThermaQ Specification Hotline 01924 270847 2890/ElectricPackagingManuals/A5.indd 9 08/10/2018 10:56...
-
Page 11: Operation Instructions
4. Before beginning any work on the electric installation, be sure that main breaker panel switch is OFF to avoid any danger of electric shock, all mounting and plumbing must be completed before proceeding with electrical hook-up. Operation Instructions 1. Turn on the circuit breaker to bring electrical power to the unit. 2. -
Page 12: Maintenance
Note: Do not attempt to repair this water heater yourself, call a qualified plumber for assistance. Before maintenance takes place, the power supply needs to be shut off. The ThermaQ Touch does not require any regular maintenance. However, to ensure consistent water flow, it is recommended to complete the following.
