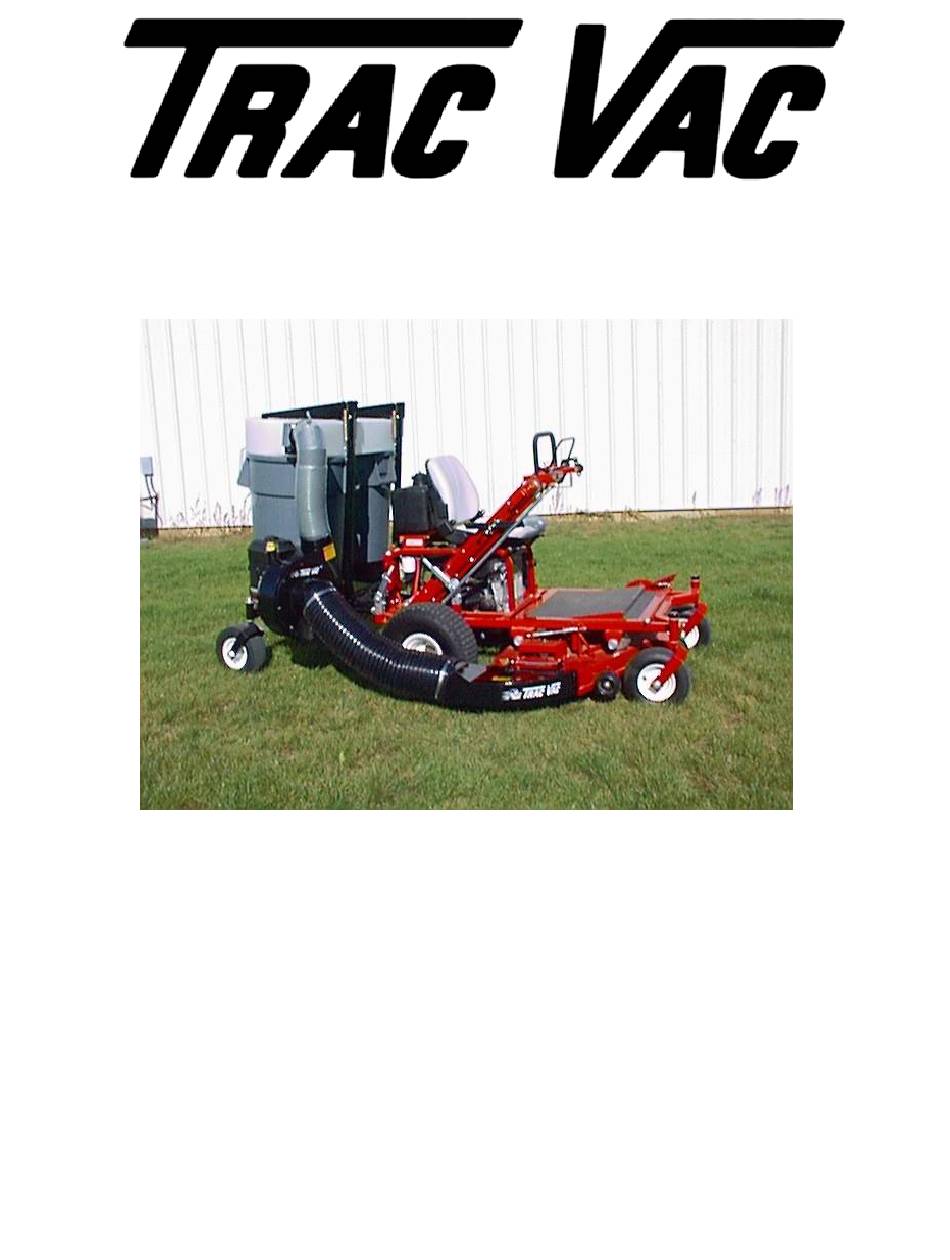

- Page 1 Model 655-IC/PRO/H/R Operating and Assembly Manual Midwest Equipment Manufacturing, Inc. 5225 Serum Plant Road Thorntown, IN 46071 07-02-14...
-
Page 2: Safety Rules
SAFETY RULES Remember, any power equipment can cause injury if operated improperly or if the user does not understand how to operate the equipment. Exercise caution at all times when using power equipment. This symbol means Attention!!!!! It is used to point out safety precautions. ▪... - Page 3 Model 655-IC/PRO/H Trac-Vac Parts List Key Part No. Description Part No. Description 65510 Frame, 655 45101 6" Metal Hose Clamp 47014 Frame, 470-FD 85226 Bent Pin. 5/8" 56510-1 Frame, 565-RH 66230 Exhaust Hose, 662 86510-1 Frame, 865 (9HP Robin) 86115 Muffler Deflector (Briggs 47020 Vertical Upright...
- Page 5 1. Slip caster assembly (28) through the receiver tube on the frame (1). Secure with 1” collar clamp, slip plastic cover over collar clamp. Repeat for the other caster. Slip stand (31) into receiver on main frame and secure with 3/8” x 2 ¼” clevis pin (24) and 5/16”...
- Page 6 Collar Clamp 5/16" x 3/4" Hexbolt (4x) Cover (2x) 5/16" Flatwasher (4x) 1" Collar Clamp (2x) 5/16" Square Bend U-bolt (2x) 3/8" x 2 1 /2" Hexbolts (4x) 3/8" Flatwasher (4x) 3/8" Whizlock nuts (4x) Hairpin Cotter Key, 5/16" 3/8" x 2 1/4" Clevis Pin 1"...
-
Page 7: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Engine fails to start 1. Spark plug wire disconnected 1. Connect wire to spark plug 2. Fuel tank empty 2. Fill tank with clean fuel 3. Faulty spark plug 3. Clean, adjust gap or replace Loss of power or erratic operation 1. - Page 8 MAINTENANCE DANGER: The Trac-Vac was built to be operated according to the rules for safe operation in this manual. Carelessness or error on the part of the operator can result in serious injury. This unit is capable of amputating fingers or hands and throwing objects. Failure to comply with the safety instructions could result in serious injury or death.
- Page 9 NOTES...
-
Page 10: Operating Procedure
Store inside a clean dry area, when not in use. TRAC VAC WARRANTY POLICY Midwest Equipment Manufacturing, Inc. will repair or replace, free of charge, any part, or parts that are defective in material or workmanship or both for a period of one year residential use, and 90 day’s for commercial and rental use.
