A
B
P

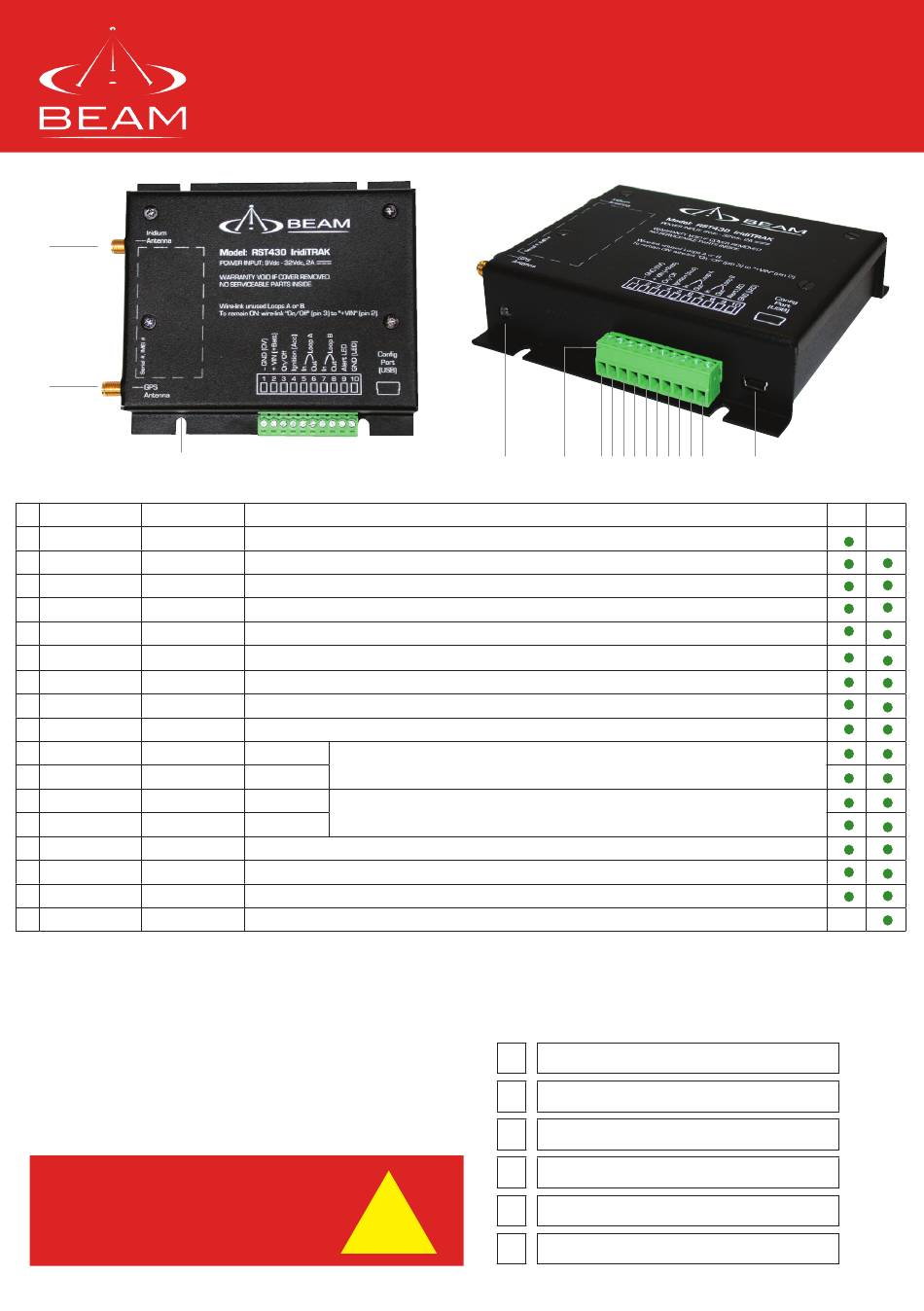

ITEM
CONNECTOR
A Iridium Antenna TNC
B GPS Antenna
SMA
C Status LED
Dual Colour
D Config port
USB
E I/O Connector
10 Pins
F Pin 1
Screw Terminal
G Pin 2
Screw Terminal
H Pin 3
Screw Terminal
I
Pin 4
Screw Terminal
J
Pin 5
Screw Terminal
K Pin 6
Screw Terminal
L
Pin 7
Screw Terminal
M Pin 8
Screw Terminal
N Pin 9
Screw Terminal
O Pin 10
Screw Terminal
P Mounting Holes 4mm
Device Port
DB9 Male
Thank you for purchasing BEAM IridiTRAK
This Quick Start Guide lists 4 steps to install and
configure your BEAM IridiTRAK:
1) Connecting power loom
2) Connecting antennas
3) Powering up
4) Configuring IridiTRAK & testing
CAUTION
Before you install and operate your
IridiTRAK, refer to the safety instructions in
the Installation & User Manual"
IridiTRAK RST430
ALERT / TRACKING / MONITORING INTERFACE
DESCRIPTION
Antenna connector for Iridium 9601 SBD module (Internal Transceiver Module)
Antenna connector for super-sense GPS module
Network Registration / GPS / Status LED
Programming & configuration port
10 pins - Input & Output pluggable connector
Power V– (GND)
Power V+ (+Vin)
Master On/Off Input. If not using, Wire-link to +Vin to remain ON
Ignition Sense Input. Use to determine when to Sleep. If not using, Wire-link to +Vin to remain awake.
Loop A In
NORMALLY CLOSED loop, connect to an alert button / pendant system relay contacts.
Loop A Out
If not using, it MUST be wire-linked CLOSED to avoid false emergency
Loop B In
NORMALLY CLOSED loop, connect to an alert button / pendant system relay contacts.
Loop B Out
If not using, it MUST be wire-linked CLOSED to avoid false emergency
Alert LED Out
Spare GND (normally used for Alert LED)
Mounting holes for securing terminal
Device Port for RS232 communications to an external Transceiver module
C
Package Contents
Before you start, make sure you have all required
components:
RST430 IridiTRAK Unit
Power Cable Loom
USB Configuration Cable
Installation & User Manual
!
Resource CD-ROM
Quick Start Guide
E
F
G
H
I
J
K
L
M
N
O
Quick
Start
Guide
D
430
410
