Technical Data
2
MLS CABLE: 1.5mm unscreened twisted-pair: see Application Note AN4001
SWITCH INPUT CABLE: Any mains-rated cable, e.g. 0.5mm two-core
OPERATING VOLTAGE: 230V 50Hz (UK & Europe)
PRODUCT RATING & RECOMMENDED CIRCUIT PROTECTION: 10 Amps
POWER CONSUMPTION: <10W
MAX DEVICES PER RB2000LT: 100 (MLSLCP4 counts as 2 nodes)
WEIGHT: 112g
SIZE: 175mm x 125mm x 75mm
Ex-Or
Haydock Lane, Haydock, Merseyside WA11 9UJ
Tel: +44 (0)1942 719229
Fax: +44 (0)1942 272767
Email: technicalsales.ex-or@honeywell.com
www.ex-or.com
2
At the end of their useful life
the packaging and product
should be disposed of via a
suitable recycling centre.
Do not dispose of with normal
household waste.
Do not burn.
W4159C

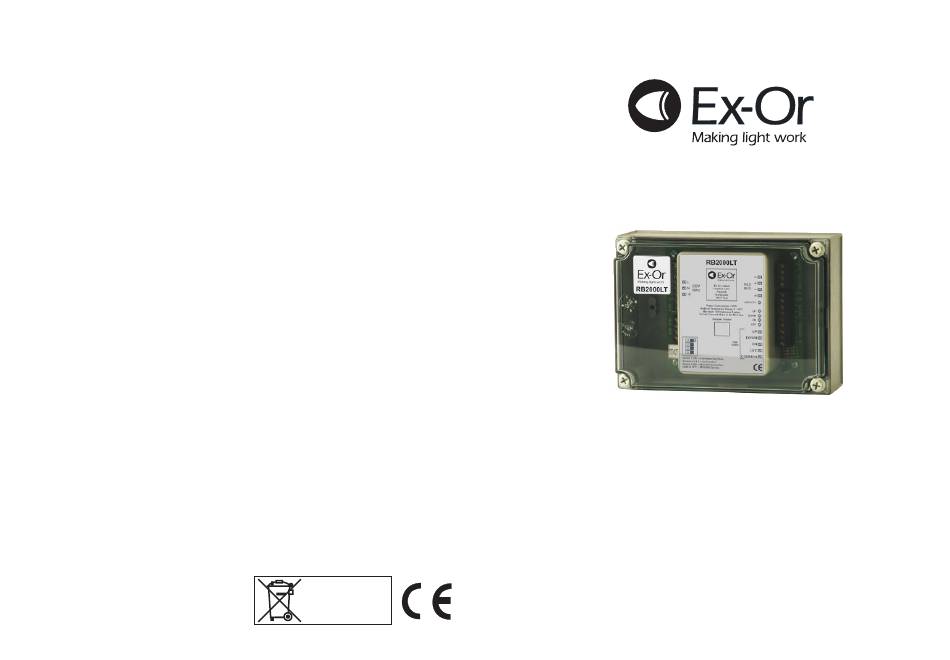

RB2000LT
MLS Bus Power Supply - 'Lite'
Installation and Commissioning
Instructions
(Please read these instructions fully before installation)
Advertisement
Table of Contents
Related Manuals for Ex-Or RB2000LT
Summary of Contents for Ex-Or RB2000LT
- Page 1 SWITCH INPUT CABLE: Any mains-rated cable, e.g. 0.5mm two-core OPERATING VOLTAGE: 230V 50Hz (UK & Europe) PRODUCT RATING & RECOMMENDED CIRCUIT PROTECTION: 10 Amps POWER CONSUMPTION: <10W MAX DEVICES PER RB2000LT: 100 (MLSLCP4 counts as 2 nodes) WEIGHT: 112g SIZE: 175mm x 125mm x 75mm RB2000LT MLS Bus Power Supply - ‘Lite’...
- Page 2 RB2000LT default. Switch 1 enables commissioning The RB2000LT powers and synchronises the MLS Bus for up to 100 MLS devices. Wall switch inputs mode; Switch 4 determines bus type. allow simple dimming and on/off control over suitably programmed devices in the system. There is no...
