Summary of Contents for Sinotint MA-7 Series

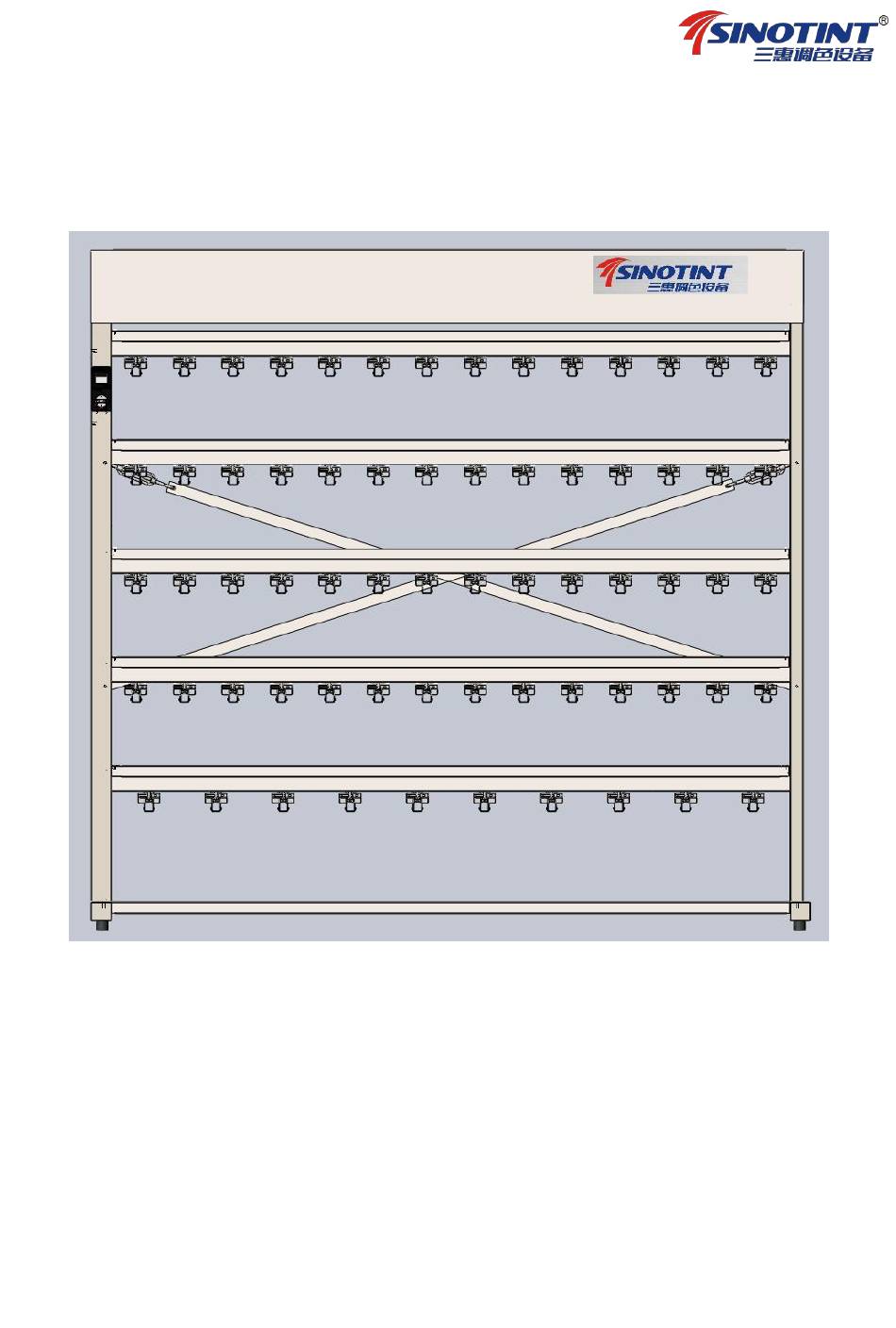

- Page 1 Paint Mixing Machine Installation and Operation Manual Ple a s e rea d the manu al bef ore us i ng . us i ng uus i n g us i ng .
-
Page 2: Table Of Contents
ZHENGZHOU SANHUI MACHINERY & EQUIPMENT CO.,LTD. OPERATION MANUAL/说明书 Contents Introduction....................3 Precaution：....................4 Product Specifications................... 4 Electrical Principle Chart................5 Installation...................... 5 Test Running....................8 Operation......................8 Repair and Maintenance................9 9. Special Precaution：Electrical Grounding..........9 2/10... -
Page 3: Introduction
ZHENGZHOU SANHUI MACHINERY & EQUIPMENT CO.,LTD. OPERATION MANUAL/说明书 1. Introduction Thanks for purchasing our products. Paint mixing machine is a kind of tinting machine which used for automotive surface refinish. There are mainly two functions, one is to provide the mixing function, in order to avoid paint color difference due to paint precipitation;... -
Page 4: Precaution
Product Specifications Product Specifications Specifications of general type mixing machine： Shelves for big cans Standard Shape Size(mm) Shelves Configuration (L×W×H) Total heads 1410X380X1828 MA-7 Series 1410X380X2118 1750×380×1828 MA-9 Series Series 1750×380×2118 1930×380×1828 MA-10 Series 1930×380×2118 2110×380×1828 MA-11 Series 2110×380×2118 2362×380×1828 MA-12 Series 2362×380×2118... -
Page 5: Electrical Principle Chart
ZHENGZHOU SANHUI MACHINERY & EQUIPMENT CO.,LTD. OPERATION MANUAL/说明书 Electrical Electrical Principle Principle Chart Chart Installation Installation Open the carton box, check the articles and quantity inside according to the packing list. Take out tools and accessories, then install the machine following the manual. Please note: pictures shows in the manual are of standard equipment, if different, install in the corresponding place. - Page 6 ZHENGZHOU SANHUI MACHINERY & EQUIPMENT CO.,LTD. OPERATION MANUAL/说明书 5.3. Install mixing shelf for Big Cans(Gallon cans). Left the end with power cord, place downwards the groove of two sides into the nut bolts on the side plate until it arrives at the correct position. Note that power cord should not be crushed.
- Page 7 ZHENGZHOU SANHUI MACHINERY & EQUIPMENT CO.,LTD. OPERATION MANUAL/说明书 5.6. As the picture shows below, install the pulling strip with Allen Key. Screw two spiral buckles to tight the pulling strip, making sure that the machine stands stably. 5.7. Install the working table. If there was a working table needs to be installed, install both two sides supporting racks onto the mixing shelves with “working table top”...
-
Page 8: Test Running
ZHENGZHOU SANHUI MACHINERY & EQUIPMENT CO.,LTD. OPERATION MANUAL/说明书 5.9. Pull down the plastic locator on the mixing shelf, and make it stuck in the slot until a “click” is heard. Hereto the installation has been finished. Test Running Test Running 1. -
Page 9: Repair And Maintenance
ZHENGZHOU SANHUI MACHINERY & EQUIPMENT CO.,LTD. OPERATION MANUAL/说明书 Repair Repair Maintenance Maintenance Troublesshooting Symptoms Causation Check the socket, the power No power supply cord, small circuit breaker to ensure Switch Box in charge. Open the corresponding mixing shelf, and connect the plug Power plug loose again. - Page 10 ZHENGZHOU SANHUI MACHINERY & EQUIPMENT CO.,LTD. OPERATION MANUAL/说明书 Zhengzhou Sanhui Machinery & Equipment Co., Ltd. Add：No.40, 5F, Building 11, No.338 Lianhua Street, HI-NEW TECH ZONE, Zhengzhou, Henan 450000, P.R.China TEL：86-371-67575169 FAX：86-371-56577635 Website：www.sinotint.com 10/10...
