Summary of Contents for DeLorme Earthmate PowerPack

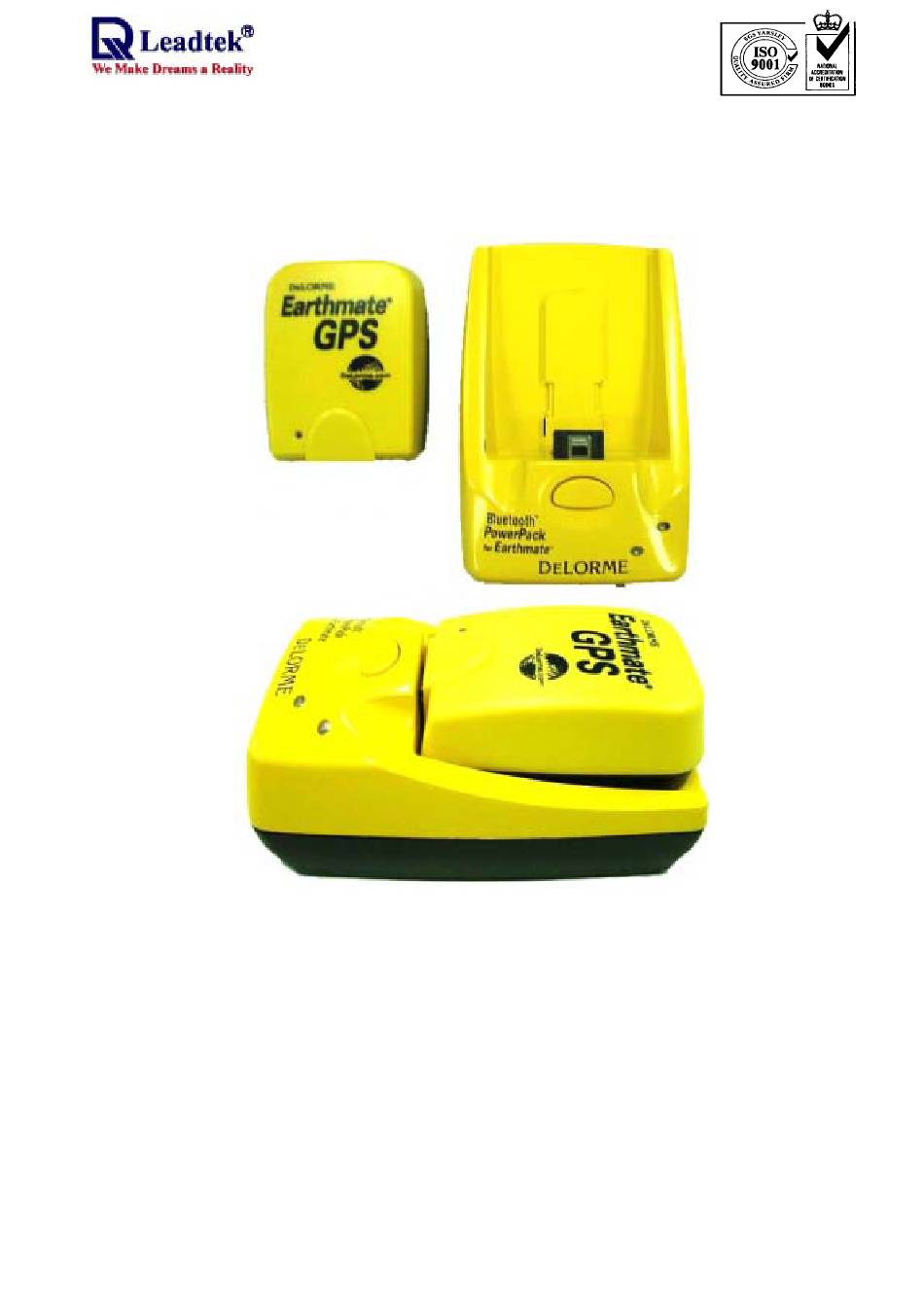

- Page 1 DELORME PowerPack for Earthmate GPS with Bluetooth GPS 9822 Version 1.2 09 September 2003 All Rights Reserved...
-
Page 2: Table Of Contents
Contents MAIN FEATURES .........................1 SPECIFICATIONS.........................1 .....................1 LECTRICAL HARACTERISTICS ..................1 NVIRONMENTAL HARACTERISTICS ....................2 HYSICAL HARACTERISTICS ........................2 ERTIFICATION ACCESSORIES ..........................2 ............................2 OWER ) .........................2 ABLES PTIONAL OPERATION ..........................3 ......................3 ARDWARE ESCRIPTION ..........................3 URN ON ..........................4 HARGING ....................4 LUETOOTH OMMUNICATION PIN CODE ..........................4 NOTICES............................5 ....................5 LOBAL... -
Page 3: Main Features
1 Main Features Compatible with Bluetooth devices with Serial Port Profile (SPP) 2 LEDs indicating Bluetooth , GPS activity , Low power and Charge operation On/off slide switch Bridge for 9538 Earthmate and terminal monitor device (PC or PDA or BT device ) Powered By Alkaline Battery (AAA) * 4 Lithium-ion battery lasting full working day typical use(Optional) Removable belt clip... -
Page 4: Power
2.3 Physical Characteristics Length 94.8 mm Width 62.5 mm Height Weight 2.6 oz. / 75g Power connector 3.5mm 2.4 Certification Bluetooth Europe CE, CE! American FCC Class B, ICES-003 Class B, FCC ID 3 Accessories 3.1 Power Adapter Adapter is for charging. Supports 110V-220V. Multiple 3.2 Cables (Optional) USB cable This cable switches C25 connector to USB connector. -
Page 5: Operation
4 Operation 4.1 Hardware Description The PowerPack for Earthmate GPS with Bluetooth has two LED light which each has two colors. One is GPS & Charge status LED, that is named LED 2, and the other is Bluetooth & low power status LED, that is named LED 1. - Page 6 Bluetooth operation. Turn on To turn on the receiver, please switch the power slide switch to “ON” side. You can see the LED1 flash blue color once and wait a moment (about 10 seconds) to turn on the power. At the same time LED1 will flash blue to wait Bluetooth connection.
-
Page 7: Notices
GPS receiver. 5.2 Aircraft and Hospitals Use of devices with an antenna is prohibited on most aircraft and in many hospitals. The Delorme Powerpack for Earthmate GPS with Bluetooth is a receiving and transmitting device with two antenna’s and should not be used in these environments. - Page 8 5.6 FCC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
