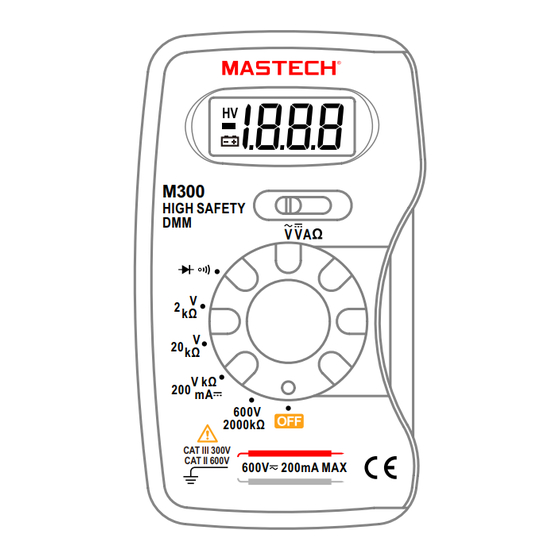

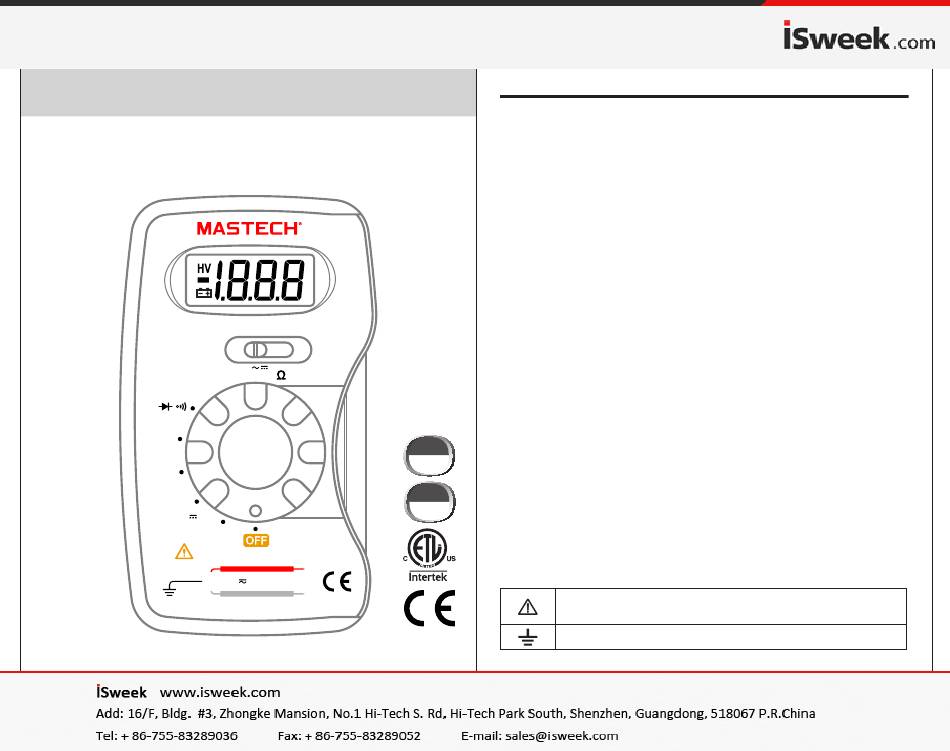

POCKET-SIZED DIGITAL MULTIMETER
OPERATOR'S INSTRUCTION MANUAL
M300
HIGH SAFETY
DMM
V
2
kΩ
V
20
kΩ
V kΩ
200
mA
600V
2000kΩ
CAT III 300V
CAT II 600V
600V 200mA MAX
M300
V A
V
CATIII
300V
CATII
600V
Safety information
This meter has been designed according to EN61010-1,
EN61010-2-030,EN61010-2-033,EN61010-2-031, 600V
CAT II, 300V CAT III and pollution2.
Follow all safety and operating instructions to ensure the
meter is used safely and is kept in good condition With
proper use and care, your digital multimeter will give you
years of satisfactory service.
During use
• Never exceed the protection limit indicated in the
specifications for each range of measurement.
• Never use the meter to measure voltages that might
exceed 600V above earth ground in category II
installations
• Always be careful when working with voltages above
60v dc or 30v ac rms. keep fingers behind the probe
barriers while measuring.
• Do not perform resistance measurements on live circuits.
• Inspect test leads and probes for cracks, breaks or
crazes in the insulation before using the meter.
•
If the equipment is used in a manner not specified by
manufacturer, the protection provided by equipment may
be impaired.
Safety Symbols
Important safety information ,refer to the
instruction manual.
Earth(ground) TERMINAL
01
Advertisement
Table of Contents
Related Manuals for isweek M300
Summary of Contents for isweek M300
- Page 1 M300 Safety information POCKET-SIZED DIGITAL MULTIMETER This meter has been designed according to EN61010-1, OPERATOR'S INSTRUCTION MANUAL EN61010-2-030,EN61010-2-033,EN61010-2-031, 600V CAT II, 300V CAT III and pollution2. Follow all safety and operating instructions to ensure the meter is used safely and is kept in good condition With proper use and care, your digital multimeter will give you years of satisfactory service.
-
Page 2: Front Panel
Fuse must be replaced with ratings specified in the manual. AC (Alternating Current) DC (Direct Current) It is applicable to test and measuring circuits connected M300 CAT II directly to utilization points (socket outletsand similar HIGH SAFETY points) of the low-voltage MAINS installation. -
Page 3: Specification
General description DC Current This compact digital multimeter is designed to Range Accuracy Resolution measure AC and DC voltages .DC current .Resistance . Diode and to perform audible continuity checks with ±2.0% of rdg ±2dgts 200mA 0.1mA accuracy and easy . Overload protection: F200mA H 600V fuse Small and lightweight .with a carrying case and test Resistance... -
Page 4: General Characteristics
General characteristics AC Voltage measurement Maximum voltage between 1. Set the function switch at V~ position CAT III 300V, CAT II 600V Terminals and earth ground 2. Set the range switch at desired position .measurement Fuse protection reading can be obtained at 2V and 20V positions, but F 200mA H 600V Power supply the accuracy is not guaranteed. - Page 5 Diode test Accessories Battery 1pcs (12V GP-23A) 1. Set the function switch at position .(note: the polarity Ω Carrying Case 1pcs of red lead is positive “+”) 2. Set the range switch at position. Operating manual 1pcs 3. Connect the red test lead to the anode of the diode to be tested and the black lead to the cathode of the diode.
