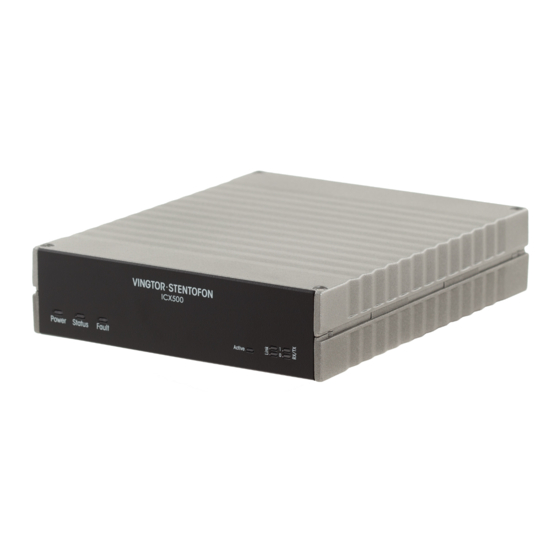

This document serves as a basic getting started guide for the ICX-500 Intelligent Communication Gateway. Zenitel
takes no responsibility for damages caused by improper or inadequate mounting. The ICX-500 product
package comprises the following components:
Item Number
Item Name
1002000100
ICX-500
1002500010
IA-RS1
1002500020
IA-MB1
1002510000
IPS-AC1
1

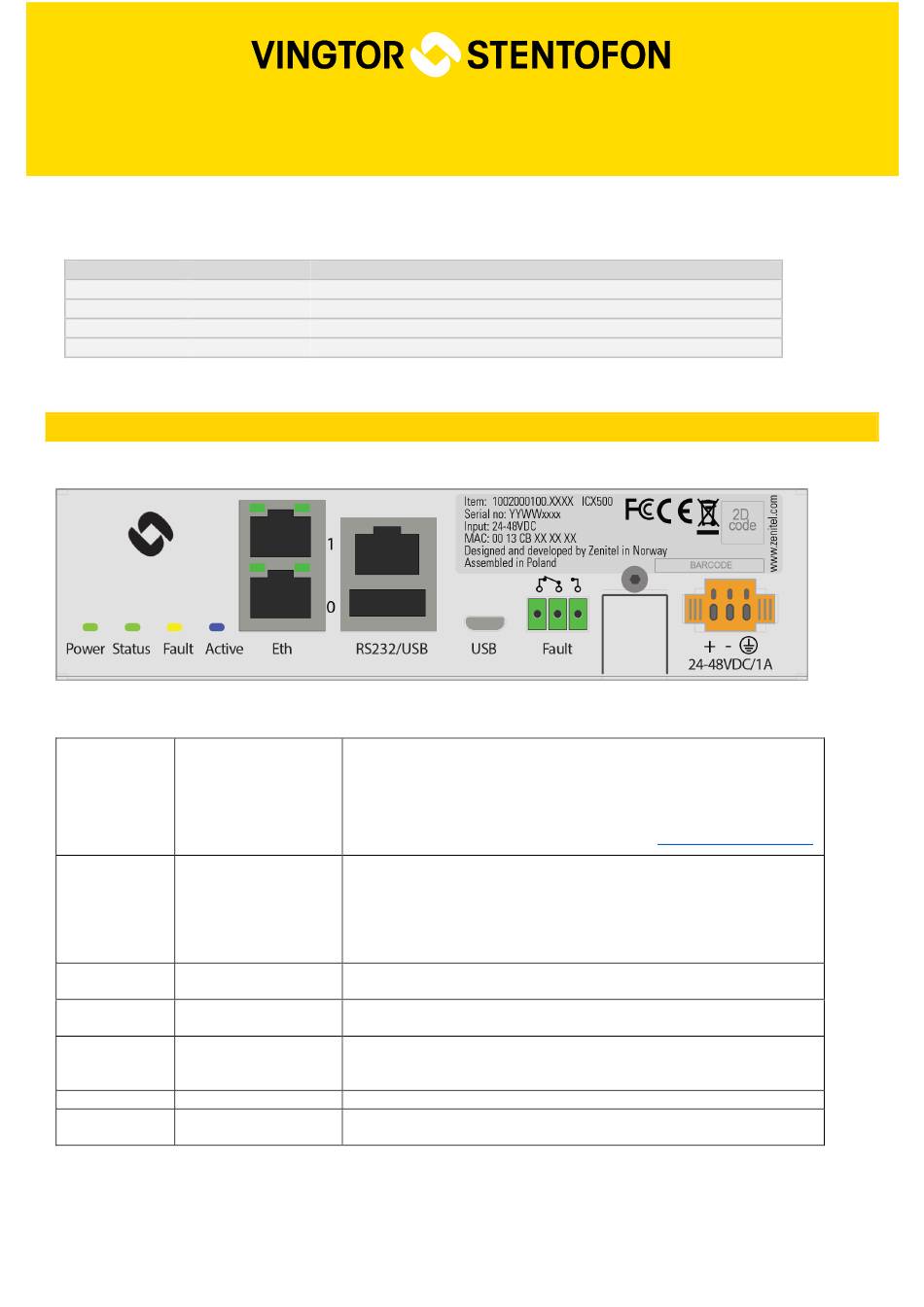

ICX-500 Connections
Ethernet
Eth0 / Eth1
Power
24-48VDC
RS232
RJ45
USB
USB A
USB micro-B
Fault Relay
3-pole Terminal Block
SD Card
Micro SD Card
Factory
Tact Switch
Default Button
ICX-500 Getting Started Guide
Description
Intelligent Communication Gateway
Rack Shelf for ICX-500
Mounting Bracket for ICX-500
PSU, Input 85-264 VAC, Output 48 VDC, DIN-Rail
For initial network connection to ICX-500, use Eth0:
Default IP: 169.254.1.5
User name: admin
Password: alphaadmin
ICX-500 configuration is done using AlphaPro and ICXweb. For
detailed configuration guidelines please visit
ICX-500 shall be powered from a DC power supply with nominal
voltage 24VDC or 48VDC. In order to comply with UL safety
requirements, ICX-500 has to be powered by a Limited Power
Source (LPS) or PS2 (based on IEC/UL 62368-1 definition) or NEC
Class 2 source of supply, with maximum power of 100W.
Zenitel's PSU IPS-AC1 (1002510000) meets this criterion.
ICX-500 RS232 port is the RJ45 part of the dual connector
RS232/USB
ICX-500 features one USB A and one USB micro-B connector
Fault Relay is used to indicate system status together with Fault
LED. The Fault Relay port can be connected to a logical input of a
third-party external system and is not carrying any current/voltage.
Used for external storage or system recovery (Behind protection lid)
Used for resetting ICX-500 to factory settings (Behind protection lid)
https://wiki.zenitel.com
Advertisement
Summary of Contents for Vingtor Stentofon ICX-500
- Page 1 ICX-500 Getting Started Guide This document serves as a basic getting started guide for the ICX-500 Intelligent Communication Gateway. Zenitel takes no responsibility for damages caused by improper or inadequate mounting. The ICX-500 product package comprises the following components: Item Number...
- Page 2 Wall/Shelf Mounting of the ICX-500 Using the IA-MB1 Mounting Bracket, the ICX-500 can be mounted on any flat surface such as a wall or shelf. The following procedure is for a mounting on a wall as an example. 1. Mount the bracket to the wall using the 3 screws provided.
- Page 3 Rack Mounting of the ICX-500 Using the IA-RS1 Rack Shelf, two ICX-500 units can be mounted side by side in a 19” 1HU rack. 1. Slide the 4 mounting clips into the side walls of the rack shelf. 2. Slide the ICX-500 unit into the rack shelf.
- Page 4 The ICX-500 is intended for use in restricted access areas for trained service personnel and/or operators, and is not to be installed in locations where children are likely to be present. The WEEE Directive does not legislate that Zenitel, as a ‘producer’, shall collect ‘end of life’ WEEE.
