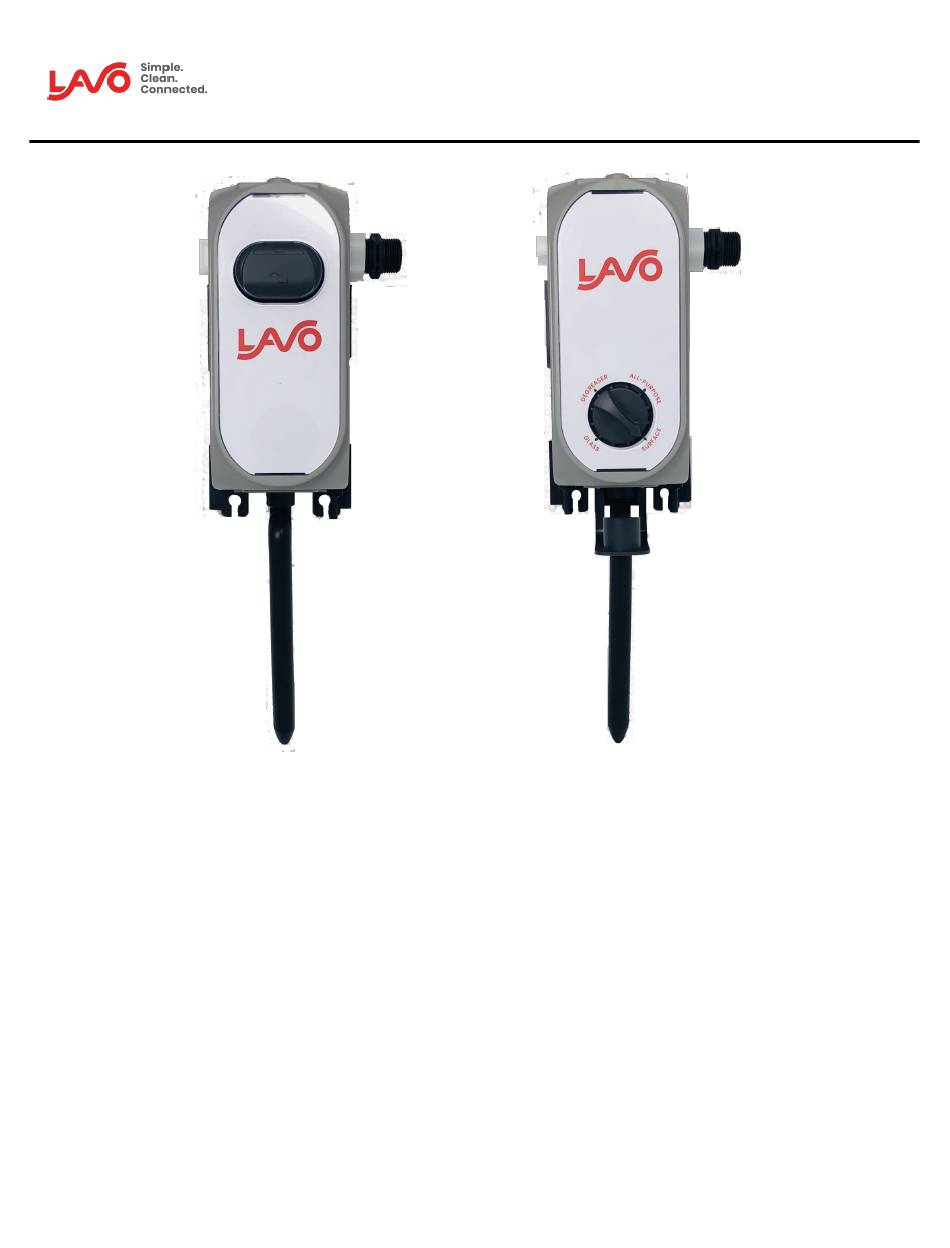

INSTRUCTION MANUAL
TABLE OF CONTENTS:
Safety / Tech Specs / Metering Tip Chart
Terms & Conditions
Rev A 07132018
LavoDose Series
2
3
4
5
Page | 1
Advertisement
Table of Contents
Summary of Contents for Lavo Solutions LavoDose Series
- Page 1 LavoDose Series INSTRUCTION MANUAL TABLE OF CONTENTS: Safety / Tech Specs / Metering Tip Chart Mounting the units Troubleshooting Terms & Conditions Page | 1 Rev A 07132018...
- Page 2 Safety READ CAREFULLY BEFORE INSTALLING: Read this manual carefully for installation instructions. DO NOT INSTALL the dispenser where it is directly exposed to vapors, chemical fumes, or next to heat sources. PROTECT YOURSELF - Always wear personal protective equipment. Use gloves, eye ware, and appropriate attire when working with chemicals.
- Page 3 Mounting the units STEP 1: Use the backplate as a template to mark the mounting hole pattern. Drill a hole for the supplied ¼” anchors and mount the bracket with the screws provided in the accessory kit. STEP 2: Attach the system to the backplate and slide it down. The tab will make a clicking noise when the dispenser secured.
- Page 4 Troubleshooting Problem Cause Solution 1. Water inlet strainer is clogged 1. Clean it or replace if necessary 2. Use a water pressure regulator in case of 2. Too much water pressure more than 100PSI 3. Insufficient water pressure 3. 20PSI is the minimum required pressure. System does not dispense solution 4.
- Page 5 Lavo Solutions replacement or spare part or product that was not maintained in accordance with recommended maintenance programs.
