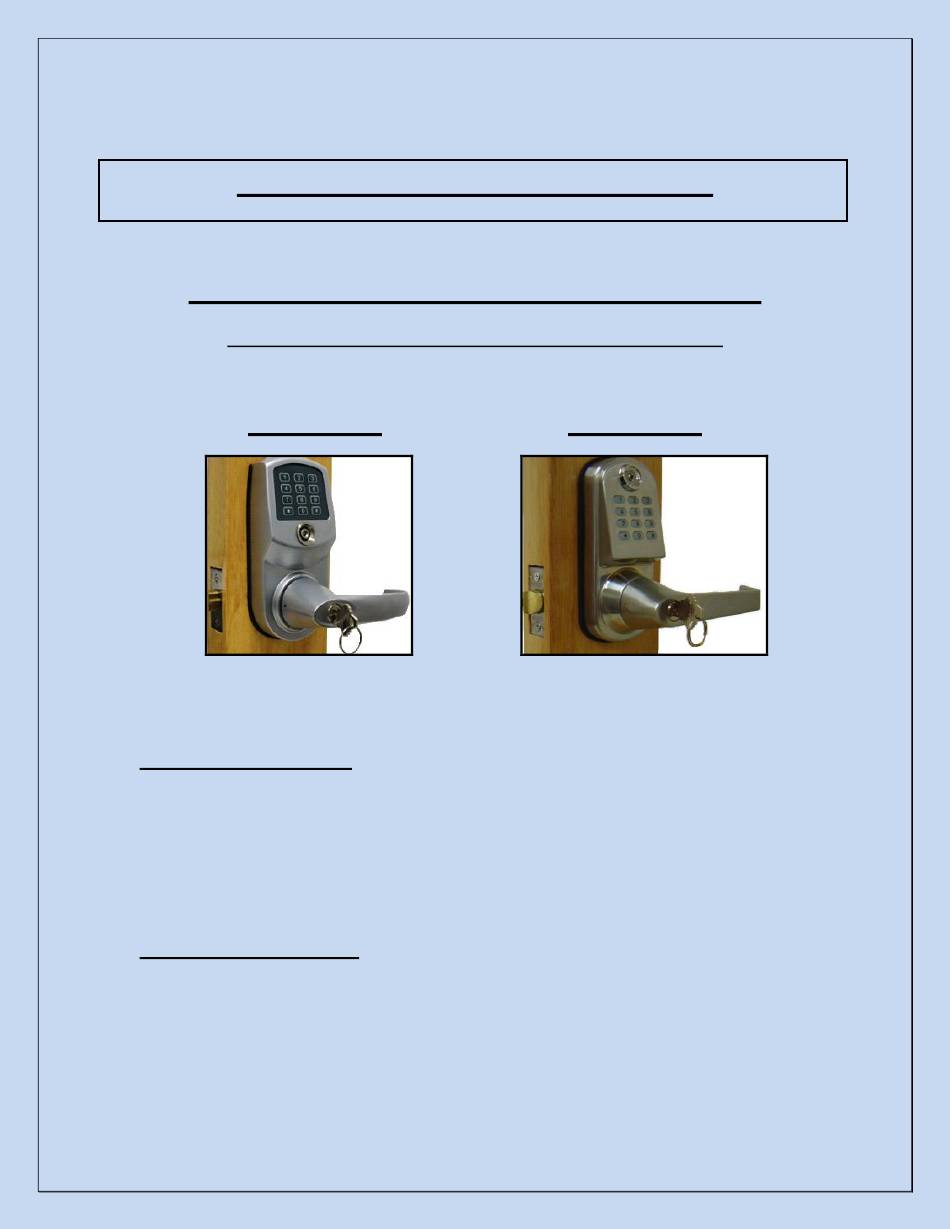

Manual Keypad Lock Programming Guide
Covered lock models: E4TKSC, E5TKSB, E5TKSBS, E5TKSC, E5TKSCS
(E5RFKSC model lock programming is NOT covered by this guide)
Eternity 4
General Information:
E5 v4.1 non-software lock:
The non-software version of the E5 lock is programmed completely using the
keypad on the E5 itself. A personal computer cannot be used for programming. If you
have purchased a non-software version of the E5 and later wish to upgrade to the
software version E5, your E5
printed circuit board converting it to software operation. Field retrofit is possible but not
normally recommended. Contact your dealer or distributor for details.
E4 / E5 v8.6 software locks:
The software version of the E4 or E5 can be programmed either manually via the
keypad on the E4 / E5 or with a personal computer, DS1977 program iButton key,
software and a Blue-dot USB reader. Most manual program modes and methods used by
the non-software E5 are available when manually programming the software version E4
or E5. However, an important consideration is that once you elect to program your E4 /
E5 software lock manually instead of using a personal computer you must continue to use
that same method. You cannot mix the two programming methods for a given lock.
(except
E5RFKSC) can be retrofitted with a replacement
Revised 10.3.2018sp
Eternity 5
1 |
P a g e
