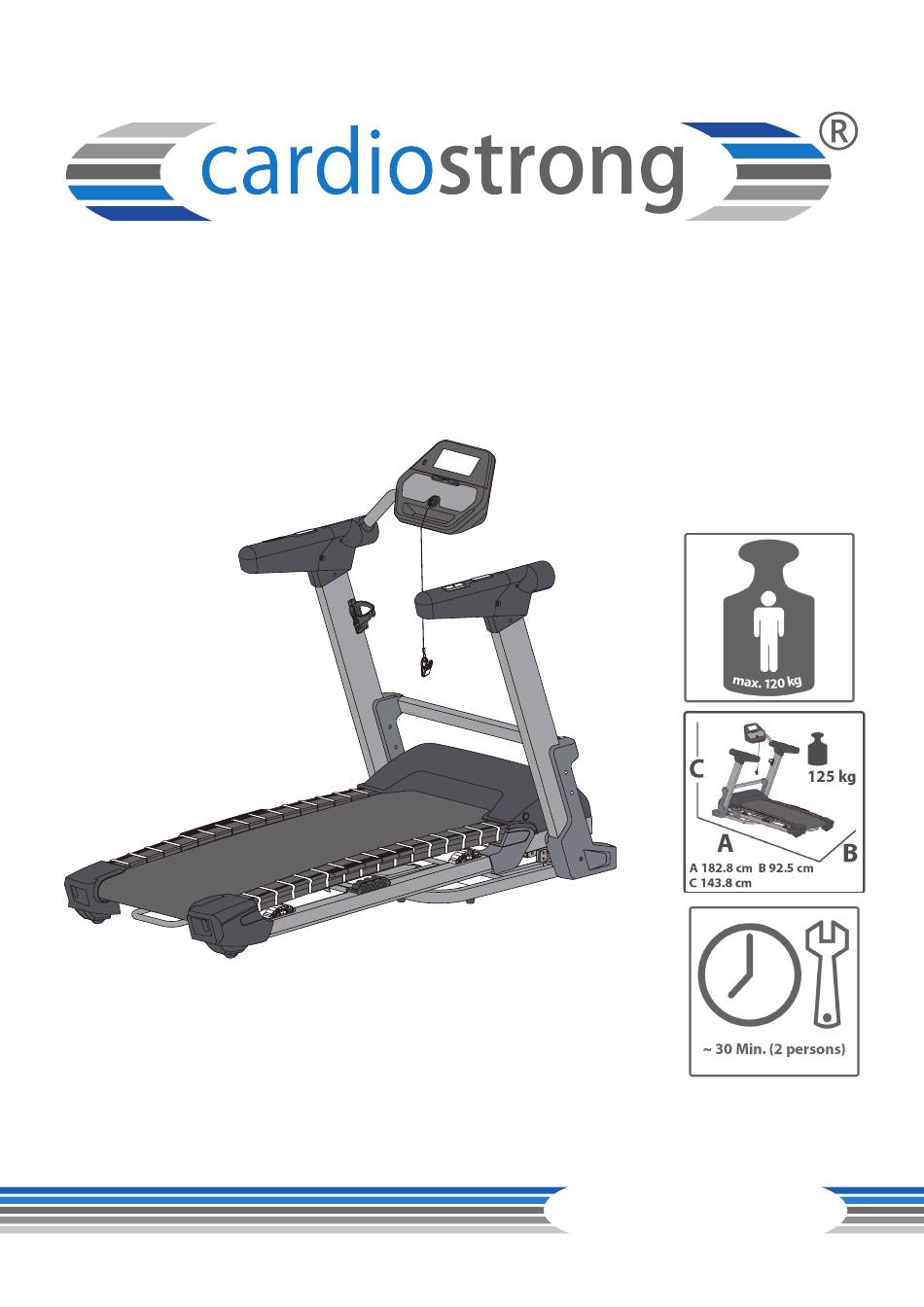

- Page 1 Assembly and Operating Instructions CSTTF70.01.05 Art. No. CST-TF70 Treadmill TF70...
- Page 2 TF70...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Electrical Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly OPERATING INSTRUCTIONS Console display Button functions Programmes 3.3.1 Manual programme 3.3.2 Pre-set profile programmes 3.3.3 User-defined programmes 3.3.4 Heart rate programmes (HRC) 3.3.5 Body fat test STORAGE AND TRANSPORT General Instructions... - Page 4 RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing WARRANTY CONTACT TF70...
- Page 5 Dear customer, Thank you for choosing a high-quality equipment of the brand cardiostrong®. cardiostrong® offers sports and fitness equipment for the sophisticated home sport and the equipment of fitness studios and business customers. With cardiostrong® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists.
- Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
-
Page 7: General Information
GENERAL INFORMATION Technical Data LCD display of: time speed distance calories incline heart rate Motor output: 2 HP continuous output (DC motor) Speed range: 1 - 16 km/h (0.1 km/h steps) Speed quick keys: 6 Incline range: 1 - 10 % (in 0.5 % steps) Incline quick keys: 6 Total number of training programmes: Manual programmes:... -
Page 8: Personal Safety
Personal Safety DANGER ⚠ Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 9: Electrical Safety
Electrical Safety DANGER ⚠ In order to reduce the risk of an electric shock, always unplug the equipment from the mains socket immediately after your workout, before assembly or dismantling, and before maintenance or cleaning. Do not pull on the cable. ⚠... -
Page 10: Set-Up Place
Set-Up Place WARNING ⚠ Do not place the equipment in main corridors or escape routes. ⚠ CAUTION The training room should be well ventilated during training and not be exposed to any draughts. Choose the place in which to set up the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. -
Page 11: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING The treadmill is equipped with high-pressure shock absorbers that can cause the treadmill to suddenly open if handled incorrectly. -
Page 12: Scope Of Delivery
Scope of Delivery WARNING ⚠ Around the treadmill there is a strap that prevents the treadmill from opening during transport. This strap must be removed before assembly. The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. -
Page 14: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Then tighten the screws using the tool only when you are instructed to do so. Step 1: Mounting the console upright posts At first, turn carefully both frame upright posts up for the console (VI-B1 and VI-B2). - Page 15 Step 2: Mounting of the covers Place both covers (VI-B3 and VI-B4) on the frame and mount the frame with eight screws (B26). Tghten the screws.
- Page 16 Step 3: Mounting the handrails Remove the pre-mounted screws (VI-A41) and spring washers (VI-A113) from the console upright posts. Connect the cable (VI-B33) of the left handrail (VI-B13) with the cable (VI-B35) of the left console upright post (VI-B1). Now mount the handrail on the console upright post with the previously loosened screws and spring washers.
- Page 17 Step 4: Adjusting the wheels If the ground should be uneven you can fix that by using the adjusting wheels at the mainframe under the motor. ⚠ WARNING The treadmill is equipped with high- pressure shock absorbers that can cause treadmill suddenly open if handled incorrectly.
-
Page 18: Operating Instructions
OPERATING INSTRUCTIONS NOTICE Familiarise yourself with all the functions and setting options of the device before starting training. Have the proper use of this product explained to you by a specialist. SAFETY KEY WARNING ⚠ For your safety, the device is equipped with an EMERGENCY STOP function. The equipment can only be operated if the safety key is correctly attached to the contact point of the cockpit. -
Page 19: Console Display
Console display Displays the burnt calories from 0 to 999. When a calories target is entered, it is counted down; otherwise, it is counted up. Displays the training time from 0:00 to 99:59 minutes. When a time target TIME is entered, it is counted down; otherwise, it is counted up. Displays the current heart rate when a compatible chest strap is worn. -
Page 20: Button Functions
Button functions Press the PROG button in the start menu to choose the Prog desired programme. Conform the current selection; switching the target settings Mode of single programmes (time, distance, calories). Start the chosen programme. The optional setting of target Start settings (time, distance, calories) is skipped. -
Page 21: Programmes
Programmes We recommend you to disconnect the treadmill from the power outlet everytime you are finished with your training. If you would like to start training again just reconnect the treadmill to the power outlet and press the START button to gain access to the main menu. This treadmill offers you many different training modes. -
Page 22: Pre-Set Profile Programmes
3.3.2 Pre-set profile programmes While you are in the main menu, press the PROG button to choose from the provided programmes. The length of all the programmes is pr+eset to 10 minutes, but you can change the time by pressing the SPEED+/- and the INCLINE arrow buttons (range 5 to 99 minutes). Press the START button to start your training. -
Page 23: User-Defined Programmes
SPEED 10 10 11 11 12 11 11 10 10 11 11 12 11 11 9 INCLINE SPEED 10 10 9 10 10 9 10 10 8 INCLINE SPEED INCLINE SPEED INCLINE SPEED 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 8 INCLINE SPEED 11 11 12 12 13 13 12 12 13 13 12 12 13 13 12 10 7... -
Page 24: Heart Rate Programmes (Hrc)
3.3.4 Heart rate programmes (HRC) There are two heart rate programmes: HP1 with a maximum speed of 10 km/h and HP2 with a maximum speed of 12 km/h. We recommend you to wear a chest strap with a digital heart rate sensor to transmit your heart rate correctly. -
Page 25: Body Fat Test
The heart rate programmes always start with a short warm-up. Afterwards the computer calculates the difference between the set target heart rate and your current heart rate. If your heart rate is lower than the target heart rate your treadmill will increase the speed in steps of 0,5 km/h until the target heart rate and your own heart rate match or the maximum speed is reached. -
Page 26: Storage And Transport
STORAGE AND TRANSPORT General Instructions ड ATTENTION Make sure that the equipment is protected from moisture, dust and dirt in the selected storage location. The storage location should be dry and well ventilated and have a constant ambient temperature between 5°C and 45°C. WARNING ⚠... -
Page 27: Folding Mechanism
Folding Mechanism WARNING ⚠ The treadmill is equipped with high-pressure shock absorbers that can cause the treadmill to suddenly open if handled incorrectly. For more information, refer to the general assembly instructions. Do not lift the treadmill by the running mat or the rear transporting wheels. These parts do not lock and are difficult to grab. -
Page 28: Unfolding The Treadmill
4.3.2 Unfolding the Treadmill ड ATTENTION Make sure that nothing is standing next to or on top of the treadmill that can be spilled or thrown or that makes it impossible to unfold the treadmill. Stand behind the treadmill and push the device slightly forward towards the display. To release the hydraulic brake lock, use your left foot to push the upper part of the hydraulic brake slightly forward until the lock releases and the treadmill can be pulled back. -
Page 29: Troubleshooting, Care And Maintenance
TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. CAUTION ⚠ Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner. -
Page 30: Care And Maintenance
Care and Maintenance The most important maintenance measure is the care of the running mat. This includes adjustment, re tensioning and lubrication of the running mat. Damage resulting from insufficient or neglected care is not covered by the warranty. You should therefore carry out maintenance checks at regular intervals. -
Page 31: Re-Tensioning The Running Mat
5.3.2 Re-tensioning the Running Mat If the running mat slips over the rollers during operation (if this is the case, there is a noticeable jerk during running), the running mat must be re tightened. In most cases, the slipping is caused by stretching of the mat through use. This is perfectly normal. NOTICE Re-tensioning is carried out using the same adjusting screws that are used for adjustment. -
Page 32: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Half-yearly Yearly Display console... -
Page 33: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more effi cient and pleasant, we recommend that you add suiting accessories to your fi tness equipment. This could be a fl oor mat, for example, which makes your fi tness equipment stand more securely and also protects the fl oor from falling sweat, but it could also be additional handrails on some treadmills or silicone spray to keep moving parts in good shape. -
Page 34: Ordering Spare Parts
ORDERING SPARE PARTS Serial Number and Model Name In order to provide you with the best possible service, please have the model name, article number, serial number, exploded drawing and parts list ready. The corresponding contact options can be found in chapter 10 of this operating manual. NOTICE The serial number of your equipment is unique. -
Page 35: Parts List
Parts List Name Qty. Name Qty. IV-A BASE FRAME IV-A26 PEDAL TUBE IV-A1 MAIN FRAME IV-A27 SLEEVE IV-A2 RUNNING DECK IV-A28 BUSHING IV-A3 RUNNING BELT IV-A29 SPRING IV-A4 THIN RUNNING DECK NOISE IV-A30 MOTOR SIDE COVER (L) REDUCTION CUSHIO IV-A5 FRONT SUPPORTING TUBE IV-A31 MOTOR SIDE COVER (R) - Page 36 IV-A52 DECORATION COVER (the IV-A85 NYLON DRIVE PIPE middle 7th/11th) IV-A53 DECORATION COVER (the IV-A86 YELLOW WAX TUBE middle 7th/11th) IV-A54 RUBBER SPACER IV-A87 POWER CONNECT WIRE IV-A55 TUBE IV-A88 POWER CONNECT WIRE IV-A56 R TYPE CLIP IV-A89 POWER CABLE IV-A57 WASHER IV-A90...
- Page 37 IV-B LEFT & RIGHT UPRIGHT POST IV-B29 SCREW M4X13 IV-B1 UPRIGHT POST (L) IV-B30 SCREW M4X10 IV-B2 UPRIGHT POST (R) IV-B31 CONSOLE TUBE COVER INNER (R) IV-B3 UPRIGHT POST COVER OUTER IV-B32 CONSOLE TUBE COVER OUTER (R) IV-B4 UPRIGHT POST COVER OUTER IV-B33 Computer CABLE IV-B8...
-
Page 38: Exploded Drawing
Exploded Drawing TF70... -
Page 39: Warranty
WARRANTY Training equipment from cardiostrong® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 40 Warranty Service Within the warranty period, equipment which develops faults as a result of material or manufacturing defects, will be repaired or replaced at our discretion. Ownership of equipment or parts of equipment which have been replaced is transferred to us. The warranty period is not extended nor does a new warranty period begin following repair or replacement under the warranty.
-
Page 41: Contact
CONTACT TECHNICAL SUPPORT TECHNICAL SUPPORT & SERVICE TECHNICAL SUPPORT & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 172 770033 +49 4621 4210-945 +49 4621 4210-933 �� +49 4621 4210-698 �� �� info@fitshop.dk service-france@fitshop.fr �� technik@sport-tiedje.de ��... - Page 42 Private customers order via the 25 www.facebook.com/SportTiedje web shops in the respective national language or have their desired equpiment assembled on site. In addition, the company supplies fitness studios, hotels, sports clubs, companies and www.instagram.com/sporttiedje...
