Summary of Contents for Valiryo 2.0

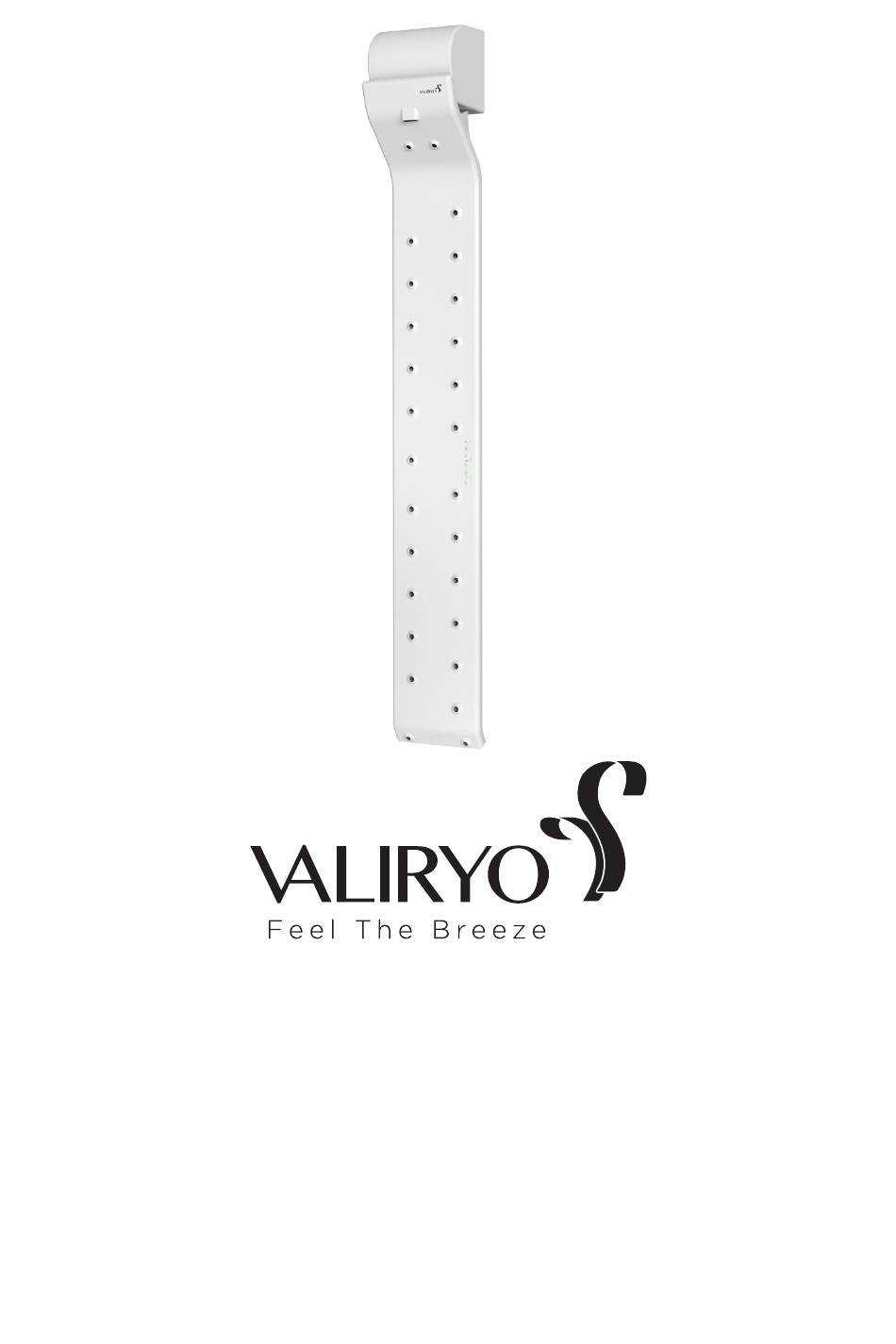

- Page 1 Instruction manual...
- Page 3 Instruction manual...
- Page 5 Instructions manual...
- Page 6 KEEP IN MIND THAT TO ENFORCE THE WARRANTY, THE PRODUCT MUST BE RETURNED IN ITS ORIGINAL PACKAGING, without damage and including all the pieces. Do not throw away any packaging or piece of the package!
-
Page 7: Security Warnings
Children should be supervised to ensure that they do not play with the appliance. Valiryo® can be used by children aged from 8 years* and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of Valiryo®... - Page 8 The installation must be done in accordance with the AS / NZS 3000 standard. Serial numbers starting with K3, K4 and K5 The means for disconnection for Valiryo without plug, must be incorporated into the fixed wiring according to the local wiring rules. www.valiryo.com...
- Page 9 It is recommended to install Valiryo® through the false ceiling. If installation is done through the wall, Valiryo®’s wiring is placed at 203 cm from the floor (when leaving a 10 cm margin between the floor or shower plate and the lower part of Valiryo®).
-
Page 10: Installation And Assembly
Wall plugs (x4) Strip Wall hooks (x4) Plate Stencils Plantilla para colocar Valiryo en: 1º Posiciona la plantilla en la pared 2º Marca la pared con el lápiz dentro de los agujeros Plantilla para colocar Valiryo en: 1º Posiciona la plantilla en la pared 2º... - Page 11 Valiryo® can be installed inside or outside the shower space. Valiryo® is covered in plastic film in order to protect its surface from possible damage. Do not peel it off until the correct functioning of the unit has been verified.
- Page 12 Bottom wall holes must be placed 180 cm from the floor Drill the 4 holes using a 5 mm drill bit Make sure the drill bit you are using 5 mm is suitable for the surface aimed to be drilled. www.valiryo.com...
- Page 13 Instructions for use Installation and assembly Realiza 4 agujeros en la pared Drill 4 holes on the wall Introduce 1 wall plug inside each hole. Use your hand first and then tap it fully inside using a hammer. Insert the wall hook’s threads inside the wall plugs. EN - Instruction manual...
- Page 14 Instructions for use Installation and assembly Install VALIRYO ´s column ® Affix the strip to the column by introducing the 4 screws. UNIDADE Calle Hermanos Imaz 6, Bajo Derecha 31002 Pamplona (Navarra) MATERIAL MATERIAL Tlf: (+34) 948 07 31 55 DIBUJANT DESCRIPCIÓN...
- Page 15 Instructions for use Installation and assembly Coloca la carcasa del secador Place VALIRYO ´s casing ® A person should hold the casing and suspend it between the wall and the column. Simultaneously, another person can slip the connection wire through the column slot.
- Page 16 Instructions for use Installation and assembly Coloca la carcasa del secador Place VALIRYO ´s casing ® Place the casing on the 2 top wall hooks. You will see the casing fits the column perfectly. UNIDADE lle Hermanos Imaz 6, Bajo...
- Page 17 Instructions for use Installation and assembly Connect the wire Prior to connecting the wire, make sure Valiryo® is not connected to the power network. Connect casing’s wire with the corresponding column wire in the single correct way. UNIDADE Calle Hermanos Imaz 6, Bajo...
- Page 18 Installation and assembly Connect the wire Connect Valiryo® to the electrical network by plugging it in. Turn It on to confirm it works (find the control pad’s instructions on page 34). Make sure it works properly. Try to connect the wire again in case it does not.
-
Page 19: Control Manual
Instructions for use Control manual CONTROL MANUAL EN - Instruction manual... - Page 20 Control manual TIPS FOR USING VALIRYO Valiryo is a relaxing breeze that can be installed in your shower. Best of all, you can adjust it to your liking to suit whatever your preferences are in that moment. It can be refreshing or it can be warm, it can be gentle or it can blow like a hurricane, you decide.
- Page 21 These are our tips for optimizing and enjoying your Valiryo: If you want the warmest feeling possible: Install Valiryo in your shower, so that the breeze is the best possible temperature for your body temperature. The Valiryo breeze can go up to 32˚C higher than the surrounding air, which means that the air...
- Page 22 Place yourself as close as possible to your Valiryo. The closer the Valiyro is, the less ambient temperature air gets between you and the Valiryo, meaning that you will directly feel the warm air of Valiryo’s inner breeze. Slowly turn in front of the Valiryo breeze. Enjoy the airtherapy, feel Valiryo’s natural breeze, notice how your mind calms, your skin...
-
Page 23: Technical Support
Temperature increase over Up to 32 ºC / 89.6 ºF room temperature Temperature and speed < 2 % variation between top and bottom diffusers Drying time < 3 minutes Installation Flat wall / Corner Ingress Protection Rating IP56 Contact info@valiryo.com www.valiryo.com... - Page 24 Made from 100 % Recycled Materials Body dryer...
