Summary of Contents for AK-NORD AK-SecurePowerSwitch

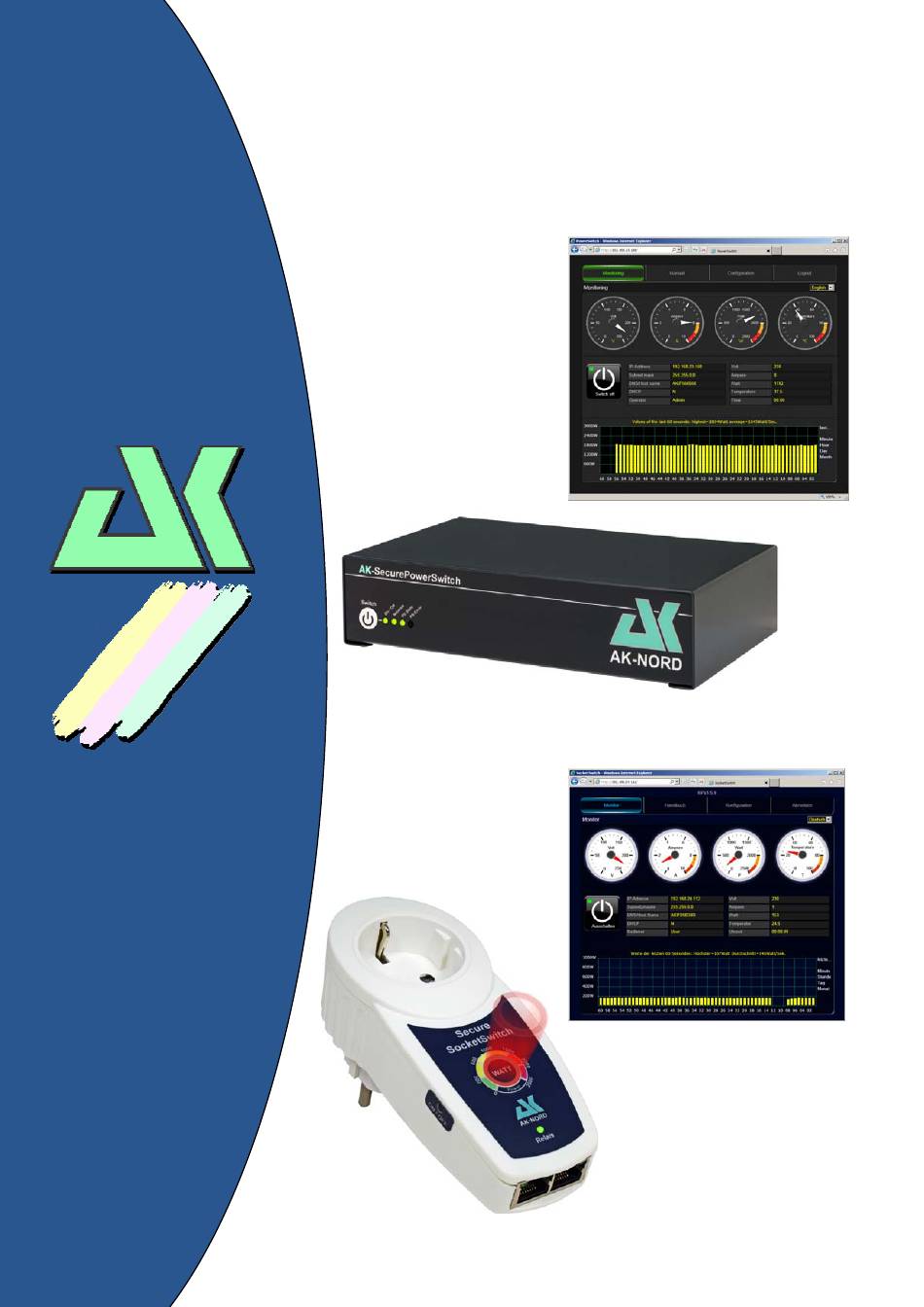

- Page 1 Manual AK-SecurePowerSwitch AK-SecureSocketSwitch AK-SecurePowerSwitch AK-Nord GmbH Stormstrasse 8 D-25524 Itzehoe Germany Phone: +49 (0) 4821 8040350 Fax: +49 (0) 4821 4083024 AK-SecureSocketSwitch...
-
Page 2: Table Of Contents
Contents Contents ................................2 AK-SecurePowerSwitch ..........................4 General description ........................... 4 Importance and functional principle of the relay ..................5 Specifications: ............................6 Front side ..............................7 Rear side ..............................8 AK-SecureSocketSwitch ..........................9 General description ........................... 9 Functional mode of the relay ........................10 Specification: ............................ - Page 3 Application example 5 ..........................49 Switching electrical devices via the Internet: ..................49 Registration: ............................50 Configuration: ............................51 Remote control with the PC via the Internet: ..................52 Remote control with the SmartPhone via the Internet: ................55 AK-SecurePowerSwitch Manual,...
-
Page 4: Ak-Securepowerswitch
- High system reliability - Short response time - The loads are switched bounce-free and free from wear - It is not possible to burn the contacts - No switching clicks - No electromagnetic emission (disturbing others) - Service- and maintenance-free AK-SecurePowerSwitch Manual,... -
Page 5: Importance And Functional Principle Of The Relay
(measuring instruments, small power supply units, etc.) this relay takes over the switching function. Furthermore, the PWR relay takes over the load when the SSR relay is being inactivated and thus avoids an unnecessary power consumption of the SSR relay. AK-SecurePowerSwitch Manual,... -
Page 6: Specifications
Zero-voltage switch Operating voltage = 48-660VAC Switching capacity = 50A Switching time = 10ms Max. overvoltage = 1200Vpk Max. impulse peak = 625 A(10ms) Max. load category AC51 = 50 Aeff Max. load category AC53 = 15 Aeff AK-SecurePowerSwitch Manual,... -
Page 7: Front Side
Indicates the state of the process part. Should flash once per second in case of an emergency. PS error: Indicates an error, such as e.g. the relays are switched, but no current flows since the terminal is still switched off. AK-SecurePowerSwitch Manual,... -
Page 8: Rear Side
IEC-60320 C13/C14 for the mounting sockets. Network connection This is a small MiniHub. It automatically distributes the incoming and outgoing network traffic. RS232 interface It can be used as DeviceServer and is provided for future functions such as e.g. room monitoring. AK-SecurePowerSwitch Manual,... -
Page 9: Ak-Securesocketswitch
Using our M2M solution, the AK-SecureSocketSwitch is easily and simply available via the Internet at any time. Without apps and without tools. AK-SecurePowerSwitch Manual,... -
Page 10: Functional Mode Of The Relay
AgSnO2 (silver tin oxyde) and therefore they have a little tendency to weld and a high burn-off resistance. Thus, the PWR relay offers you a high switching capacity, a high durability as well as a reliable and trouble-free operation. AK-SecurePowerSwitch Manual,... -
Page 11: Specification
SSLv3, TLS1.0, TLS1.1, TLS1.2 Relay: Contact material = AgSnO2 Max. continuous current = 16A Max. switch-on current = 25A Nominal voltage = 250V Max. switching voltage = 400V Max. switching capacity AC1 = 4.000 VA Max. switching capacity AC15 = 750VA AK-SecurePowerSwitch Manual,... -
Page 12: Front Side
Depending on the power consumption of the connected device, the current power consumptions will be displayed with colours. Relay – LED These LEDs indicate the following statuses: Indicates that the relay is switched on. Off: Indicates that the relay is switched off. AK-SecurePowerSwitch Manual,... -
Page 13: Rear Side
2.) Manually switch on/off the relay. The relay starts ON or OFF by shortly pressing the pushbutton. The status is displayed with the green relay LED. Once the status indicates green, the optical consumption display will also be illuminated but in blue. AK-SecurePowerSwitch Manual,... -
Page 14: Configuration
SecurePowerSwitch. This label is at the bottom of the device. For instance: 08-BB-CC-66-66-66 i.e. http://AKIF666666 The user name and the password in the delivery status are always “XT” and can be written in upper or lower case letters. AK-SecurePowerSwitch Manual,... - Page 15 Then you are requested to enter the user name and the password. For safety reasons, this page will be displayed until you have determined the user name and the password. After having made all entries, press the button “Save” and then switch over to the “Monitor”. AK-SecurePowerSwitch Manual,...
- Page 16 The existing WEB interface can be replaced, adapted or modified to the specific customer requirements. A flash file system is available which can be reached easily and simply after having activated it via an FTP connection. There you will find the complete homepage of SecurePowerSwitch. AK-SecurePowerSwitch Manual,...
-
Page 17: Standard Configuration
As long as the DHCP is positioned on “Y”, it is not possible to modify neither the IP address nor the subnet mask. Note: The modified values are only taken over when the system is restarted. To do so, press the button “Restart”. AK-SecurePowerSwitch Manual,... -
Page 18: Timer Settings
NTP: Set “NTP Y/N” to “Y” and press the button “Save”. After restarting, the NTP time will fade Note: To do so, it is necessary to connect the AK-SecurePowerSwitch to the Internet. RTC: preparation) The current PC will be faded in. Press the button “Adopt” and the time will be saved in the RTC. -
Page 19: Watchdog Function
Possible switch conditions: Immediately: If the current condition of the row is valid, it is immediately switched over. Conditionally: All rows need to be valid which have the current relay switch status. AK-SecurePowerSwitch Manual,... -
Page 20: History Function
A switch function was triggered via a TCP/IP connection OverCurrent: The measured current flow was too high. StartUp: When switching the PowerSwitch it was determined that it shall be switched on immediately. Button: The external switch was pressed. AK-SecurePowerSwitch Manual,... -
Page 21: Options
Enter the rendezvous server here. In this case „ “ akserver1.com Note: These functions are only activated after restarting the system. Do not use any special characters for the account name and the password and pay attention to the using upper and lower case letters! AK-SecurePowerSwitch Manual,... -
Page 22: Expert Configuration
“AKIF” and the last three digits of the MAC address. The MAC address can always be found on the device label of the SecurePowerSwitch. This label is positioned at the bottom of the device. In this example :AKIF666666 and your standard password. AK-SecurePowerSwitch Manual,... - Page 23 Configuration Click again on the button “Configuration” in the top menu and then the button “Expert- Settings” will be displayed. Enter the special configuration menu of the SecurePowerSwitch by pressing the button “Expert-Settings”. AK-SecurePowerSwitch Manual,...
- Page 24 Select “I” for “INTERFACE MENU”. To do so, enter an “I” into the input row and then press the button “ENTER”. Then press “1+ENTER” and once again “1+ENTER”. Then you are in the “Config Menu” of the SecurePowerSwitch. AK-SecurePowerSwitch Manual,...
- Page 25 In order to modify the value, first enter the figure or the letter of the menu item, the icon “=” and then the new value. Confirm your entry by pressing the button “ENTER”. Then the menu will be displayed with the new value. AK-SecurePowerSwitch Manual,...
- Page 26 Herewith you determine the TCP-IP control port for the ASCII commands. It is blocked if it is set to “0”. 8 = With SSL/TLS = N Herewith you determine if the control port is only enabled via an encrypted connection. N = unencrypted. Y = encrypted via SSL/TLS AK-SecurePowerSwitch Manual,...
-
Page 27: Changing The Homepage
In order to access the Flash-File system of the SecurePowerSwitch enter e.g. ftp://akif666666 in the Internet Explorer instead of http://akif666666. You also have the option to use an FTP program. Change-over to the FTP screen of the Internet Explorers. AK-SecurePowerSwitch Manual,... - Page 28 Make sure that the index file is always named “index.htm”. Always copy the SSL certificates or a new UPDATE on the root directory “Volume1”. For the update, please first delete the directory HTML and the index.htm. Then copy the update on the “Volume1” and restart the system. AK-SecurePowerSwitch Manual,...
-
Page 29: Replacing The Firmware
But delete the directory “HTML” as well as the “index.htm” and subsequently copy the update on the root directory (Volume1). Then close the FTP Explorer and click on “Restart” Note: The previously deleted homepage will be automatically recreated. AK-SecurePowerSwitch Manual,... -
Page 30: Ssl Encryption
(CA) that is unknown to the browser. It is also possible that the certificate was created for another name (CN) which does not correspond to the above indicated address (IP). AK-SecurePowerSwitch Manual,... -
Page 31: Ssl Encryption
The file name has to read “AKIF” with the last three digits of the MAC address or “AK_SERVER”. The letters can be upper or lower case. Both files have to be saved in the “PEM“” format. Example: The MAC address reads 08-BB-CC-66-66-66. Then you can either copy AKIF666666.CRT AKIF666666.KEY AK_SERVER.CRT AK_SERVER.KEY to the SecurePowerSwitch. AK-SecurePowerSwitch Manual,... - Page 32 If you create a certificate yourself e.g. by using the OPENSSL tool then you have to install the corresponding CA file using the public key on your browser. Note: If the certificate is edited by an official “CA” it is not necessary to do anything else. AK-SecurePowerSwitch Manual,...
- Page 33 SSL encryption Restart the browser and then enter e.g. “HTTPS://AKIF666666”. Your Browser will no longer indicate an unsafe connection. AK-SecurePowerSwitch Manual,...
-
Page 34: Client Certificate (Client Side Certificate)
(Server) and to set the “Server verify opt” in the SSL menu to “7”. The CA file must have the following properties. The name of the CA file must always read AK_CA.CRT The letters can be upper or lower case. The file has to be saved in the “PEM” format. AK-SecurePowerSwitch Manual,... - Page 35 Note: If you do not want to purchase an official certificate for your application we will help you in creating these certificates using the OPENSSL tool. AK-SecurePowerSwitch Manual,...
-
Page 36: Data Exchange Via Tcp/Ip
It is possible to test all control commands via the network using the PSW test program. It includes the network protocols TCP and UDP and can be used under Windows. It shows the sent and and received control commands. AK-SecurePowerSwitch Manual,... -
Page 37: Commands
For this setting it is possible to set a threshold value in the configuration. Remark: Power consumption It indicates the effective current consumption of the connected consumers in watts. Note: CS1-4 can only be read from version 1.5.0. <PC..> can only be executed from version 1.7.6. AK-SecurePowerSwitch Manual,... -
Page 38: Data Exchange By Xml
Consumption data of the last 60 minutes in watts consumption=3 Consumption data of the last 24 hours in watts consumption=4 Consumption data of the last 30 days in watts Note: „req=64830“ is not necessary to be sent It only serves to distinguish the single requests. AK-SecurePowerSwitch Manual,... -
Page 39: Switching The Relay
= Off in 1 minute. On in 15 minutes <PCT>15</PCT> = PowerCyle deactivate <PCT>0</PCT> Note: All time values given in minutes. Execute an HTTP-GET “AK_PC.XML” and you get the following XML data <?xml version="1.0" encoding="UTF-8"?> <AK_PC> <PCT>OFF=0:0:56</PCT> </AK_PC> Note: Response in days: minutes: seconds AK-SecurePowerSwitch Manual,... -
Page 40: Application Example 1
If all 5 working places are switched off, the departmental printer may also be switched off. As soon as the first working place is switched on again, the departmental printer should also be switched on again. 110V - 230V~ 192.168.23.101 192.168.23.102 192.168.23.103 Network 192.168.23.104 192.168.23.105 Network Power supply cord(110- 230V) AK-SecurePowerSwitch Manual,... -
Page 41: Settings
In order to check the function, the individual numbers of the conditions indicate the status of the test in colours. Green: The condition applies. Yellow: The condition applies; the test is not completed yet. Red: The condition does not apply. AK-SecurePowerSwitch Manual,... -
Page 42: Application Example 2
You have a working place with a PC, monitor, printer and a working place lamp. If the PC/computer is switched off, all power consumers should be automatically switched off. 110V - 230V~ 110V - 230V~ 110V - 230V~ 192.168.23.80 Network Power supply cord(110- 230V) AK-SecurePowerSwitch Manual,... -
Page 43: Settings
In order to check the function, the individual numbers of the conditions indicate the status of the test in colours. Green: The condition applies. Yellow: The condition applies; the test is not completed yet. Red: The condition does not apply. AK-SecurePowerSwitch Manual,... -
Page 44: Application Example 3
60 watts at the working place, otherwise you consume 120 watts. With the help of the power consumption it is possible to determine if the working place is currently used or not. 110V - 230V~ 110V - 230V~ 192.168.23.80 Power supply cord(110- 230V) AK-SecurePowerSwitch Manual,... -
Page 45: Settings
Enter the working hours for each day of the week. I.e. at what time the working place shall be supplied with power and when power shall be switched off. Additionally enter as condition that the SecurePowerSwitch shall only be switched off, if it detects that less than 70 watts are used after 5 p.m. AK-SecurePowerSwitch Manual,... -
Page 46: Application Example 4
Sometimes, no Internet connection is available. In order to remedy this problem, briefly switch the router off and on again. The SecurePowerSwitch can independently detect this fault and automatically execute an interruption in the power supply. Internet 110V - 230V~ 110V - 230V~ Network Network Power supply cord(110-230V) Switching line(110-230V) AK-SecurePowerSwitch Manual,... -
Page 47: Settings
In order to check the function, the individual numbers of the conditions indicate the status of the test in colours. Green: The condition applies. Yellow: The condition applies; the test is not completed yet. Red: The condition does not apply. AK-SecurePowerSwitch Manual,... - Page 48 (router) needs some time in order to restore the normal function or working capacity. If the time is too little, the SecurePowerSwitch switches off the power of the router before it was even possible to reach the indicated server. AK-SecurePowerSwitch Manual,...
-
Page 49: Application Example 5
Switching electrical devices via the Internet: Example: Controlling the SecurePowerSwitch via the Internet. Internet Mobile Remote 110V - 230V~ ADSL Router Network 110V - 230V~ Household Automatic other electrical devices machines consumers Network Power supply cord(110-230V) Switching line(110-230V) AK-SecurePowerSwitch Manual,... -
Page 50: Registration
Register on the homepage http://www.myopengate.com and follow the instructions on the homepage. Note: Do not use any special characters for the user name/account name and the password and pay attention to the using upper and lower case letters! AK-SecurePowerSwitch Manual,... -
Page 51: Configuration
Note: Generally you do not need to reconfigure your router on site for this process. The whole log-in and the connection establishment is executed encrypted. AK-SecurePowerSwitch Manual,... -
Page 52: Remote Control With The Pc Via The Internet
Connection Remote control with the PC via the Internet: Connect your device again under http://myopengate.com and log-in your account with your M2M access data. AK-SecurePowerSwitch Manual,... - Page 53 Connection Then select the “Device list” from the menu. All devices connected to this account are displayed. Then click on the corresponding device icon and you are immediately connected to the device. AK-SecurePowerSwitch Manual,...
- Page 54 Since it is protected by access data, you have to enter the user name and the password of the SecurePowerSwitch here. (refer to Determine password or Expert configuration) Then you can switch the device on or off which is connected to the SecurePowerSwitch, read the current power consumption or change the settings. AK-SecurePowerSwitch Manual,...
-
Page 55: Remote Control With The Smartphone Via The Internet
SecurePower- course, since it is protected by access data, Switch, read the current power consumption you have to enter the user name and the or change the settings. password of the SecurePowerSwitch here. AK-SecurePowerSwitch Manual,...
