JYE Tech FG085 Quick Use Manual

FG085 Function Generator
Quick Use Guide
Applicable Model: 08503, 08503K, and 08504K

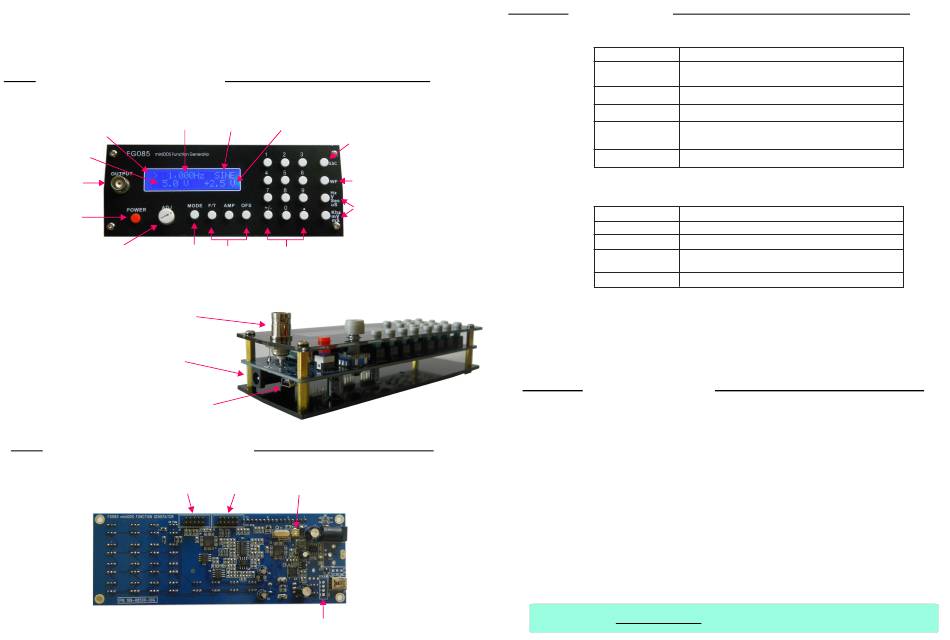

Panel & Connectors
Frequency
or period
Cursor
Amplitude
Output
connector
Power ON/OFF
Incremental
Select
adjustment
Mode
(push for setting
change)
Output
connector
Power connector
( central pole positive )
USB connector
Headers & Adjustment
U6
program
Waveform DC offset
Correction
or exit
Select waveform
Select unit
Select
Data entry
parameter
LCD contrast
U5
adjustment
program
Alternative
USBconnector
Operating
1. Constant Waveform (CW) Mode
Function Operations
Set Frequency
[F/T] + [Data Entry Keys *] + [Unit Key]
or Period
Set Amplitude
[AMP] + [Data Entry Keys *] + [Unit Key]
Set Offset
[OFS] + [Data Entry Keys *] + [Unit Key]
Incremental
Select parameter and turn [ADJ] dial
Adjustment
Select Waveform Press [WF] key
* Note: Use [ESC] to correct or cancel input
2. Servo Position Mode
Function Operations
Set Pulse Width [F/T] + [Data Entry Keys *] + [Unit Key]
Set Amplitude
[AMP] + [Data Entry Keys *] + [Unit Key]
Incremental
Select parameter and turn [ADJ] dial
Adjustment
Change Settings Push [ADJ] (refer to detailed manual)
* Note: Use [ESC] to correct or cancel input
3. Servo Run Mode
Use [WF] key to start and hold servo running.
4. Mode Selection
[MODE] + {Turn [ADJ] to select} + [WF]
Specification
Ø
Frequency range: 0 - 200KHz (Sine)
Ø
Frequency resolution: 1Hz
Ø
Frequency accuracy: 100 ppm
Ø
Period resolutions: 1ms
Ø
Amplitude range: 0 10V peak-to-peak
Ø
D.C. offset range: -5V +5V
Ø
Waveform memory length: 256 bytes
Ø
Sample rate: 2.5Msps
Ø
Output impedance: 50 ohm
Ø
Power supply voltage: 15V DC +/- 10%
Ø
Current consumption: < 150mA (without loading)
Please visit www.jyetech.com for detailed manual and related documents
