Potter's Wheel Instruction Manual

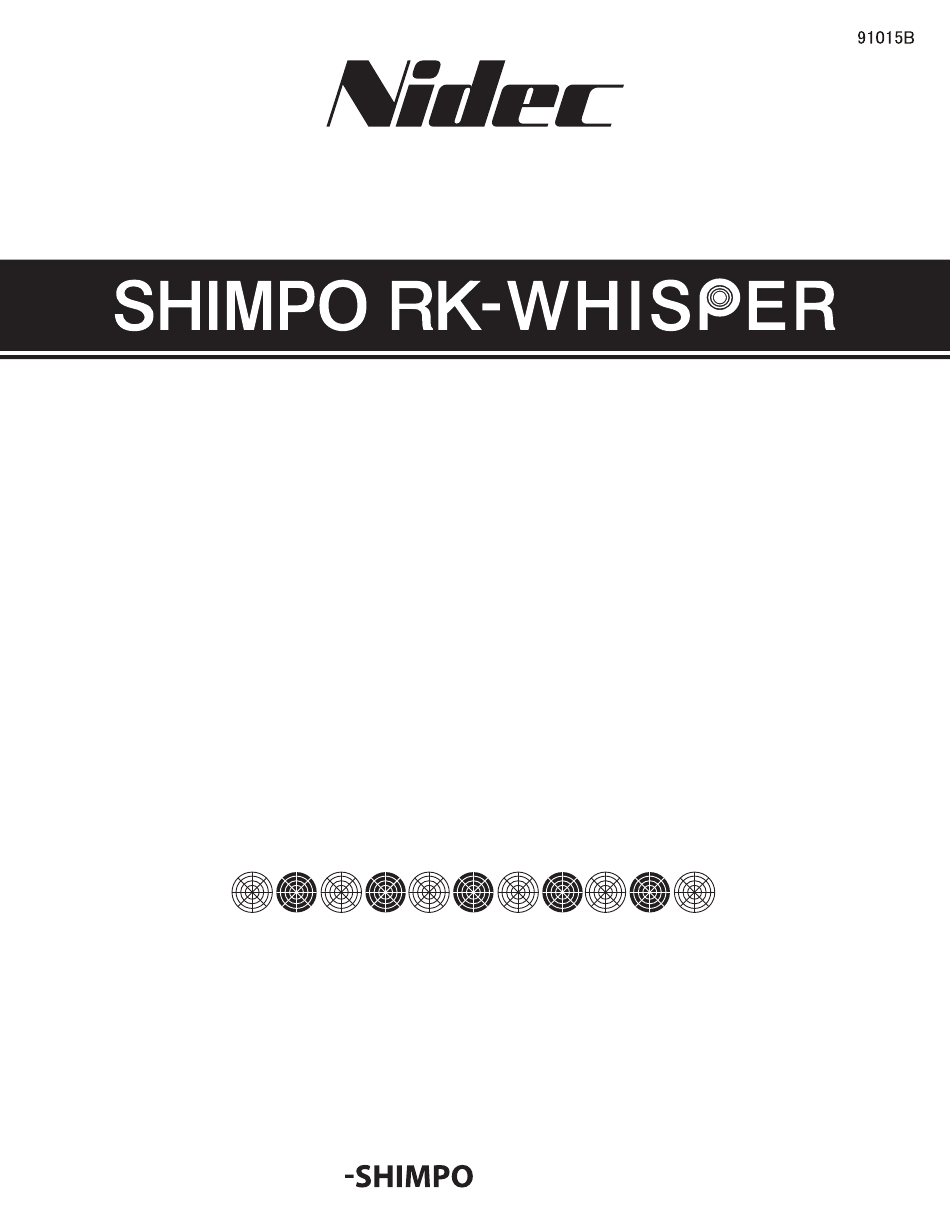

Thank you for your purchase of the SHIMPO RK-WHISPER Potter's
wheel. This manual is provided for you to enjoy throwing clay safely,
describing how to use the SHIMPO RK-WHISPER and giving several
warnings for safe operation. Please read this manual before you
start using the wheel and keep it near the wheel for your reference.
NIDEC
CORPORATION
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Nidec SHIMPO RK-WHISPER
Summary of Contents for Nidec SHIMPO RK-WHISPER
- Page 1 Potter’s Wheel Instruction Manual Thank you for your purchase of the SHIMPO RK-WHISPER Potter’s wheel. This manual is provided for you to enjoy throwing clay safely, describing how to use the SHIMPO RK-WHISPER and giving several warnings for safe operation. Please read this manual before you start using the wheel and keep it near the wheel for your reference.
- Page 2 The Whisper Series offers the power, resilience and qui et ness that Shimpo wheels are known for. Features of the RK Whisper in clude Heavy-duty steel construction assures long service life. Brushless DC motor direct drive system en sures powerful, essentially noiseless op er a tion.
- Page 3 This machine is built specifically for use as a potter's wheel. Use for purposes other than pot tery may put you at risk of danger or harm Do not use your wheel with any voltage other than that spec i ed. Do not plug power cord into an extension cord (plug directly into an elec tri cal wall outlet).
- Page 4 The following steps should be followed BEFORE operating the wheel 1. Remove wheel from shipping box. 2. Place wheel on a rm and stable work surface. 3. Foot pedal and splashpan are shipped dis as sem bled. Remove them from their packing material. 4.
- Page 5 Splash pan wheel head Handle FWD/REV switch Adjustable foot Foot pedal Motor breaker(Power switch) Power Cord 1.Plug in rmly. 2.Turn on the power switch. 3.Turn FWD/REV switch in re quired direction of rotation.FWD - clock wise, REV - counter clock wise. STOP FAST 4.Depress the speed pedal so that the...
- Page 6 7.DO NOT change rotation direction while STOP motor is running. Do so only after wheelhead has come to a complete stop. STOP 8.At "0" rpm the wheelhead can be turned freely for use as a banding wheel. ● Adjust the stiffness Pedal might get stiff or loose after long year usage.
- Page 7 Model: SHIMPO RK-WHISPER Motor: 400W AC115V AC.60Hz Drive System: Direct drive DC brushless motor with electric speed control Wheel head speed: 60Hz 0~250rpm Speed control:Fixed foot pedal with lever. Wheel head direction: clock wise/counter clock wise Wheel head: Light alloy casting, diameter 12” drilled for bat pins Dimensions: 20”(width)
- Page 8 MANUFACTURED BY NIDEC-SHIMPO CORPORATION 175 Wall Street Glendale Heights, IL 60139 Phone: 1-800-237-7079 Fax: 630-924-0340...
