STAMINA WAVE 1450 Owner's Manual

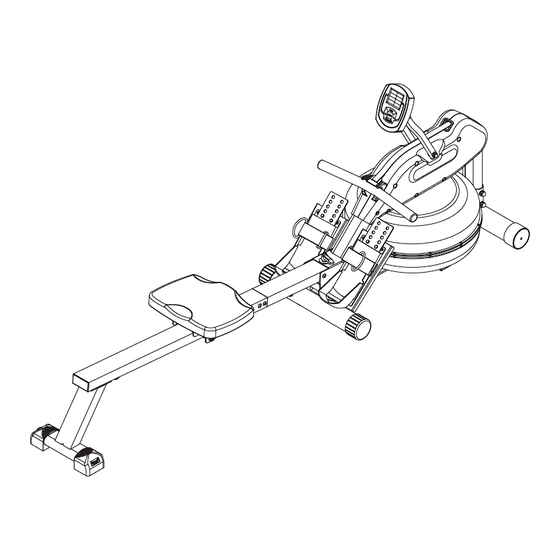

Water rowing machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Product May Vary Slightly From Pictured.
CAUTION:
Weight on this product should not exceed 300 lbs.
This Product is Distributed Exclusively by
2040 N Alliance Ave, Springfield, MO 65803
www.staminaproducts.com
Customer Care
1 (800) 375-7520
Owner's
Manual
WARNING
!
Exercise can present a
h e a l t h r i s k . C o n s u l t a
physician before beginning
any exercise program with
this equipment. If you feel
faint or dizzy, immediately
d i s c o n t i n u e u s e o f t h i s
equipment. Serious bodily
i n j u r y c a n o c c u r i f t h i s
equipment is not assembled
and used correctly. Serious
bodily injury can also occur
if all instructions are not
followed. Keep others and
pets away from equipment
when in use. Always make
sure all bolts and nuts are
securely tightened prior to
each use. Follow all safety
instructions in this manual.
When calling for parts or
service, please specify
the following numbers :
Model#: 35-1450A
S/N: _____________
STAMINA PRODUCTS
MADE IN CHINA
©
2016 Stamina Products, Inc.
2019, 03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1450 and is the answer not in the manual?

Questions and answers

Related Manuals for STAMINA WAVE 1450

Summary of Contents for STAMINA WAVE 1450

  • Page 1 Owner's Manual WARNING Exercise can present a h e a l t h r i s k . C o n s u l t a physician before beginning any exercise program with this equipment. If you feel faint or dizzy, immediately d i s c o n t i n u e u s e o f t h i s equipment.

  • Page 3: Table Of Contents

    17. The Wave Water Rowing Machine 1450 should not be used by persons weighing over 300 pounds. 18. The Wave Water Rowing Machine 1450 should be used by only one person at a time. 19. The Wave Water Rowing Machine 1450 is for consumer use only. It is not for use in public or semipublic facilities.
  • Page 4 NEED HELP? CONTACT US FIRST 1 (800) 375-7520 customer.care@staminaproducts.com Hi! From all of us here at Stamina Products, thank you for your purchase. We know that you have big fitness goals in mind and we are here to help you along. Call us, email us, or send us a message on Facebook.

  • Page 5: Before You Begin

    BEFORE YOU BEGIN Thank you for choosing the Wave Water Rowing calling for assistance. Machine 1450. We take great pride in producing Read this manual carefully before using the this quality product and hope it will provide many Wave Water Rowing Machine 1450.

  • Page 6: Equipment Warning, Caution & Notice Labels

    EQUIPMENT WARNING, CAUTION & NOTICE LABELS This chart is provided to help identify the warning, caution, and notice labels on the Wave Water Rowing Machine 1450. Please take a moment to familiarize yourself with all of the warning, caution, and notice labels.

  • Page 7: Hardware Identification Chart

    HARDWARE IDENTIFICATION CHART This chart is provided to help identify the hardware used in the assembly process. Place the washers or the ends of the bolts or screws on the circles to check for the correct diameter. Use the small scale to check the length of the bolts and screws.

  • Page 8: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Place all parts from the box in a cleared area and position them on the floor in front of you. Remove all packing materials from your area and place them back into the box. Do not dispose of the packing materials until assembly is completed.
  • Page 9 ASSEMBLY INSTRUCTIONS STEP 3 Attach the SHORT RAIL(3) to the MAIN FRAME(2) with BUTTON HEAD BOLT(M6x1x15mm)(71) and BARREL NUT(M8x1.25x88mm)(98). Lock the RAIL(3) in unfold position with the FIXING LEVER(46) and LARGER WASHER(ø10.5mmxø40mmx3mm thick)(9). NOTE: After tightening the FIXING LEVER(46) the rear stabilizer of the BASE FRAME(1) might be raised off the floor slightly, this is normal, it will rest on the floor once you are seated.

  • Page 10: Operational Instructions

    SENSOR STRAP(103) monitor your heartbeat, and the adjustable ELASTIC SENSOR STRAP(103) holds the transmitter in place. The receiver built into the Wave Water Rowing Machine 1450 picks up your heart rate from the HEART RATE TRANSMITTER(102) and displays it on the monitor during your workout.
  • Page 11 Do not stretch the heart rate sensor electrodes. NOTE: The frequency of the receiver built into the Wave Water Rowing Machine 1450 is 5 kHz. All compatible heart rate transmitters from other companies will work with the Wave Water Rowing Machine 1450.
  • Page 12 OPERATIONAL INSTRUCTIONS USING THE FITNESS METER POWER ON: Handlebar movement or press any button. POWER OFF: Automatically shuts off after 4 minutes of inactivity. FUNCTION BUTTONS : MODE : Press and release to select each function for preset target values for TIME, COUNT, DISTANCE, CALORIES, and PULSE.
  • Page 13 OPERATIONAL INSTRUCTIONS PRESET VALUES OPERATION: You can pull on the HANDLEBAR(8) to power on the meter and workout with the meter directly. Or, you can preset the function values for counting down. Stop rowing for four seconds, then press the MODE button to enter setting mode.
  • Page 14 OPERATIONAL INSTRUCTIONS PULSE RECOVERY FUNCTION NOTE: To use this program, you must wear the HEART RATE TRANSMITTER(102) around your chest. The PULSE RECOVERY function measures how quickly you return to a resting heart rate after exercising. You can use this function to measure improvement as you get into shape. The meter will monitor your heart rate for 60 seconds and calculate a Pulse Recovery value from 1 to 6.
  • Page 15 OPERATIONAL INSTRUCTIONS HOW TO FILL AND EMPTY THE TANK 1. Remove the FILL PLUG(24) from the UPPER TANK(17). 2. To fill with water, refer to illustration A. Place the FUNNEL(101) into the tank. Use a water cup, or the SYPHON PUMP(100) and a bucket to fill the tank. Use Water Level Gauge on the side of tank to measure volume of water in tank to the desired level.

  • Page 16: Storage

    1450 removed from service until repair is made. 8. Only Stamina Products supplied components shall be used to maintain/repair the Wave Water Rowing Machine 1450. 9. Keep your Wave Water Rowing Machine 1450 clean by wiping it off with an absorbent cloth after use.

  • Page 17: Trouble Shooting Guide

    TROUBLE SHOOTING GUIDE STRAP REPLACEMENT Over time, the STRAP(95) may become frayed or worn. If your Wave Water Rowing Machine 1450 is within the 90 day warranty, a replacement STRAP(95) is available by contacting Stamina Customer Care at customer.care@staminaproducts.com. If your Wave Water Rowing Machine 1450 is not under warranty, you can purchase a replacement STRAP(95).
  • Page 18 TROUBLE SHOOTING GUIDE Loop Pad of the Strap Pulley Loop Pad of the Strap Strap facing down. Strap Pulley Strap Strap/ Protection Idle Roller Bungee Pulley Ring Strap Make sure the Loop Pad of the new Strap is Run the Strap through the Strap Pulley, turn it facing down, run the Strap through the Protection 90 degrees on the Idler Roller, then attach to the Ring, then run over and around the Strap Pulley.
  • Page 19 Over time, the BUNGEE CORD(88) may become frayed or worn. If your Wave Water Rowing Machine 1450 is within the 90 day warranty, a replacement BUNGEE CORD(88) is available by contacting Stamina Customer Care at customer.care@staminaproducts.com. If your Wave Water Rowing Machine 1450 is not under warranty, you can purchase a replacement BUNGEE CORD(88).
  • Page 20 TROUBLE SHOOTING GUIDE Place the Handlebar Strap/ at this position. Strap Pulley Bungee Pulley Bungee Cord Bungee Pulleys Bungee Bungee Pulley Cord Run the new Bungee Cord through the Strap/ Rotate the Strap/Bungee Pulley enough to place Bungee Pulley, and pull the Bungee Cord to the the Handlebar up against the Strap Pulley.

  • Page 21: Conditioning Guidelines

    CONDITIONING GUIDELINES How you begin your exercise program depends on your physical condition. If you have been inactive for several years or are severely overweight, start slowly and increase your workout time gradually. Increase your workout intensity gradually by monitoring your heart rate while you exercise. Remember to follow these essentials: Have your doctor review your training and diet programs.

  • Page 22: Warm-Up And Cool-Down

    WARM-UP and COOL-DOWN Warm-Up The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm up for two to five minutes before strength training or aerobic exercising. Perform activities that raise your heart rate and warm the working muscles. Activities may include brisk walking, jogging, jumping jacks, jump rope, and running in place Stretching Stretching while your muscles are warm after a proper warm-up and again after your...

  • Page 23: Warranty

    LIMITED WARRANTY MODEL 35-1450A WARRANTY Stamina Products, Inc. (“Stamina”) warrants to the original purchaser that this product will be free from defects in materials and workmanship that arise under normal use, service, proper assembly and proper operation in accordance with product warnings/instructions for a period of 90 days on the parts and three years on the frame from the date of the original purchase from an authorized retailer.

  • Page 24: Product Parts Drawing

    PRODUCT PARTS DRAWING FRONT BACK...

  • Page 25: Parts List

    PARTS LIST PART# PART NAME Base Frame Main Frame Short Rail Rear Stand Seat Carriage Meter Post Support Plate Handlebar Larger Washer (ø10.5mm x ø40mm x 3mm thick) Impeller Impeller Shaft Short Spacer Strap Pulley Bushing Bungee Cord Pulley Bushing Small Bungee Cord Pulley Bushing Upper Tank Lower Tank...
  • Page 26 PARTS LIST PART# PART NAME Bolt, Flat Head (M6 x 1 x 10mm) Bolt, Round Head (M10 x 1.5 x 100mm) Bolt, Button Head (M8 x 1.25 x 130mm) Bolt, Button Head (M8 x 1.25 x 120mm) Bolt, Button Head (M8 x 1.25 x 95mm) Bolt, Round Head (M8 x 1.25 x 90mm) Bolt, Button Head (M8 x 1.25 x 68mm) Bolt, Hex Head (M8 x 1.25 x 15mm)

  • Page 27: Fax/Mail Ordering Form

    TO CONTACT CUSTOMER CARE For your convenience, Stamina’s customer care representatives can be reached by email at customer.care@staminaproducts. com or by phone at 1-800-375-7520 (in the U.S.). Our customer care representatives are available Monday through Thursday from 7:30 a.m. until 5:00 p.m., and Friday 8:00 a.m. until 3 p.m. Central Time. ONLINE TELEPHONE MAIL...
