SPECIFICATIONS

-
Max 30 watts SSB and CW peak power, 5 watts on PSK and digital modes.
-
1.8 to 54.0 MHz coverage. 16,000 memories for instantaneous frequency
-
Tuning time: 0.1 to 5 seconds full tune, 0.1 seconds memory tune.
-
For dipoles, verticals, Vees, beams, long wire or any coax-fed antenna.
-
Dimensions: 13.8cm x 6.1cm x 2.3cm (L x W x H).
-
Weight: 300g.

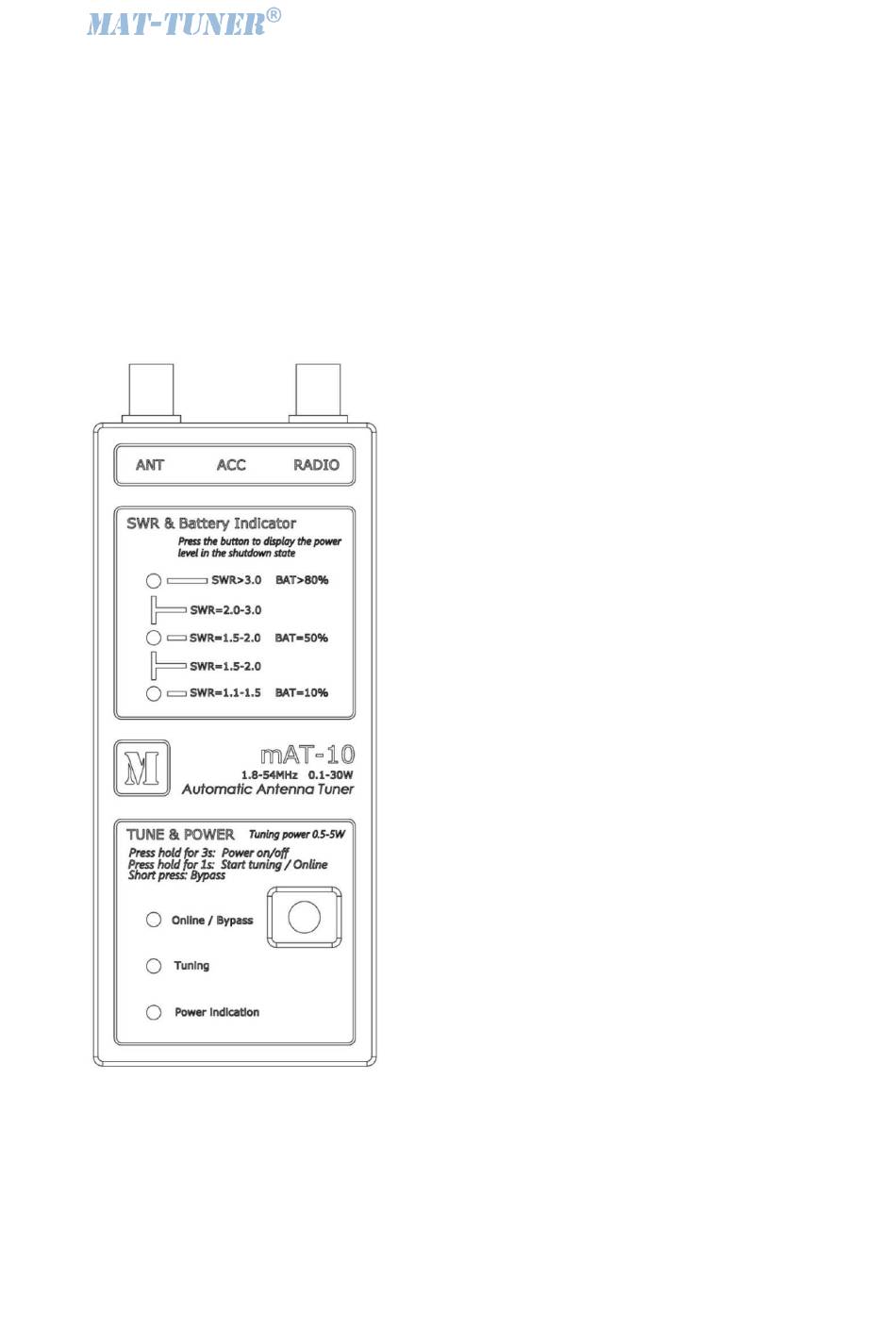

FRONT PANEL

The mAT-10 has a multi-function key and six indicator lights. The multi-function key has main

CONTROL CABLE mAT-CY

The mAT-10's control cable mAT-CY provides control signals between FT-817/818 and the
tuner. When the mAT-10 is turned on, it will automatically detect whether it is connected to
YAESU FT-817/818 through the control cable. If so, the internal software matching FT-817/818
will start running. If it is not connected to FT-817/818, the internal general tuner software will be
run.
power switch, on-line/off-line, start tuning cycle,
battery power level display function.
SWR & Battery Indicator: When the tuner is turned
on, the three lights show the current SWR. When the
tuner is turned off, after pressing the multi-function
key, the three indicators show the battery's power level.
Online/Bypass: The tuner is online when the indicator
lights up. When the indicator light is off, it means the
tuner is in an bypass state.
Tuning: When the tuner starts the tuning process, the
indicator lights up. Indicator light goes off to indicate
the end of the tuning process.
Power Indicator: Light on means the tuner is
operational, off means power off
There are two BNC RF sockets and one ACC socket
at the top of the mAT-10. The "ANT" connector is
used to connect the antenna. The "RADIO" connector
is connected to RF output of transceiver via coaxial
cable. "ACC" uses control cable mAT-CY to connect
the ACC socket of FT-817/818.
The charging socker of the mAT-10 is on the
bottom. Two 10440 lithium batteries installed inside
tuner to provide power for the tuner. Tuner can only be
charged with its attached 8.4 vDC charger.
Important Note: Before the first use of the tuner or
after the battery is replaced, the tuner must be
charged by the charger.
