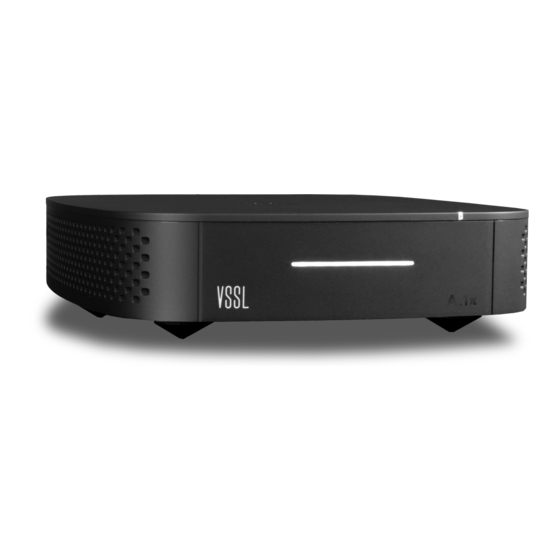

VSSL A.1 Product Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Table of Contents

Need help?

Do you have a question about the A.1 and is the answer not in the manual?

Questions and answers

Summary of Contents for VSSL A.1

Page 2 Office. Additionally VSSL has other product names and slogans that are protected under U.S. Trademark laws, which may not be used without the express written permission of VSSL, LLC. Please take notice that VSSL™ products may also be protected by one or more patents issued by the U.S. and other countries.
Page 3: Table Of Contents
V S S L A . 1 – Product Guide T A B L E O F C O N T E N T S W E L C O M E T O V S S L ........5 P R O D U C T O V E R V I E W .
Page 4 V S S L A . 1 – Product Guide L e a r n i n g I R C o m m a n d s ......... 1 5 P L A Y I N G M U S I C .
Page 5: W E L C O M E T O V S S L
Just the music you love. § Controlled by voice. VSSL strives to deliver you the best music listening experience based on your music ecosystem. By incorporating Apple Airplay2, Google Chromecast, and Spotify Connect, you can choose your favorite music app, device, and ecosystem.
Page 6: R E A R
V S S L A . 1 – Product Guide Device Status Indicator Indicates the status of the zones. See the Device Status section for more details. Flashing red - device is powering up and connecting to network Solid yellow - device has no network connection Solid white - device is active with audio playing via analog input or streaming Flashing white –...
Page 7: A C C E S S O R I E S
V S S L A . 1 – Product Guide Power Input 100-240VAC 50/60 Hz Use the power cord supplied with the unit. Adapters can be used for international power connections. Digital Inputs (1) Digital coax, (1) optical. Analog Input Analog RCA input.
Page 8: K E Y F E A T U R E S
N a t i v e S t r e a m i n g Native Streaming™ by VSSL, means you get to listen to your music from the music apps you already love. By integrating with Airplay2, Chromecast built-in, Spotify Connect, Bluetooth, and DLNA, you can open and play your music app on any device and play your music on your speakers.
Page 9: S I R I
“Fast forward 30 seconds”, “Rewind 10 seconds”, etc. To use Siri with your A.1, you must first add the device to your home in the iOS Apple Home app on iOS. Please follow the recommended procedure from Apple. See the following support article: https://support.apple.com/en-us/HT208724.
Page 10: D E V I C E S T A T U
4. The zone indicator will briefly show white to indicate the zone is ready and connected to the network. 5. If the A.1 has not been set up in the Google Home app, then the zone indicator will flash white until this is completed.
Page 11: S O F T W A R E U P D A T E
V S S L A . 1 – Product Guide A u t o The only power mode on the A.1 is auto. This auto mode allows the device to enter network standby mode after 10 minutes of no music output. To wake the device from network standby mode, the user can start a music stream to the device.
Page 12: I N S T A L L A T I O
R a c k I n s t a l l a t i o n For rack installations, you can use a standard 1U rack shelf to install 2 A.1 units side by side. It is recommended to have at least 0.5” of head room above the A.1. If you are going to stack multiple A.1 devices on top of each other, you must use the magnetic feet attached to the...
Page 13: C O N N E C T I N
V S S L A . 1 – Product Guide C o n n e c t i n g Terminate your speaker wire in the included phoenix connector. Make sure to connect the negative and positive cables to the proper left and right channels as marked on the phoenix connector.
Page 14: C O N N E C T T O I N T E R N E
The A. 1 can be connected to your local network via ethernet or Wi-Fi. If you want to connect your A.1 with Wi-Fi, then you will use the Google Home app to configure the Wi-Fi settings. C o n f i g u r a t i o n Use the VSSL app to adjust all settings for the VSSL system.
Page 15: E X T E R N A L A U D I O S O U R C E ( I N P U
You can set the output to be fixed using the VSSL app. 3. If the A.1 will act only as a source, then you can enable line out only mode by setting the switch labeled Line Out Only to the on position.
Page 16: M A C O S ™ / O S X ® D E V I C
Android phone or tablet, Mac® or Windows® laptop, or Chromebook. With Chromecast built into your VSSL A.1, your phone becomes your remote. Simply tap the Cast button from the app to stream music/tunes/podcasts/ playlists from your phone, tablet or laptop to your VSSL A.1.
Page 17: M A C ® / P
U s e w i t h A p p l e T V Through AirPlay on the VSSL A.1 you can connect a zone of your A.1 directly to an Apple TV. This is an easy way to get audio from the TV to in-ceiling speakers. However, this will only...
Page 18: L O C A L M U S I C L I B R A R
For the first time out of the box or after factory reset the A.1 device will update after the setup is complete in the Google Home app, if there is an update available.
Page 19: F A C T O R Y R E S E
You can reset your A.1 device to its factory default settings in two ways: Using a small pin, press and hold the reset button on the back of the A.1 for 5 seconds. The device status indicator will turn solid pink when successful and you can let go of the button.
Page 20 2. Under device settings you will see an option to restart the device. 3. You can also do a hard reset by toggling the power switch on the back of the A.1. R e s t o r e F a c t o r y D e f a u l t s You can restore the factory settings of your A.1 through the VSSL app.
Page 21: I M P O R T A N T S A F E T Y I N F O R M A T I O
V S S L A . 1 – Product Guide I M P O R T A N T S A F E T Y I N F O R M A T I O N 1. Read these instructions. 2.
Page 22: F C C S T A T E M E N
V S S L A . 1 – Product Guide F C C S T A T E M E N T This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
