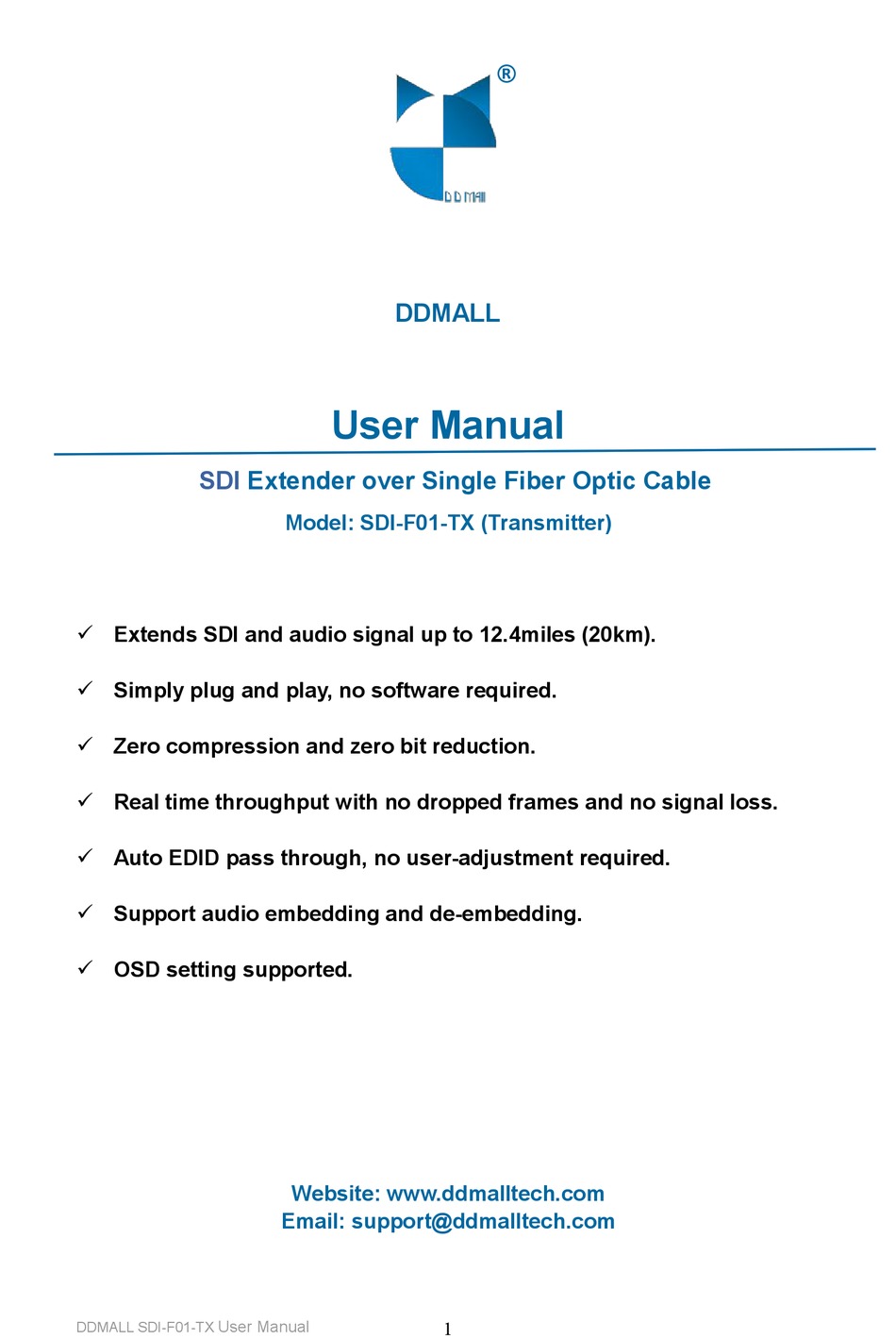

DDMALL
User Manual
SDI
Extender over Single Fiber Optic Cable
Model: SDI-F01-TX (Transmitter)
Extends SDI and audio signal up to 12.4miles (20km).
Simply plug and play, no software required.
Zero compression and zero bit reduction.
Real time throughput with no dropped frames and no signal loss.
Auto EDID pass through, no user-adjustment required.
Support audio embedding and de-embedding.
OSD setting supported.
Website: www.ddmalltech.com
Email: support@ddmalltech.com
User Manual
1
DDMALL SDI-F01-TX
Advertisement
Table of Contents
Summary of Contents for DDMALL SDI-F01-TX
- Page 1 ® DDMALL User Manual Extender over Single Fiber Optic Cable Model: SDI-F01-TX (Transmitter) Extends SDI and audio signal up to 12.4miles (20km). Simply plug and play, no software required. Zero compression and zero bit reduction. Real time throughput with no dropped frames and no signal loss.
- Page 2 1. I/O Connectors Figure 1 SDI-F01-TX Fiber Optic Transmitter I/O Connectors 2. Connection Introduction Figure 2 SDI-F01-TX Fiber Optic Transmitter Connection Note: Please connect one single-mode optical fiber to the SFP OUTPUT port to transmit fiber optic signal. Please note that the DIP switch function is not enabled.
- Page 3 receiver. 7. OSD Setting Step 1: Connect the SDI-F01-TX to the control computer by using DB9 pin RS232 female serial cable that comes with the item. Step 2: Put the USB flash driver into the control computer. Decompress the...
- Page 4 Image size is required to be less than 16K. Text should not exceed the software preview display. Image format is available in bmp, jpg and jpeg. Color setting is available in background and foreground. Details as shown in figure 4. DDMALL SDI-F01-TX User Manual...
- Page 5 Step 3: Set the color of the image. Step 4: Set the location and the size of image. Step 5: Select the magnification. Step 6: Click the Download button and the setting will come into effect immediately. Details as shown in figure 5. DDMALL SDI-F01-TX User Manual...
- Page 6 Step 3: Set the color of text. Step 4: Set the location and the size of image. Step 5: Select the magnification. Step 6: Click the Download button and the setting will come into effect immediately. Details as shown in figure 6. DDMALL SDI-F01-TX User Manual...
- Page 7 Enable OSD. If you would like to check the current sate of the item, please click the Load button. Important OSD information can be saved to the local computer through the configuration tool. DDMALL SDI-F01-TX User Manual...
