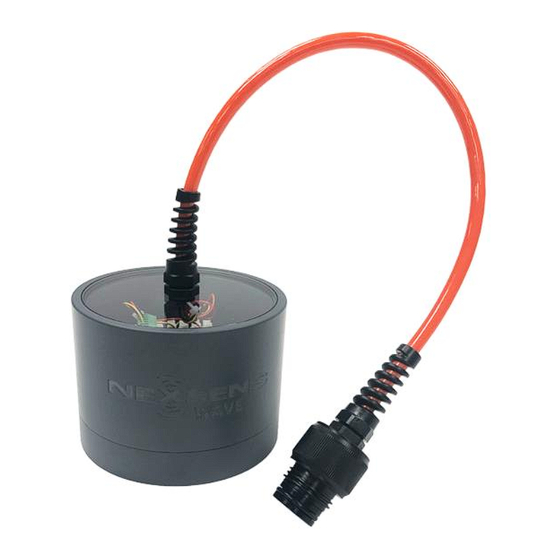

SeaView SVS-603 Wave Sensor
The Seaview SVS-603 wave sensor is a highly accurate MEMS-based sensor that
reports heading, wave height, wave period and wave direction via RS-232. A
custom housing allows for easy attachment to a NexSens X2-CB data logger.
SVS-603 Buoy Mounting
Locate the sensor mount at
the center of the X2-CB data
logger plate.
Quick Start Guide
Install the hex screws into the
holes using the included 3/16"
driver to secure the S500 to
the buoy plate.
1
Align the SVS-603 screw holes
with those of the mounting
base and gently press down.
2091 Exchange Court
Fairborn, Ohio 45324
937-426-2703
www.NexSens.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for SeaView SVS-603
- Page 1 SeaView SVS-603 Wave Sensor Quick Start Guide The Seaview SVS-603 wave sensor is a highly accurate MEMS-based sensor that reports heading, wave height, wave period and wave direction via RS-232. A custom housing allows for easy attachment to a NexSens X2-CB data logger.
- Page 2 SeaView SVS-603 Wave Sensor Quick Start Guide Data Logger Connection 1. Setup your data logger on WQData LIVE by: a. Following the Quick Start Guide included with your order. b. Visiting NexSens Knowledge Base | Data Logger | User Guides on the NexSens website.
