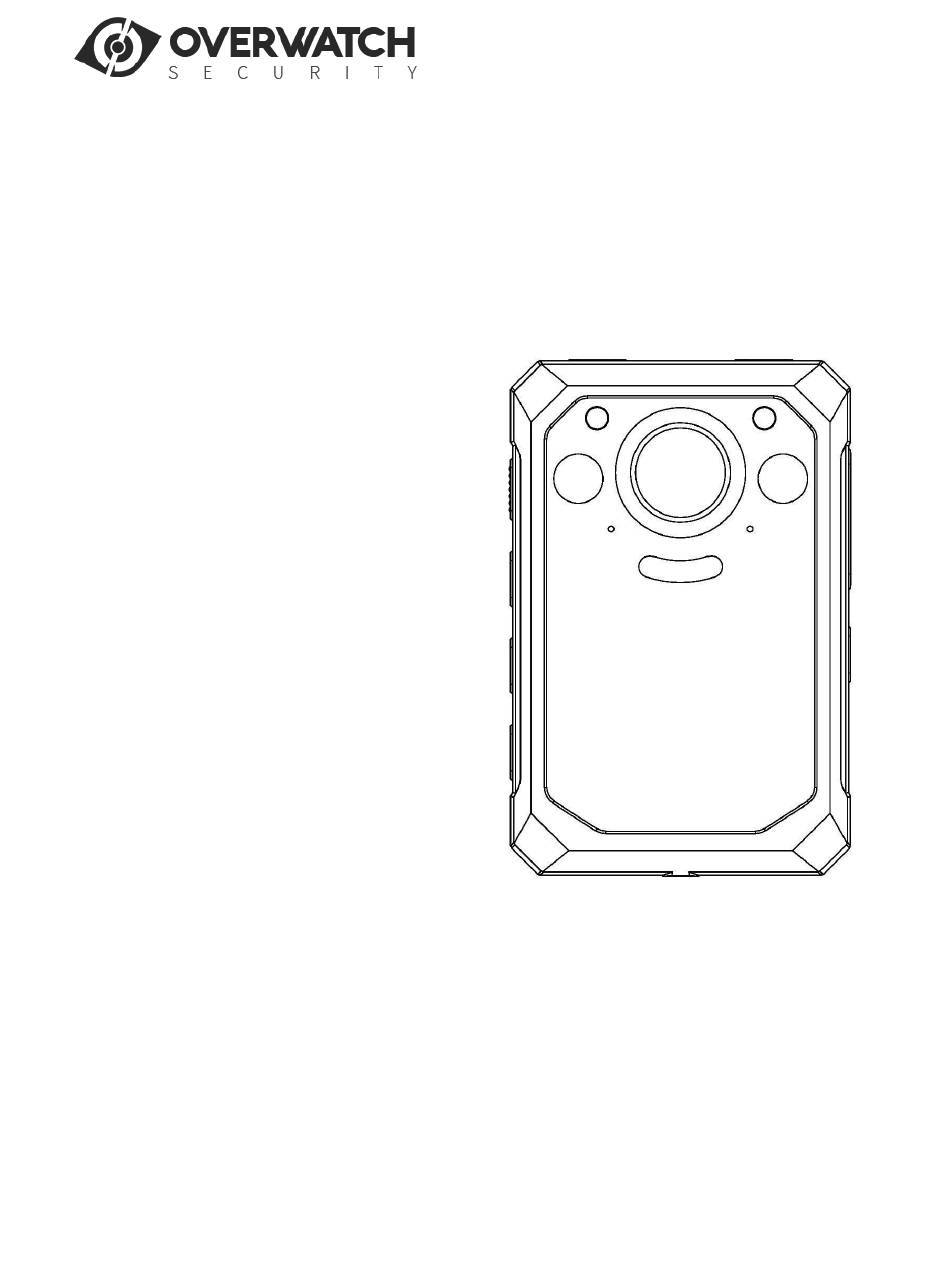

- Page 1 Body Camera User’s Manual XE22 USER MANUAL...
-
Page 2: Table Of Contents
Body Camera User’s Manual Table of Content Preface ................................Brief Introduction and Main Features ....................Buttons Description ..........................Interface Introduction ..........................Operations ..............................Operation for BodycamTool ......................... Operations for 4G BodyCamera Connection ................... Specification .............................. Packing List ............................... -
Page 3: Preface
Body Camera User’s Manual Preface Thank you for using OverWatch Security. This manual is applicable for the ‘XE22’ Body Camera. Please read the manual carefully before using the device. Please keep this manual for reference in the future. The content of this manual is subject to be changed without notice. -
Page 4: Brief Introduction And Main Features
Body Camera User’s Manual Brief Introduction and Main Features Brief introduction The body cameras are the portable devices that can record video and audio. The devices can also transmit live video and audio through 3G or 4G, do live tracking with GPS. The devices have a TFT monitor and buttons on it and user can operate the device easily. -
Page 5: Buttons Description
Body Camera User’s Manual Buttons Description... - Page 6 Body Camera User’s Manual Buttons Description Buttom Icon Action Function Short Press When device is ON, short press to turn on/off the screen. Power 1. When device is OFF, power on device when holding for over 3 seconds. Long press 2.
-
Page 7: Interface Introduction
Body Camera User’s Manual Indicator LED Indicator Colour Description ON：Charging complete Indicator 1 Blue Twinkling: Charging OFF：Not charging Twinkling slowly：Idle Green Twinkling faster: Face recognition is working ON: Live streaming or menu operating Indicator 2 Video recording in progress Yellow Audio recording in progress Interface Introduction... -
Page 8: Operations
Body Camera User’s Manual Operations Power On/Off When the device is OFF, holding the “Power” button for 3 seconds will turned on the device. When the device is ON, short press the “Power” button will turn On/Off the monitor, press and hold the “Power”... - Page 9 Body Camera User’s Manual In the “Photo” directory, there are directories named with time. Choose the picture file and press “OK” button to view the pictures. The picture format is JPG. 6.3 Play Audio In the “Audio” directory, there are directories named with time. Choose the audio file and press “OK”...
- Page 10 Body Camera User’s Manual 1440P 4/ 4M 3/ 3M 2 2M 1.5/ 1M 1512P 4/ 4M 3/ 3M 2 2M 1.5/ 1M The Live EncType is for live streaming compression, include H.264 and H.265 two options. • Theoretically, H.265 consumes 50% less data transmission than H.264 under the same picture quality.
- Page 11 Body Camera User’s Manual The GPS module is to turn on/off the GPS, when the GPS connected, the GPS icon will turn • green. LCD brightness is Used for controlling the monitor’s brightness. Given “High”, “Medium”, • “Low” 3 options. The setting of Autoscreen Off is for turning off screen automatically, when the setting is •...
-
Page 12: Operation For Bodycamtool
Body Camera User’s Manual The default laser setting is “disable”, which means that you can NOT turn on laser light by • pressing “IR/Laser” button, to turn on the laser you must change the setting to “enable”. When the password protect is ON, it needs you to enter the password to get into the •... - Page 13 Body Camera User’s Manual And then it will continue to install the USB driver, see the picture as below: Click “next” button to go on the driver’s installation, then the driver install successfully, click “Finish” to end the installation, see the picture as below. ◆...
-
Page 14: Operations For 4G Bodycamera Connection
Body Camera User’s Manual 2. In the first part we can see the “Enable USB Disk” button that means device’s memory can be read by PC, “Time Sync” means that device’s time can synchronize to your PC. Note those three setting “Reset to Default”/“Format Disk”/“Newpassword”, Once the factory settings are restored, the current settings saved will be restored to the factory default settings. - Page 15 Body Camera User’s Manual 1. Connect to the internet with 4G SIM card.(make sure “USB Mode” setting is Auto) a. Insert a available 4G SIM card into the BodyCamera’s card slot.(Refer the picture in page5) b. After you insert the 4G SIM card, device will do a self-detection to check if a SIM is there , once the device has connected to the internet, you can see a 4G signal icon on the screen, and the other “M”...
- Page 16 Body Camera User’s Manual 5. The operation of CMSV6 platform 5. 1 The Map a. The status of the device can be observed in the device list. Where the icon turns green that indicating the device is online and connected to the GPS to get the location information;...
- Page 17 Body Camera User’s Manual a. Start to preview the video: double click the device icon in the list to preview the video. b. The amount of screen for one page to preview, you can choose a proper one to preview video, see the icons: c.
- Page 18 Body Camera User’s Manual Close all video: To stop whole windows’ video Clear data: To clear the memory channel information for the current focus window Clear all data: To clear the memory channel information for the whole current window k. Full-screen button : To show the video with full- screen.
- Page 19 Body Camera User’s Manual b. After that, click the file options to see the files that the device recorded during that time period. c. Right click the mouse to select the file to download (press Ctrl to select multiple files), click on the “download”, when the files were downloaded, you can see the directory of the downloaded files in the download options, see the picture below.
