Videosec T1-1 User Manual

User Guide
Wall Mounted Touch Panel
Single Color / Dual Color / RGB / RGBW LED
Constant Voltage Controller
Wall mounted single color/dual color/RGB/RGBW LED controller T1-1/T2-1/T3-1/T4-1 is a full touch controller
with 4 channel constant voltage output, and offers fast and accurate color adjustment with unique design touch
color slide.

Feature

● Touch panel single color, dual color, RGB or RGBW PWM constant voltage controller.
● Ultra sensitive high strength glass touch panel with touch color slide in the middle and backlighting.
● Smooth and accurate color adjustment by touching the color slide.
● Adopt 2.4GHz wireless technology, remote distance up to 30m.
● Touch keys with chord tones and LED indicator.

Technical parameter

Model Input voltage Output signal Output current Output power
T1-1 12- 24VDC PWM 4CH,3A/CH 144-288 W
T2-1 12 - 24VDC PWM 4CH,3A/CH 144-288W
3CH,4A/CH
T3-1 12 - 24VDC PWM 144-288W
4CH,3A/CH
T4-1 12 - 24VDC PWM 144-288W

Match guide

Panel controller can match with RF remote by using power-up optionally.
1. Match: Switch off the power, then switch on power again,
short press on/off key or zone key 3 times on the RF remote quickly within 5s after power on,
the link is done once the light blinks 3 times.
2. Delete: Switch off the power, then switch on power again,
short press on/off key or zone key 5 times on the RF remote quickly within 5s after power on,
the unlink is done once the light blinks 5 times.
3. Multiple zone remote only use zone key to match each zone receiver.

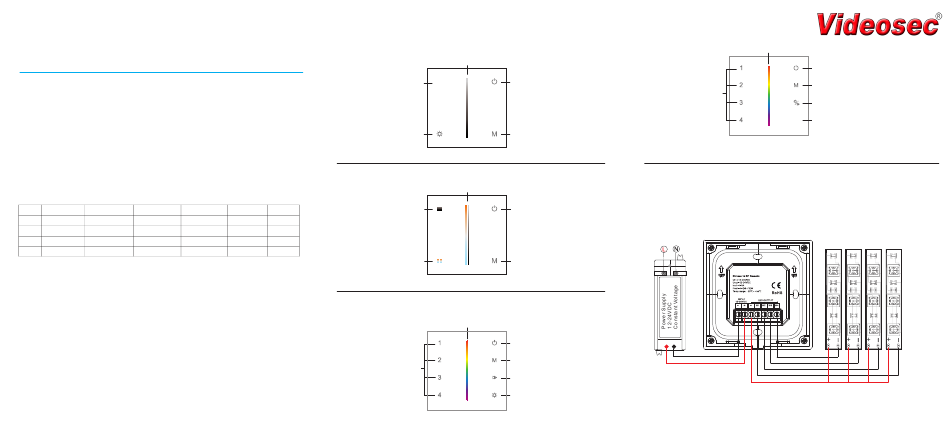

Key function

● Single color panel
Turn off light after 20s.
Brightness,10 levels.
● Dual color panel
Brightness,10 levels.
Light type Size(mm)
Single color 86x86x35
Dual color 86x86x35
RGB 86x86x35
RGBW 86x86x35
Color temperature,10 levels.
● RGB panel
4 Scenes,
short press recall scene.
Long press to save the
current color into 1/2/3/4.
Brightness slide
20 Turn on/off light.
S
Delay Off Power
Play dynamic mode,6 level speed.
Bright Mode
T1-1
Color / Brightness slide
Turn on/off light.
DIM Power
Play dynamic mode,6 level speed.
CCT Mode
T2-1
Color slide
Turn on/off light
Scene Power
Short press play 10 built-in mode,
Scene Mode long press run mode-cycle.
Adjust dynamic mode speed,10 levels.
Scene
Speed
Adjust brightness, 10 levels.
Scene Bright
T3-1
RGBW panel
●
Color slide
Turn on/off light.
Scene Power
4 Scenes,
Short press play 10 built-in mode,
short press recall scene. Scene Mode long press run mode-cycle.
Long press to save the
current color into 1/2/3/4. Adjust dynamic mode speed
Scene
Brt/Speed or static color brightness,10 levels.
Short press turn on/off W channel,
W
Scene White long press adjust W channel brightness.
T4-1
Note: After touch power key to turn off light, long press power key for 5 seconds will turn on or turn off tone.
Wiring diagram for PWM output
T1-1 Single color panel
●
AC110-230V
T1-1
Single color LED strip x 4
