Summary of Contents for Bass Face BFC10.1

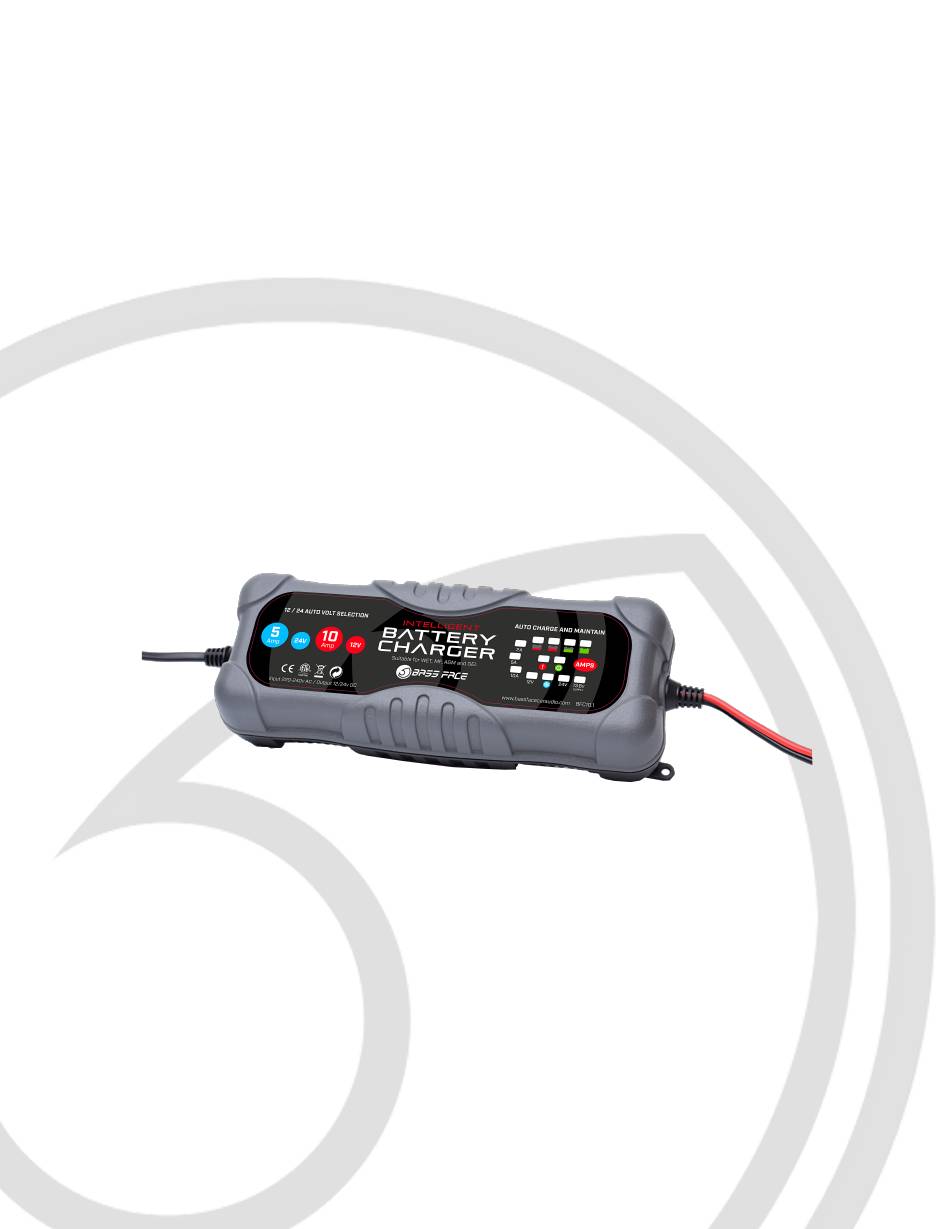

- Page 1 BASSFACE BFC10.1 2/5/10 Amp 12/24 Volt Microprocessor Controlled Smart Battery Charger and Power Supply Instruction manual...
-
Page 2: Product Features
Thank you for choosing Bassface. We pride ourselves on making quality products and with our R&D team we are always working on refinements to ensure the customer gets the best quality products. At the foot of this manual there is a section containing important safety instructions. Please ensure this is read/understood/followed. - Page 3 Controls and functions Selection Button Charging Indicator Levels Charging Amp Indicator 24V Battery Power Light Indicator Battery fault Indicator 12V Battery AGM, sub-zero Temp Indicator Indicator 13v Power Source Indicator Upon connection of a battery in workable order the Bassface charger will automatically detect the voltage of the battery and default to a 2 Amp charge rate.
- Page 4 Operating Instructions – Please read carefully Connect the terminal rings/clamps directly to the corresponding connectors on the battery posts. Note: Make sure correct polarity connection before plugging in the AC power. Position the RED terminal on the POSITIVE post connector Position the BLACK terminal on the NEGATIVE post connector Connect the AC power cord with the AC power outlet.
-
Page 5: Maintenance Charge
For a 12V battery 2A slow charge, 5A medium charge and 10A fast charge rate is selectable. For a 24V battery 2A slow charge or 5A medium charge rate is selectable. Absorption Use of a constant high current for extended periods of time risks gassing the battery, therefore a constant low charging current is given at 1.5A to raise voltage from 28.2V to 28.8V (for 24V battery) and 14.1V to 14.4V (for 12V battery). - Page 6 Power source The Bassface charger has a unique power supply mode. This especially comes handy when changing batteries on your vehicle to retain 12v to the cars computer system. To active the function on you would need to connect the charger to the mains, without a battery connected press and hold the Amps button for 3~5 seconds.
- Page 7 Never attempt to jump start or charge a frozen battery. When working with lead acid batteries, always make sure immediate assistance is available in case of accident or emergency. Always wear protective eyewear when using this product. Contact with battery acid may cause blindness and/or severe burns.
-
Page 8: Technical Data
Technical Data Input Voltage 220v AC,50hz Output Voltage 12v DC & 24v DC (auto detection) Efficiency >75% Charging Voltage 14.4v +- 0.25v or 28.8+- 0.25v Charging Current +- 10% - 10amp, 7.5amp, 5amp, 4amp, 2amp and 1.5amp -10°C to +40°, Reduced output power for higher temperatures Ambient Temp Battery Types 12v &...
