This quick start guide explains how to quickly set up and activate your McAfee
Load Balancer. The SFP+ (Small Form-factor Pluggable) Gigabit Ethernet fiber ports are used.
The SFP+ modules are bundled along with your XC-240 device.
All product documentation referenced in this quick start guide is found on the McAfee Service Portal.

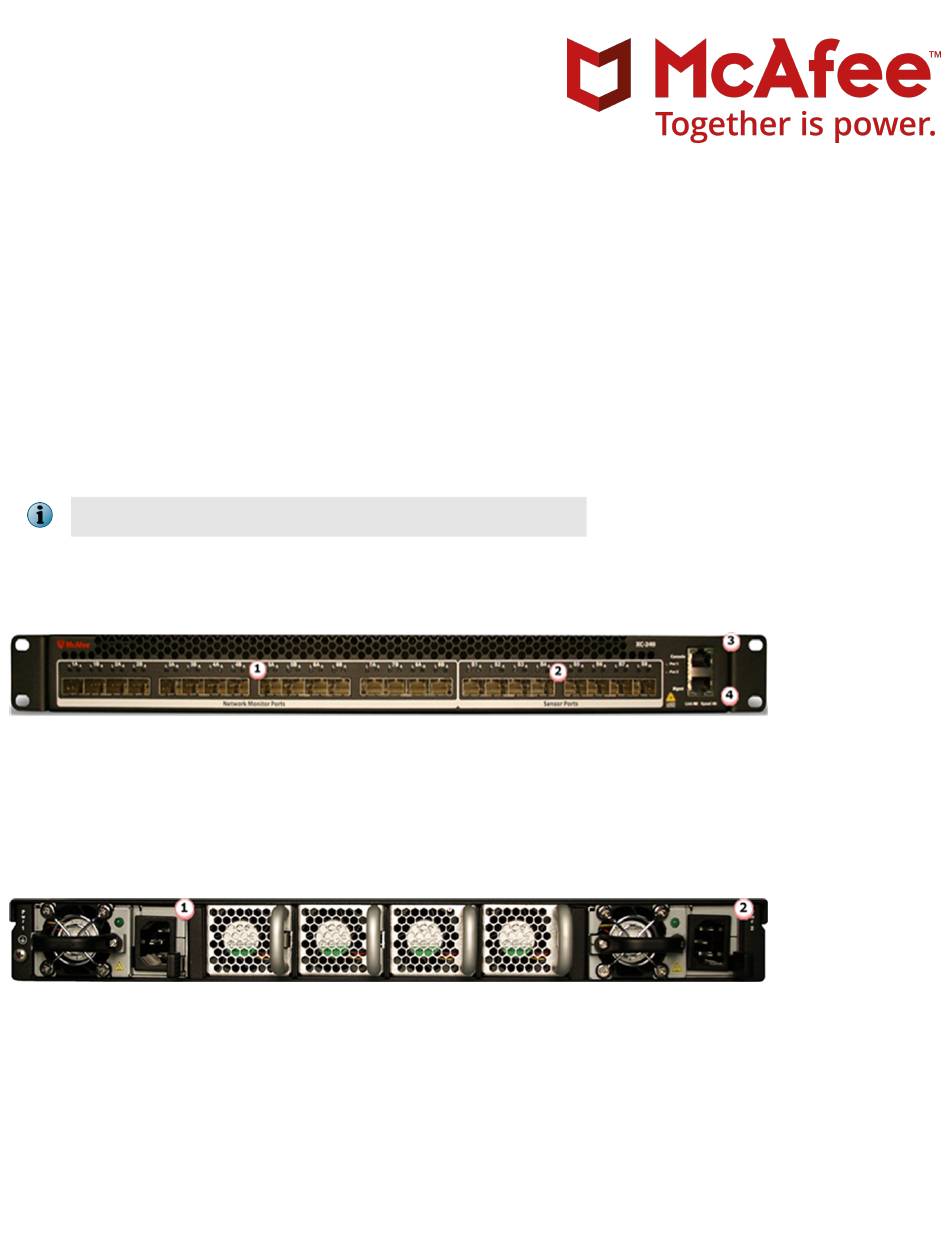

The XC-240 front panel
SFP+ 10 Gigabit Ethernet Monitoring ports (16)
1
SFP+ 10 Gigabit Sensor ports (8)
2
Console port (1)
3
10/100/1000 Management port (1)
4
The XC-240 rear panel
Power supply 1
1
Power supply 2
2
XC-240 Load Balancer setup overview
This section explains how to position and cable the various ports of your XC-240. This section also briefly explains
how to install the Manager and then add the XC-240 to the Manager.
McAfee Network Security Platform
(XC-240 Quick Start Guide)
Network Security Platform XC-240
®
Revision F
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for McAfee XC-240
Summary of Contents for McAfee XC-240
- Page 1 Power supply 2 XC-240 Load Balancer setup overview This section explains how to position and cable the various ports of your XC-240. This section also briefly explains how to install the Manager and then add the XC-240 to the Manager.
- Page 2 Stop Bits: 1 • Number of Bits: 8 • Control Flow: None • Parity: None Plug the power cable into the power inlet and plug the other end into a power source. The XC-240 ships with standard U.S. power and international cables.
- Page 3 This procedure describes how to connect the M-8000XC Sensor to the XC-240 Load Balancer. Plug the fiber cable appropriate for use with the SFP+ module into the Sensor port of the XC-240. Connect the other end of the fiber cable used in a into a 10G monitoring port, for example port 1A of the...
- Page 4 To configure an IPv4 address, type sysip set ipaddr=<IP address> mask=<netmask> gw=<gateway>, where <ip address> is the IPv4 address for XC-240, <netmask> is the netmask, and <gateway> is the IP address of the gateway. To configure an IPv6 address, type sysip inet6_set ipaddr=<IP address>...
- Page 5 The SNMP agent is disabled by default. To enable and configure the SNMP agent: At the prompt, type snmp set admin=<enable>. To add the Manager IP to the XC-240, at the prompt type snmp trap_add name=<SNMP user configured on the NSM while adding the XC-240> authProto=<authentication protocol>...
- Page 6 Log on to the Manager. The default Login ID is admin and the default Password is admin123. Click Configure. To add an XC-240 in the Manager, click Device List | Devices and then click New. Update information in the appropriate fields and click Save.
- Page 7 Password should match the ones configured in Step 8d. Add an XC Cluster To add an XC Cluster: To create an XC Cluster at least one M-8000XC Sensor and one XC-240 Load Balancer should have been added. Click Device List | XC Clusters and then click New.
- Page 8 Copyright © 2019 McAfee, LLC McAfee and the McAfee logo are trademarks or registered trademarks of McAfee, LLC or its subsidiaries in the US and other countries. Other marks and brands may be claimed as the property of others.
