Super Bright LEDS EPL-NW100 User Manual

Important: Read all instructions prior to installation.

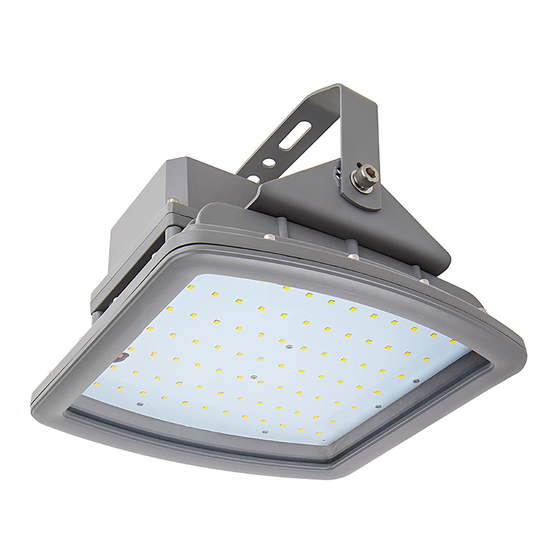

100W Explosion Proof Light
Summary
Explosion-proof lighting is critical in environments where volatile
flammable liquids or flammable gases and vapors are present. This
LED explosion-proof light is safe to use in Class 1, Div 2 locations,
such as oil refineries, paint booths, fuel and chemical storage areas,
and grain processing plants. The waterproof flood light has a vibration-
resistant die cast aluminum housing and tempered glass lens to
protect internal components and is designed to last.

Specifications

Installation:
EPL-NW100
Replacement For 250 Watt HID
Total Power Consumption 100 Watts
Operating Voltage Range 120~277 VAC
Beam Angle 120 degree
Operating Temperature -22~122°F (-30~50 °C)
IP Rating IP68
LED Lifetime 50,000 Hours
Fixture Weight 16.5lbs (7.5Kg)
Warranty 5 Year
Installation
Warnings
• This product should be installed by a fully certified electrician in
accordance with local building and electrical codes. Electrician
should be familiar with operation of the product and the hazards
involved.
• Due to risk of electric shock, ensure that the main power source and
circuit breakers are switched off before performing any installation
or wiring procedures. All electrical connections must be in 3/4" NPT
conduit or pipe.
• Failure to properly support the fixture during installation may cause
damage or injury, for which the manufacturer is not responsible.
Ensure the mounting method chosen will support the weight of the
fixture.
Mounting
The EPL-NW100 offers several mounting options including ceiling,
pole, pendant, and wall mounting. Ceiling and wall applications are
mounted using the adjustable swivel mount bracket included with unit.
Pendant and pole mounting applications are mounted from the ceiling
or railing and are suspended by a rigid pipe via the 3/4" NPT hub on
the back of the fixture. Wiring is fed through rigid pipe to the junction
box and tied in to the fixture's power wires. See examples of mounting
to the right.
- Fixture is equip with Bracket
- Connection outlet : NPT 3/4"
- Conduit and pole is not included in products.
Installation:
Rev Date: V1 08/08/2016
4400 Earth City Expy, St. Louis, MO 63045
STANDARD
844
5yr
User Manual
Installation:
Installation:
Mounting Examples
U-Bracket Ceiling Mount
Pole Mount
- Fixture is equip with Bracket
- Connection outlet : NPT 3/4"
- Conduit and pole is not included in products.
- All installation must conduct by qualify electri
Mounting option Available:
No. Model No.
1 CES-J40S
2 CES-J100
- Fixture is equip with Bracket
Part Number:
EPL-NW100
WIFI-CON
Installation:
Pendant Mount
Wall Mount
U-Bracket Wall Mount
Option Available
A, B, C, D, F, G
866-590-3533 superbrightleds.com
- Fixture is equip with Bracke
A, B, C, D, E, F, G
- Connection outlet : NPT 3/4
