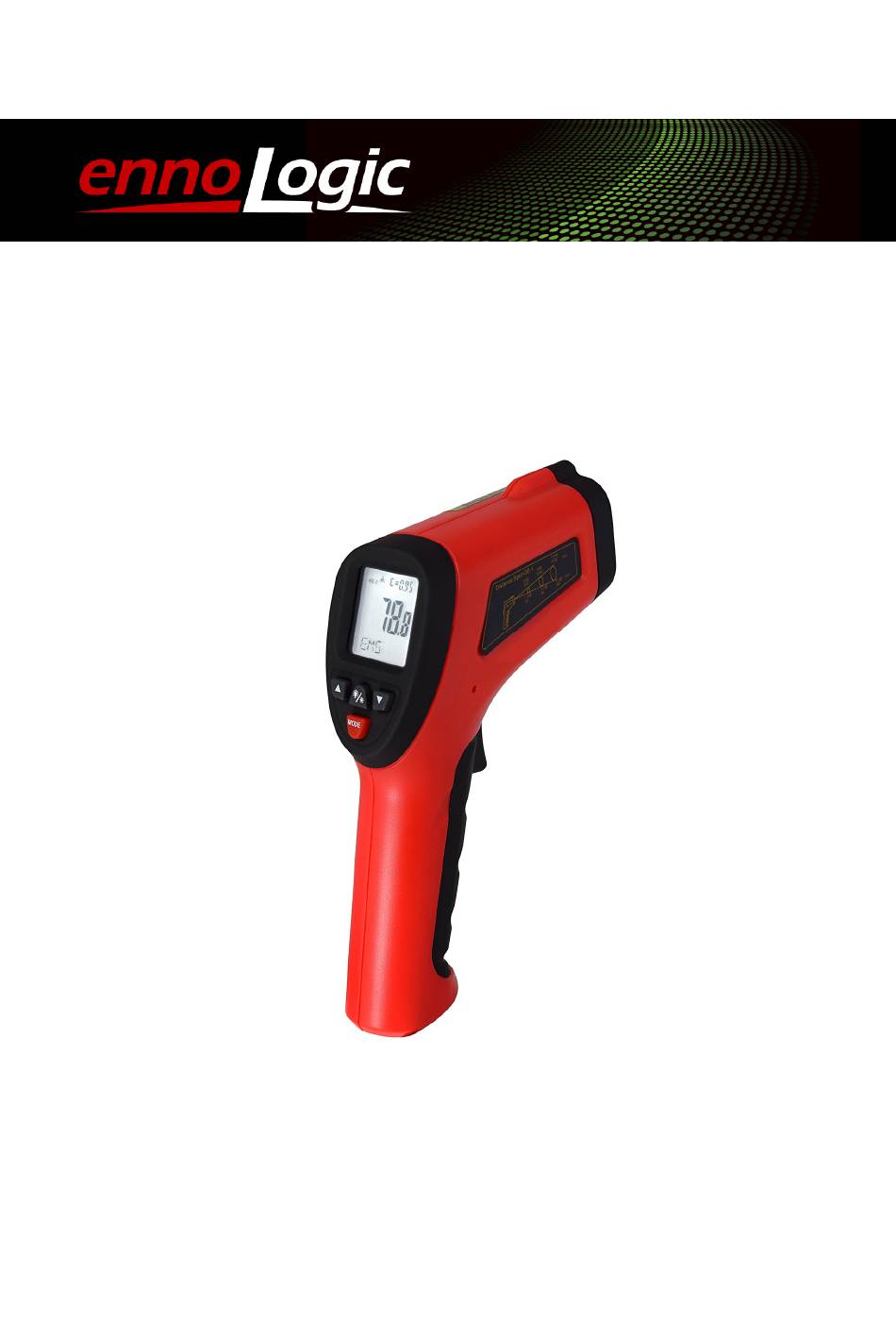

- Page 1 High Temperature Laser Infrared Thermometer eT1600S User Manual...
- Page 2 Version 1.4. Revised 4/3/2018. © 2018 ennoLogic . All rights reserved. ® https://ennologic.com...
-
Page 3: Table Of Contents
Table of Contents Important Notes, Safety Considerations and Disclaimer – Please Read ........1 Instrument Description .......... 3 LCD Display ..............4 Battery ................5 How to Use Your IR Thermometer ....... 5 Switching Temperature Units ........6 Auto Shut Off and Lock ..........6 Laser Pointer and Backlight ......... -
Page 4: Important Notes, Safety Considerations And Disclaimer - Please Read
High-Temperature Laser Infrared Thermometer ennoLogic eT1600S Thank you for purchasing the ennoLogic High ® Temperature Laser Infrared Thermometer eT1600S, a high- quality instrument with many advanced features. The thermometer accurately measures temperatures of surfaces by sensing the emitted thermal radiation of the surface. It is also capable of making contact temperature measurements with the included Type K thermocouple. - Page 5 High-Temperature Laser Infrared Thermometer ennoLogic eT1600S Laser Notice No. 50, dated June 24, 2007. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device...
-
Page 6: Instrument Description
High-Temperature Laser Infrared Thermometer ennoLogic eT1600S Instrument Description Main User Elements 1. Laser Pointer (AVOID EXPOSURE - Laser radiation is emitted from this aperture) 2. Infrared Sensor 3. Trigger Button 4. Battery Cover 5. LCD Display 6. Keypad 7. Type K Thermocouple Probe... -
Page 7: Lcd Display
High-Temperature Laser Infrared Thermometer ennoLogic eT1600S LCD Display Selected Emissivity Laser pointer ON indicator SCAN: continuous measurement HOLD: last value is displayed Temperature display LOG mode indicator MODE indicator Numeric display for mode functions and Thermocouple temperature display Celsius or Fahrenheit... -
Page 8: Battery
High-Temperature Laser Infrared Thermometer ennoLogic eT1600S Battery The unit is powered by a 9V battery (NEDA 1604A or IEC 6LR61, or equivalent). The battery compartment is located inside the handle, covered by a black lid that is hinged at the base of the unit. To open the lid, find the two indents adjacent to the trigger button and slide a fingernail behind the lid at the indent to pull it open. -
Page 9: Switching Temperature Units
High-Temperature Laser Infrared Thermometer ennoLogic eT1600S dIF or AVG, the small numeric display in the bottom right corner will also update. See MODE Functions for more detail. When you release the trigger button, the last reading will remain on the display. The SCAN icon will change to HOLD. -
Page 10: Distance To Spot Size Ratio
High-Temperature Laser Infrared Thermometer ennoLogic eT1600S remembered after the thermometer turns off. Both laser and backlight reduce the battery lifetime. Distance to Spot Size Ratio The distance-to-spot ratio of the infrared thermometer is 20:1. This means that the spot diameter at a distance of 20 inches is 1 inch (25.4 mm). -
Page 11: Mode Functions
High-Temperature Laser Infrared Thermometer ennoLogic eT1600S MODE Functions The red MODE button can be used to cycle through a number of advanced features of the instrument. These features are explained below. Maximum, Minimum, and Average Temperature (MAX, MIN, and AVG) and MAX-MIN Difference (dIF) -
Page 12: Emissivity (Ems)
High-Temperature Laser Infrared Thermometer ennoLogic eT1600S Emissivity (EMS) The emissivity ε is displayed in the top right corner of the LCD display (e.g. ε=0.95). To change it, press the MODE button until the mode indicator changes to EMS. Then use the UP and DOWN buttons to select the desired emissivity in 0.01 unit increments (range 0.10 to 1.00.) - Page 13 High-Temperature Laser Infrared Thermometer ennoLogic eT1600S surface with an accurate contact thermometer (or the included Type K probe) and then adjust the emissivity setting of your IR thermometer until its reading matches the temperature reported by the contact thermometer. You can then use the emissivity for subsequent measurements of the same material.
-
Page 14: Log Feature (Log)
High-Temperature Laser Infrared Thermometer ennoLogic eT1600S Quartz Glass 0.93 Rubber, black 0.95 Sand 0.90 Skin, human 0.98 Snow 0.80 Soil 0.92 - 0.95 Steel, oxidized 0.75 Steel, polished 0.07 Tape, electrical, black 0.97 Tile 0.97 Water 0.95 - 0.98 Wood 0.86 - 0.90... -
Page 15: Measurements With Type K Thermocouple Probe (Tk)
High-Temperature Laser Infrared Thermometer ennoLogic eT1600S Measurements with Type K Thermocouple Probe (TK) Insert the Type K thermocouple probe into the socket at the base of the instrument. Bring the thermocouple probe tip into contact with the object to be measured. Turn on the instrument by pressing the trigger button. -
Page 16: Specifications
High-Temperature Laser Infrared Thermometer ennoLogic eT1600S Specifications Temperature Range Infrared -50°C to 1600°C (-58°F to 2912°F) Measurements Thermocouple -50°C to 800℃ (-58°F to 1472℉) Measurements Temp. Resolution 0.1°C (0.1°F) Optical Resolution 20:1 Distance to Spot Size Ratio Accuracy of IR <0℃: ±3℃/5.5°F... - Page 17 High-Temperature Laser Infrared Thermometer ennoLogic eT1600S Advanced Features Hi/Lo audible alarms (adjustable), Min/Max/Average display, stores last settings in between uses, 20-value log, Type K Thermocouple Probe Operating Temp. 0°C to 50°C, RH 10% to Conditions Storage Conditions Temp. -20°C to 50°C, RH 10% to Size 179 x 91 x 42 mm (7.0 x 3.6 x 1.6...
